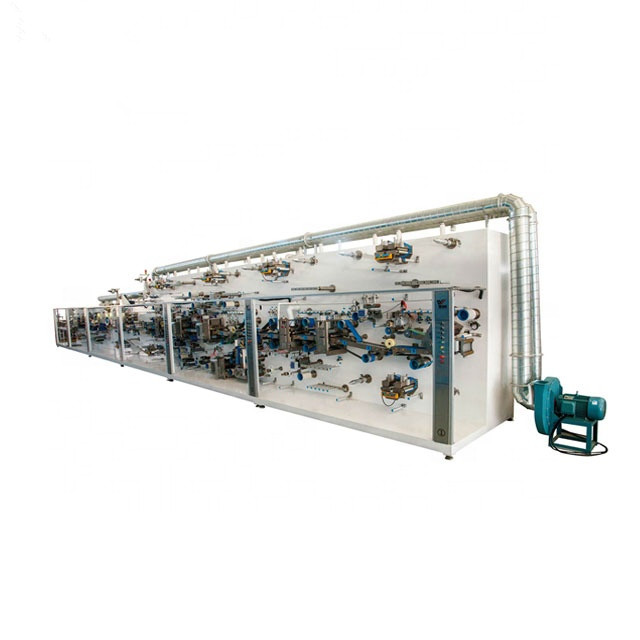

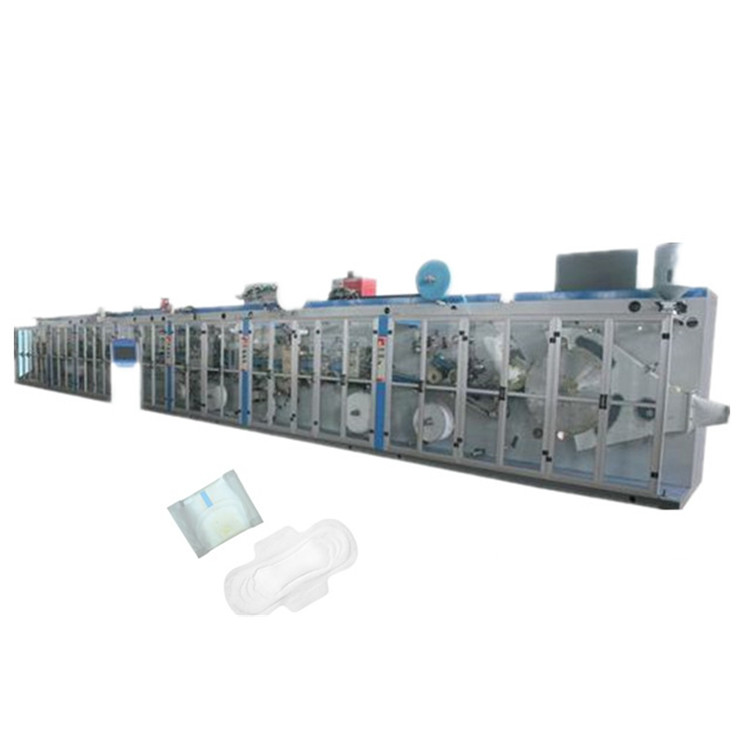

Cost-Efficient Super Absorption Sanitary Napkin Machinery
Model Number: HM-231026-SNM-09
Key Specifications / Features
Discover our Cost-Efficient Super Absorption Sanitary Napkin Machinery, featuring an automatic system with an optimal speed of 700 pieces per minute. This machinery is equipped with tension unwinding and constant tension control to ensure precise and efficient production of high-absorbency sanitary napkins.
Detail Information
| Subject | Parameter |
| Stable Working Speed | 300-700pcs/min (By order) |
| Pass Percentage | ≥98% |
| Operating Rate | ≥85% |
| Power Supply | 380V 50Hz |
| Electrical Supply | 380V ±5%, 50Hz Three-phase four-wire + ground wire |
| Power Installed | About 180KW (Not included hot melt glue machine) |
| Supply Pressure | 0.6-0.8Mpa |
| Machine Sizes (L× W× H ) | 22.0m× 5.5m× 3.5m(L× W× H )(Only for reference) |
| Main Engine Sizes (L× W× H ) | 32m× 9.0 5.0m (L× W× H ) ( Only for reference) |
| Machine Color | Customerized |
Configuration:
| Configuration | |
| Product Structure | Carrier Tissue, Fluff Core (Mix with SAP), Topsheet(3-PCS structure), ADL, Backsheet, Back Release Paper, Wings Release Paper, Pouch Film |
| Product Size | Daytime use: 240mm Night use: 285mm (Customized Design) |
| Control System | PLC Programming control, HMI operation |
| Tension System | Carrier tissue, absorbent paper, topsheet N.W., leg cuffs N.W., ADL, PE film, Back release paper, Wings Release Paper, pouch film A&B shaft active unwinding by inverter motor |
| Drive System | Full servo drive. Using import conveyor and timing belt. Important Part using import bearing. |
| Safety System | Safety guard installed at the operating side, equipped with emergance stop switch, security identifier. Driven side is equipped with safety pull wire |
