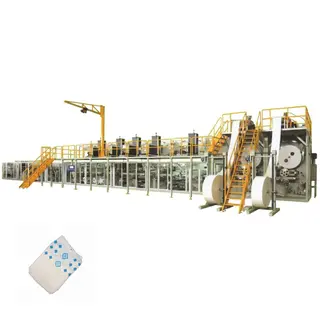

Automatic Corrosion Resistance Adult Diaper Production Line

Name: Automatic Corrosion Resistance Adult Diaper Production Line
SKU: HM-231028-ADM-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our adult diaper production line is designed for long-lasting performance with corrosion-resistant components. This automatic system is equipped with a user-friendly PLC control system that operates seamlessly on the touch screen interface. With a design speed of 300 pieces per minute, it ensures efficient and reliable production.

Request a quote

Detail Information

Overall Size	33M8M4.5M
Machine Size	31M2.2M4.5M
Design Speed	300pcs/min
Stable Work Speed	180(Auto)-250(Full sero)pcs/min
Product Yield	≥97%
Powere Source	380V, 50HZ
Machine Capacity	About 400KW
Air Pressure	0.6-0.8Mpa
Machine Weight	About 105T

Configuration

1. Product structure: Leg cuff N.W., Topsheet N.W., Fluff core (with SAP), Side tape, Elastic Waistband, Frontal tape, Backsheet.
2. Product size: M: 680*450mm, L: 800*650mm, XL: 950*760mm
3. Contral system: PLC control system, operating on the touch screen, man-machine interface.
4. Tension system: Leg cuff N.W., Topsheet N.W., elastic waistband, upper & down tissue, backsheet are A&B shaft active unwinding by inverter motor.
5. Drive system: Servo Drive (Easy to change size), timing belt and flat belt are imported products, and all the key parts are using imported bearings.
6. Safety system: It has safety device on the operating side, matched with urgent stop switch. High audio fan uses sound insulation or silencer.
7. Packing way: Equipped with the stacker at the request of client.
8. Materials corrective system: Germany BST automatic web guide system (optional)
