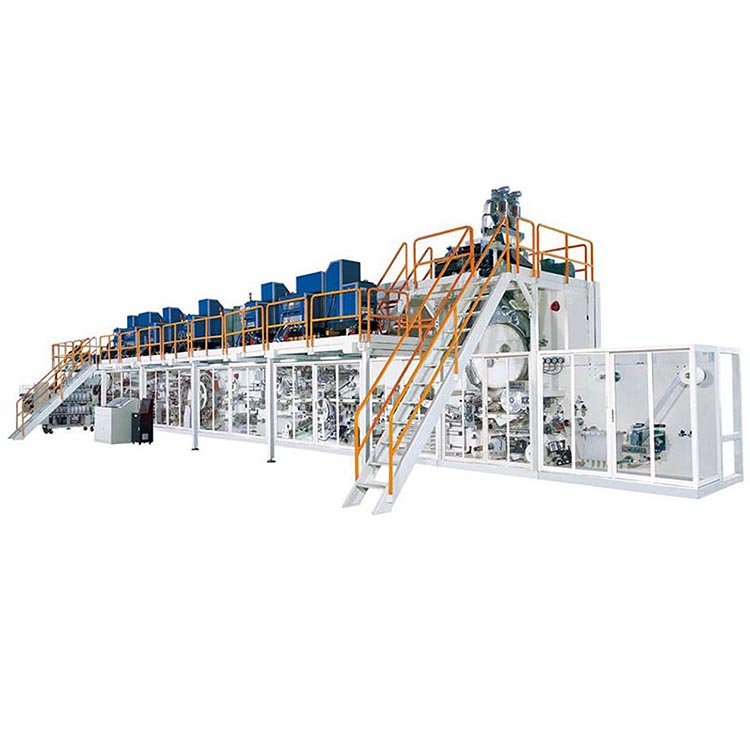

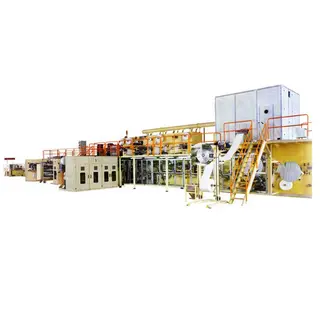

3-Shaft Drive Elastic Waistband Adult Diaper Making Machine
Model Number: HM-231028-ADM-16
Key Specifications / Features
Our elastic waistband adult diaper making machine is a top choice for your production needs. It features a reliable 3-shaft drive system, ensuring stability during operation. With a design speed of 300 pieces per minute, this machine offers efficient and high-speed production.
Detail Information
3-Shaft Drive Elastic Waistband Adult Diaper Making Machine
| Overall Size | 33M*8M*4.5M |
| Machine Size | 31M*2.2M*4.5M |
| Design Speed | 300pcs/min |
| Stable Work Speed | 180(Auto)-250(Full servo )pcs/min |
| Product Yield | ≥97% |
| Powere Source | 380V，50HZ |
| Machine Capacity | 400KW |
| Air Pressure | 0.6-0.8Mpa |
| Machine Weight | 105T |
| Main Parameter | |
| PRODUCT STRUCTURE | SAP core, hydrophobic nonwoven(leak guard), topsheet nonwoven, ADL, spandex, back sheet, tapes, elastic waistband, front tape. |
| PRODUCT SIZE | M : 680mmx650mm L : 800mmx650mm XL : 950mmx760mm |
| CONTROL SYSTEM | PLC control system, Operating on the touch screen, Configure HDTV monitor |
| TENSION SYSTEM | Tension unwinding equipped, constant tension control with buffer system, automatic web guide system. The unwinding system ensure materials stable working at full speed splice, minimize the impact on materials tension force, to reduce the time of stop machine. |
| DRIVE SYSTEM | 3-shaft drive/Full servo, timing belt and flat belt are imported products, and all the key parts use imported bearings. |
| SAFETY SYSTEM | It has safety device on the operating side, matched with urgent stop switch, high audio fan uses sound insulation or silencer. |
| PACKINGWAY | Packing with request of the client. |
| MATERIALS CORRECTIVE SYSTEM | Germany BST automatic web guide system(optional). |
