GSKT,SPW,316,CS,316,CL150,1in
Model Number: HX-GASKET
Key Specifications / Features
GSKT,SPW,316,CS,316,CL150,1in

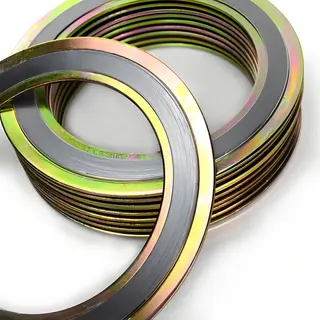

Spiral wound gaskets
Design spec ASME B16.20
Design spec, flange(s) ASME B16.5
Pressure designation CL 150
Mat, windings STAINLESS STEEL 316
Mat, filler GRAPHITE
Mat, inner ring STAINLESS STEEL 316
Mat, centring ring CARBON STEEL
Mandatory add reqrmts NACE MR0175
Size, pipe, nominal 25 mm
Spiral wound gaskets
Design spec ASME B16.20
Design spec, flange(s) ASME B16.5
Pressure designation CL 150
Mat, windings STAINLESS STEEL 316
Mat, filler GRAPHITE
Mat, inner ring STAINLESS STEEL 316
Mat, centring ring CARBON STEEL
Mandatory add reqrmts NACE MR0175
Size, pipe, nominal 25 mm
Detail Information
Type: Spiral Wound Gasket，Ring type joint gasket, Flat gasket, , Insulation gasket
Standard: ASME B16.20,B16.21，ASME B16.5/B16.47
Material: Graphite, PTFE/Teflon,CS,SS304,SS316,monel alloy, soft iron,G10,G11...
Specification: 1/2”-48” (We also can produce as per client drawing for special size.)
Class rating: CL150-CL2500,3000PSI,5000PSI,10000PSI,PN2.5,PN6,PN10,PN25,PN40,PN63,PN100
Surface treatment: Oiled coated to prevent rust, galvanized
Marking: As per standard & customer's requirements
Packing: By carton or plywood box
