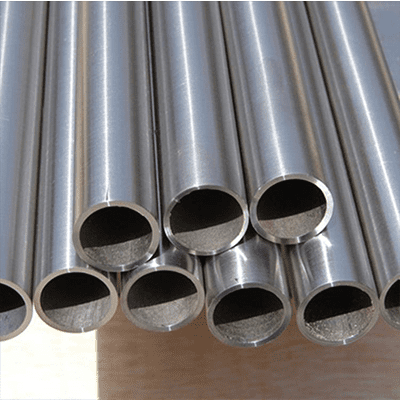

ASTM A192 Cold Rolled Cold Drawn Seamless Low Carbon Steel Tube for Boiler or Heat Exchanger

Name: ASTM A192 Cold Rolled Cold Drawn Seamless Low Carbon Steel Tube for Boiler or Heat Exchanger
SKU: HX-TUBE-106
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Manufacturer of ASTM A192 Cold Rolled Cold Drawn Seamless Low Carbon Steel Tube for Boiler or Heat Exchanger

Request a quote

Detail Information

Standard: AASTM A192
Steel Grades: A179 A192 A210-A1 A210-C
Size Range: OD:12.7mm TO 220mm. WT: 2.11mm To 25.4mm
Manufacturing Process : Cold Drawn , Cold Rolled
Application:Tubes are used in boiler ,heat exchanger ,and superheater Etc.
Packing: External Black Painting ,Both Side With End Caps, In Bundles by Steel Strips,Covered by Waterproof.

Standard	Steel Grade	Chemical components							Mechanical performance
Standard	Steel Grade	C	Si	Mn	P、S	Cu	Ni	Mo	Tensile Strenght (Mpa）	Yield Strenght (Mpa)	Elongation (%)
ASTM A179	A179	0.06～0.18	／	0.27～0.63	≤0.035	／	／	／	≥325	≥180	35
ASTM A192	A192	0.06～0.18	≤0.25	0.27～0.63	≤0.035	／	／	／	≥325	≥180	35
ASTM A210	A210A1	≤0.27	≥0.10	≤0.93	≤0.035	／	／	／	≥415	≥255	≥30
ASTM A210	A210-C	≤0.35	≥0.10	0.29～1.06	≤0.035	／	／	／	≥485	≥275	≥30

Standard	Outside Diamater	OD Tolerance	Wall Thickness	Wall Thickness Tolerance
ASTM A179 ASTM A192 ASTM A210	≤25.4mm	±0.10mm	All Thickness	+20% -0%
	25.4mm-38.1mm	±0.15mm	All Thickness	+20% -0%
	38.1mm-50.8mm	±0.20mm	All Thickness	+22% -0%
	50.8mm-63.5mm	±0.25mm		+22% -0%
	63.5mm-76.2mm	±0.30mm		+22% -0%
	76.2mm-101.6mm	±0.38mm		+22% -0%
	101.6mm-190.5mm	+0.38mm -0.64mm		+22% -0%
	190.5mm-228.6mm	+0.38mm -1.14mm		+22% -0%
