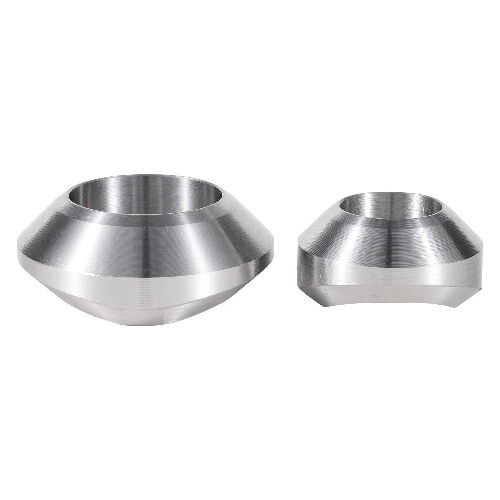

ASTM A105 ASME B16.11 Pipe Fitting Weld Olet
Model Number: HX- Olet- 32
Key Specifications / Features
China ASTM A105 Olet, ASME B16.11 Olet, Pipe Fitting Olet, Weld Olet, Olet
Contact Supplier
Detail Information
Product Type: Weldolet
Manufacture Method: forging
Size: 1/2”-56”(DN15-DN1400) * SCH10-SCH XXS
Connecting type: BW,SW,NPT,BSPT
Threads type: NPT,FNPT,MNPT, BSPT
Standard: ASME B16.11
Material: ASTM A105
Surface treatment: Oiled , Galvanized
Marking: As per standard & customer's requirements
Packing: Plywood box for small size, and plywood pallet for big size
Manufacture Method: forging
Size: 1/2”-56”(DN15-DN1400) * SCH10-SCH XXS
Connecting type: BW,SW,NPT,BSPT
Threads type: NPT,FNPT,MNPT, BSPT
Standard: ASME B16.11
Material: ASTM A105
Surface treatment: Oiled , Galvanized
Marking: As per standard & customer's requirements
Packing: Plywood box for small size, and plywood pallet for big size
| Chemical Composition and Mechanical Property For ASTM A105 | |||||||||||||||
| Steel Grade | Chemical Composition | Hardness | Mechanical performance | ||||||||||||
| C(Max) | Mn | P(Max) | S(Max) | Si | Cu(Max) | Ni(Max) | Cr(Max) | Mo(Max) | V(Max) | HB, max | Tensile strength | Yield Strength | |||
| (Min） | (Min) | ||||||||||||||
| psi | Mpa | psi | Mpa | ||||||||||||
| A105 | 0.35 | 0.6-1.05 | 0.035 | 0.04 | 0.1-0.35 | 0.4 | 0.4 | 0.3 | 0.12 | 0.12 | 187 | 70000 | 485 | 36000 | 250 |
