UL CUL DLC Listed LED Tube

UL CUL DLC certified LED Tube is specially designed for North America market. It uses 2835 SMD LED as light source. We apply built-in led driver to enable highest quality and safety.

The UL/CUL and DLC listed LED Tube is specially designed for USA and Canada market with supreme quality. The tube has wide beam angle of 270º. It's made of high quality Epistar 2835 SMD LED, aluminum PCB, aluminum light body, PC cover and quality built-in LED driver. So far it has been widely used in many applications such as commercial lighting for offices, restaurants, hotels, warehouses, parking lots, shopping malls, etc..

Features:

Supreme quality, UL,CUL, FCC, DLC certified
Aluminum housing + PC cover
Epistar 2835 SMD LED, up to 125Lm/W, CRI >80
270º Wide beam angle
High quality LED driver
Power Factor (PF)≥0.9
Low thermal resistance, Super low degradation
Wide input Voltage: AC100V~277V
Working temperature: -20°C～45°C
Easy mounting: working without electronic ballast or starter
80% Energy-saving over fluorescent tubes
50,000+ hours lifetime
Instant start without Flickering
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation
3+ years warranty

Dimensions:











Technical datas:

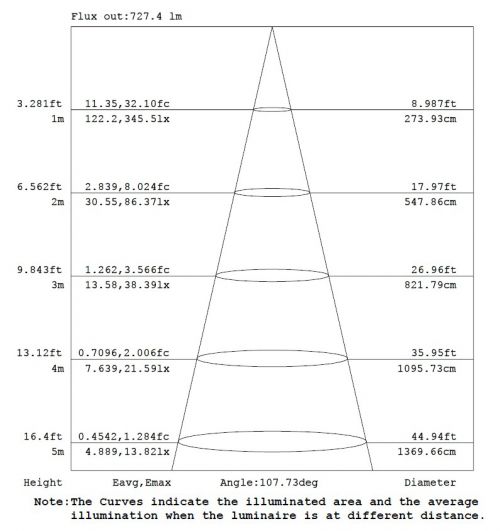

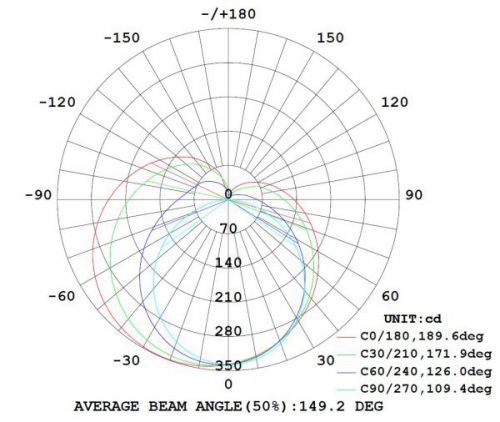

Luminous Intensity Distribution:​

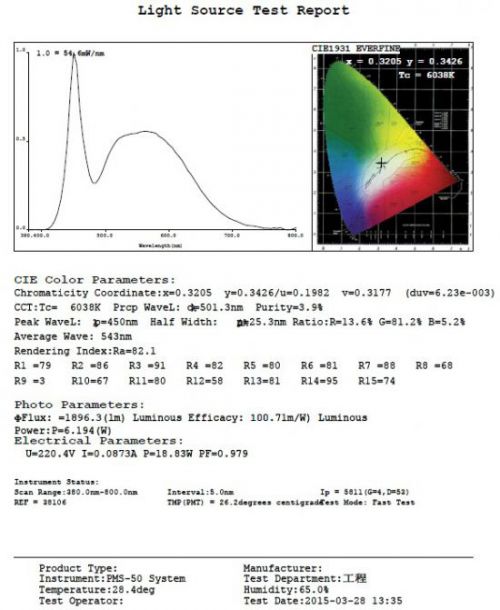

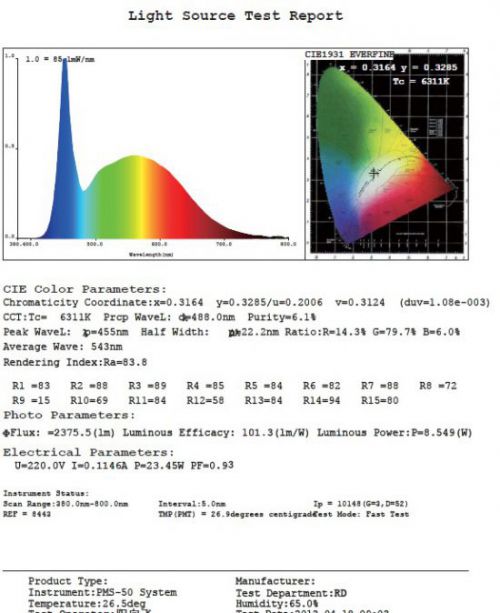

Photoelectric Test Report:



Installation:

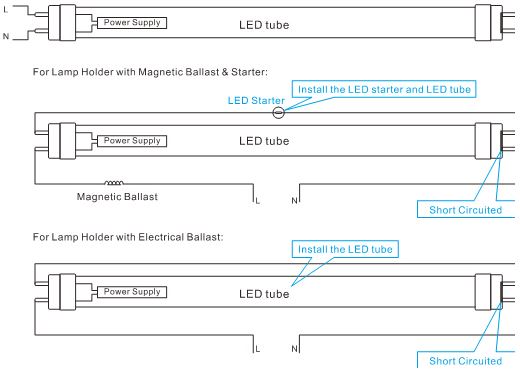

Installation of One Side Power in Tube:

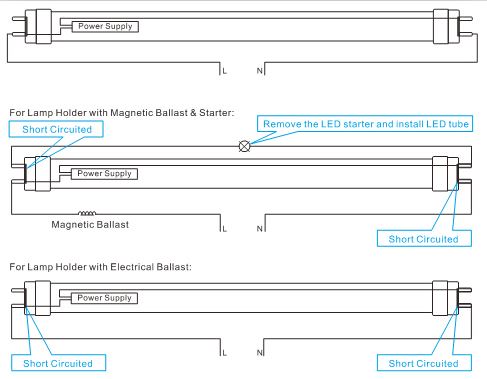

Installtion of Both Sides Power in Tube:




Packaging:

0.6m LED tube:
Carton size: 67*23*23CM
Quantity: 25pcs per carton
G.W.: 6kg/carton

1.2m LED tube:
Carton size: 127*23*23CM
Quantity: 25pcs per carton
G.W.: 10kg/carton

1.5m LED tube:
Carton size: 157*23*23CM
Quantity: 25pcs per carton
G.W.: 14.8kg/carton

Attentions:

Working environment: -20℃ to 45℃
Work without ballast
Indoor application only
