UL CUL DLC certified LED Panel Light

UL/CUL DLC certified Flat LED Panel Light 2*2Feet  1*4Feet  2*4Feet 36~60W

The LED panel light is designed for North American market with UL, CUL, certified. The side emitting technology created concise appearance, excellent uniform light as well as glare-free viewing effect. This new LED panel light can be merged into various decoration styles to build a comfortable and bright living or working environment, so it can be widely used in commercial and residential lighting, typically indoor Lighting in Schools, Universities, Hospital, Conference Room, Show Rooms, Factories, Offices, Chain Stores, Supermarkets, Metro Station, Underground Parking lots and so on.


Features:

Ultra-thin: 9.3mm thickness
Epistar 2835 SMD LED, CRI>80
High efficacy: up to 125 Lm/Watt
Uniform light output, instant start, No flickering
Aluminum alloy housing, PMMA light guide plate, PC diffuser
Protection grade IP42; Insulation class II.
High efficiency Constant current LED driver, PF>0.95, AC85-265V Input
Over 50,000 hours actual lifespan, Energy saving
UL/CUL, DLC, FCC certified, DLC4.0 Standard
3 years solid warranty (5 Years warranty upon request)
0~10V Dimmable

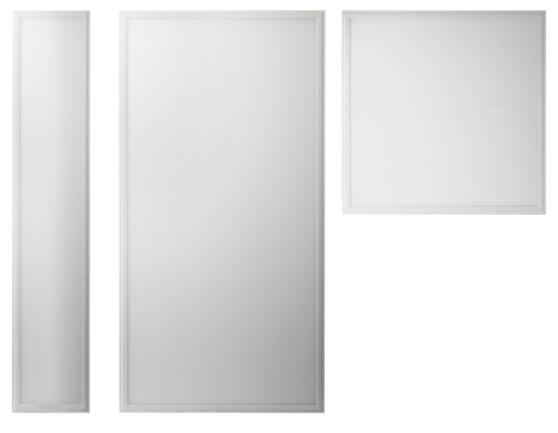

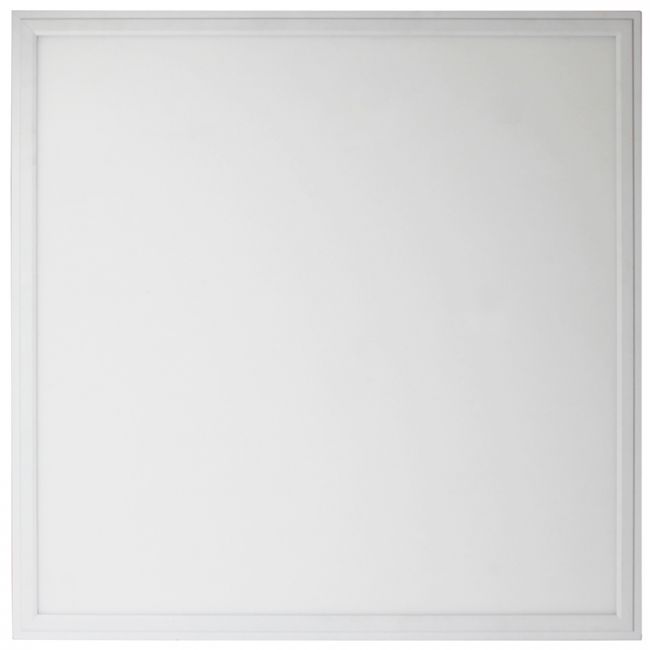

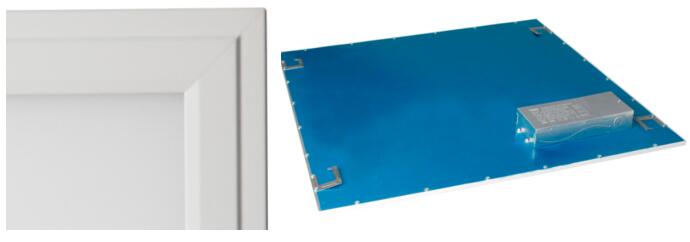

Photos:

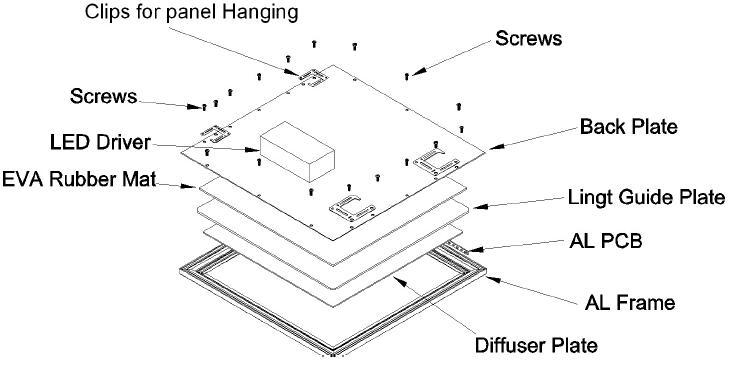

Product Structure:



Technical datas:

Ambient temperature:-20°C~45°C, Surface temperature: 42°C~45°C;  Relative humidity 10%-80%RH.


Length	Model	Color	Size (mm)	Voltage /Current	Power (W)	Lumens (LM)
2*2 Feet	PNL2835UL3-600x600-36/40	3000/3500/ 4000/5000K	602*602*9.3	DC30-42V 900/1000mA	36W/ 40W	4500Lm 5000Lm
2*2 Feet	PNL2835UL3-600x600-50	3000/3500/ 4000/5000K	602*602*9.3	DC30-42V 1200mA	50W	6250Lm
1*4 Feet	PNL2835UL3-1200x300-36/40	3000/3500/ 4000/5000K	302*1212*9.3	DC30-42V 900/1000mA	36W/ 40W	4500Lm 5000Lm
2*4 Feet	PNL2835UL3-1200x300-45/50	3000/3500/ 4000/5000K	602*1212*9.3	DC30-42V 1100/1200mA	45W/ 50W	5625Lm 6250Lm
2*4 Feet	PNL2835UL3-1200x300-60	3000/3500/ 4000/5000K	602*1212*9.3	DC30-42V 1400mA	60W	7500Lm

Installation:

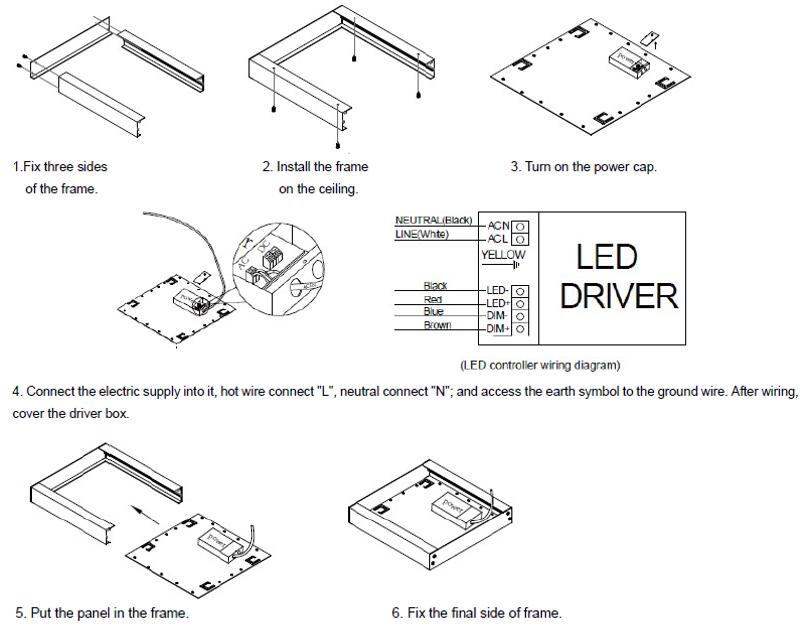

A. Ceiling installation

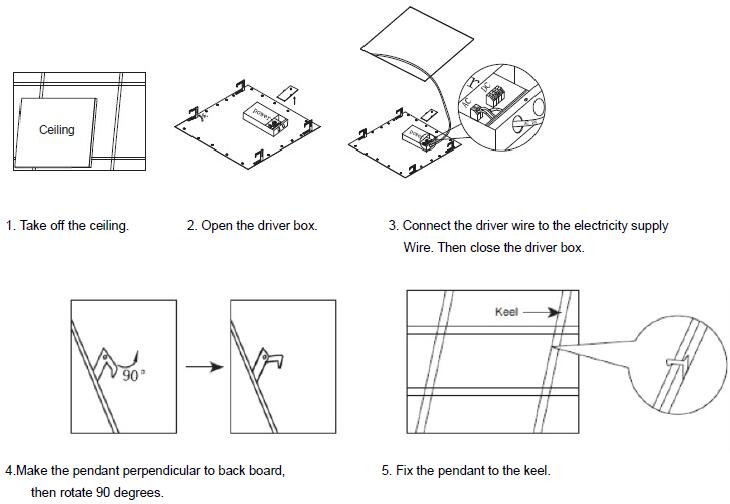

B. Embedded installation

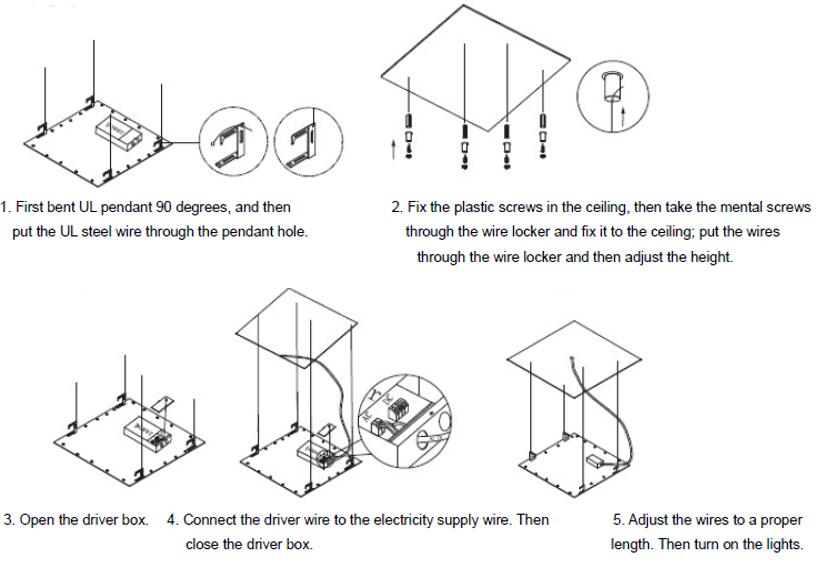

C. Hanging on the ceiling


Packaging:


Model	Inner Box Size	Carton Size	Q'ty/CTN	G.W.
602*602mm	645*100*670MM	660*225*670MM	4PCS/Carton	22kg
302*1212mm	1260*100*370MM	1280*225*390MM	4PCS/Carton	24.8kg
602*1212mm	1260*100*670mm	1280*225*690mm	4PCS/Carton	42.5kg
