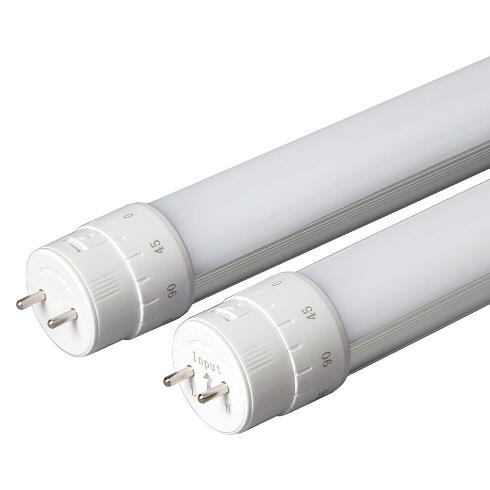

TUV SAA approved T8 LED Tube
Model Number: T8-TUV120W20
Key Specifications / Features
TUV and SAA approved LED T8 Tube light is extremely safe for wide applications. Uses 2835 SMD LED as light source with 125LM/W high efficiency. Our new safer design apply built-in isolated power driver to enable highest quality and safety.
Detail Information
Features:
TUV, SAA, CE, RoHS safety certification approved
Cap rotatable 270º
Super bright: up to 125LM/W
Built-in isolated power supply of high quality
Epistar 2835 SMD LED: High luminous efficiency
140º beam angle, Color rendering Index (CRI)≥80
3 years warranty
6063 Aluminum alloy body
High-grade PC cover with high light transmittance (>95%)
Transparent and frosted PC cover available
High quality aluminum PCB with better heat dissipation
Power Factor (PF)≥0.95
Wide voltages available: AC85V-277V
Low thermal resistance, Super low degradation
No dark area
Ambient temperature:-20℃~40℃, surface temperature: 42℃~45℃
Easy mounting: working without electronic ballast or starter
80% Energy-saving over fluorescent tubes
50,000+ hours lifetime
Instant start without Flickering
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation
Dimensions:
Technical datas:
600mm LED tube
1200mm LED tube
1500mm LED tube
Installation:
Installation of One Side Power in Tube:
Installtion of Both Sides Power in Tube:
Packaging:
0.6m LED tube:
Carton size: 67*23*23CM
Quantity: 25pcs per carton
G.W.: 6kg/carton
1.2m LED tube:
Carton size: 127*23*23CM
Quantity: 25pcs per carton
G.W.: 10.5kg/carton
1.5m LED tube:
Carton size: 157*23*23CM
Quantity: 25pcs per carton
G.W.: 14.8kg/carton
Applications:
Commercial lighting for offices,restaurants,hotels,warehouses,parking lots,shopping malls;
Display lighting for the articles in stores and shops.
Attentions:
Working environment: -20℃ to 45℃
Work without ballast
Indoor application only
TUV, SAA, CE, RoHS safety certification approved
Cap rotatable 270º
Super bright: up to 125LM/W
Built-in isolated power supply of high quality
Epistar 2835 SMD LED: High luminous efficiency
140º beam angle, Color rendering Index (CRI)≥80
3 years warranty
6063 Aluminum alloy body
High-grade PC cover with high light transmittance (>95%)
Transparent and frosted PC cover available
High quality aluminum PCB with better heat dissipation
Power Factor (PF)≥0.95
Wide voltages available: AC85V-277V
Low thermal resistance, Super low degradation
No dark area
Ambient temperature:-20℃~40℃, surface temperature: 42℃~45℃
Easy mounting: working without electronic ballast or starter
80% Energy-saving over fluorescent tubes
50,000+ hours lifetime
Instant start without Flickering
No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation
Dimensions:
| Standard Length | Dimension (mm) | |||
| A (MAX) | B (MAX) | C (MAX) | D (MAX) | |
| 0.6M | 590 | 597 | 604 | 26 |
| 1.2M | 1198 | 1206 | 1213 | 26 |
| 1.5M | 1500 | 1507 | 1514 | 26 |
Technical datas:
600mm LED tube
| Model | Length (Feet/Meter) |
Diameter (mm) |
LED QTY | Watt (W) |
Operating Voltage |
Color and Kelvin Tc (K) |
Lumens (Lm) |
| T8-TUV060W10WW -2835 | 2 FT / 0.6M | 26mm | 60 | 10W | AC85-277V | Warm White (2800K-3200K) |
950±5% |
| T8-TUV060W10CW -2835 | 2 FT / 0.6M | 26mm | 60 | 10W | AC85-277V | Commercial White (4000-4500K) |
1150±5% |
| T8-TUV060W10PW -2835 | 2 FT / 0.6M | 26mm | 60 | 10W | AC85-277V | Pure White (5500K-6500K) |
1250±5% |
1200mm LED tube
| Model | Length (Feet/Meter) |
Diameter (mm) |
LED QTY | Watt (W) |
Operating Voltage |
Color and Kelvin Tc (K) |
Lumens (Lm) |
| T8-TUV120W18WW-2835 | 4 FT / 1.2M | 26mm | 120 | 18W | AC85-277V | Warm White (2800K-3200K) |
1950±5% |
| T8-TUV120W18CW-2835 | 4 FT / 1.2M | 26mm | 120 | 18W | AC85-277V | Commercial White (4000-4500K) |
2100±5% |
| T8-TUV120W18PW-2835 | 4 FT / 1.2M | 26mm | 120 | 18W | AC85-277V | Pure White (5500K-6500K) |
2250±5% |
| Model | Length (Feet/Meter) |
Diameter (mm) |
LED QTY | Watt (W) |
Operating Voltage |
Color and Kelvin Tc (K) |
Lumens (Lm) |
| T8-TUV120W20WW-2835 | 4FT / 1.2M | 26mm | 120 | 20W | AC85-277V | Warm White (2800K-3200K) |
2200±5% |
| T8-TUV120W20CW-2835 | 4FT / 1.2M | 26mm | 120 | 20W | AC85-277V | Commercial White (4000-4500K) |
2320±5% |
| T8-TUV120W20PW-2835 | 4FT / 1.2M | 26mm | 120 | 20W | AC85-277V | Pure White (5500K-6500K) |
2500±5% |
1500mm LED tube
| Model | Length (Feet/Meter) |
Diameter (mm) |
LED QTY | Watt (W) |
Operating Voltage |
Color and Kelvin Tc (K) |
Lumens (Lm) |
| T8-TUV150W22WW-2835 | 5 FT / 1.5M | 26mm | 150 | 22W | AC85-277V | Warm White (2800K-3200K) |
2450±5% |
| T8-TUV150W22CW-2835 | 5 FT / 1.5M | 26mm | 150 | 22W | AC85-277V | Commercial White (4000-4500K) |
2600±5% |
| T8-TUV150W22PW-2835 | 5 FT / 1.5M | 26mm | 150 | 22W | AC85-277V | Pure White (5500K-6500K) |
2800±5% |
| Model | Length (Feet/Meter) |
Diameter (mm) |
LED QTY | Watt (W) |
Operating Voltage |
Color and Kelvin Tc (K) |
Lumens (Lm) |
| T8-TUV150W25WW-2835 | 5 FT / 1.5M | 26mm | 156 | 25W | AC85-277V | Warm White (2800K-3200K) |
2750±5% |
| T8-TUV150W25CW-2835 | 5 FT / 1.5M | 26mm | 156 | 25W | AC85-277V | Commercial White (4000-4500K) |
2900±5% |
| T8-TUV150W25PW-2835 | 5 FT / 1.5M | 26mm | 156 | 25W | AC85-277V | Pure White (5500K-6500K) |
3150±5% |
| Model | Length (Feet/Meter) |
Diameter (mm) |
LED QTY | Watt (W) |
Operating Voltage |
Color and Kelvin Tc (K) |
Lumens (Lm) |
| T8-TUV150W30WW-2835 | 5 FT / 1.5M | 26mm | 182 | 30W | AC85-277V | Warm White (2800K-3200K) |
3350±5% |
| T8-TUV150W30CW-2835 | 5 FT / 1.5M | 26mm | 182 | 30W | AC85-277V | Commercial White (4000-4500K) |
3500±5% |
| T8-TUV150W30PW-2835 | 5 FT / 1.5M | 26mm | 182 | 30W | AC85-277V | Pure White (5500K-6500K) |
3700±5% |
Installation:
Installation of One Side Power in Tube:
Installtion of Both Sides Power in Tube:
Packaging:
0.6m LED tube:
Carton size: 67*23*23CM
Quantity: 25pcs per carton
G.W.: 6kg/carton
1.2m LED tube:
Carton size: 127*23*23CM
Quantity: 25pcs per carton
G.W.: 10.5kg/carton
1.5m LED tube:
Carton size: 157*23*23CM
Quantity: 25pcs per carton
G.W.: 14.8kg/carton
Applications:
Commercial lighting for offices,restaurants,hotels,warehouses,parking lots,shopping malls;
Display lighting for the articles in stores and shops.
Attentions:
Working environment: -20℃ to 45℃
Work without ballast
Indoor application only
