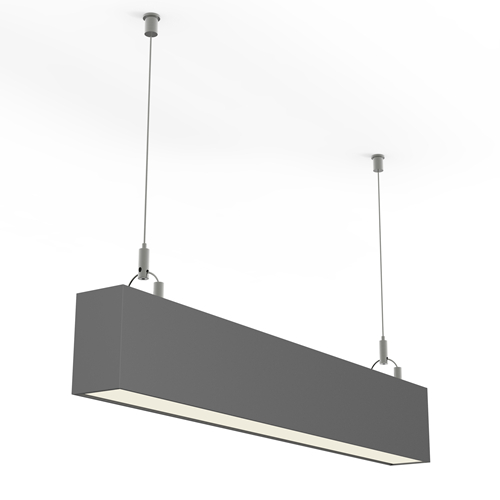

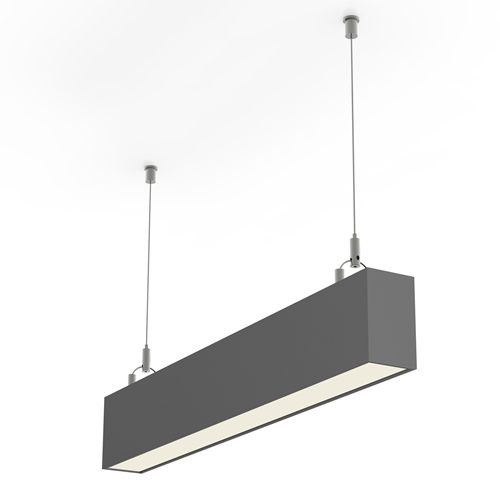

Suspended LED Linear Light Pendant fixture

The Suspended LED Linear Light uses extruded aluminum profile, Epistar 2835 LEDs and imported PC diffuser. Recessed mounting, pendant mounting and surface mounting available.

Suspended LED Linear Light Pendant fixture

Description:

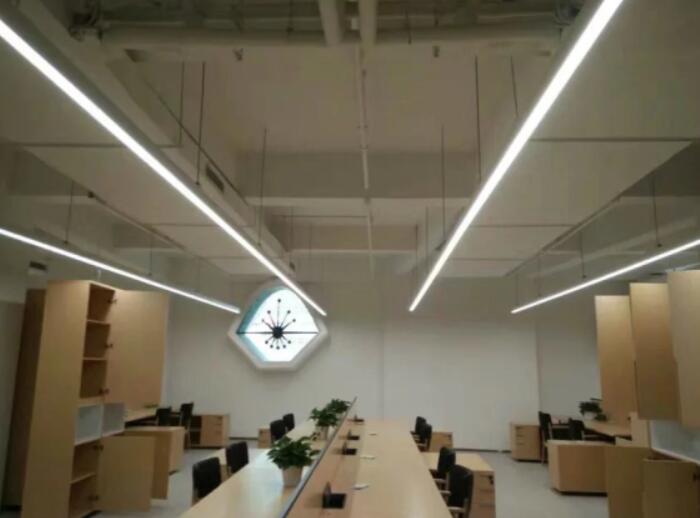

The linear light uses 6063 extruded aluminum profile as lamp housing, die-cast aluminum end cap and imported polycarbonate diffused cover. With branded Epistar 2835 LEDs and imported PC diffuser, it gives precise and uniform light distribution without any visible light dots. Three mounting means available: recessed mounting, pendant mounting and surface mounting. It can be connected to any length without light leaking. It can be recessed mounted trim-less by using our customized mounting clips. This LED pendant linear luminaire can be widely used in office lighting, shopping mall lighting, school lighting and other lighting applications in public areas.

Features:
Constant current solution for the whole lamp
36W as full load power
High efficiency illumination
White paint, black paint and anodized aluminum silver available
Beautiful appearance

Specifications:
Model:  LL-AL4880
Working Temperature: -25℃~+65℃
Dimension: 1200*48*80mm
Driver: Built-in
Light Source: Epistar 2835 / Al Substrate
Mains Voltage: 100-277V
Solution: Constant Current
Working Voltage: 25-40V
Power (Full Load) : 36W
Material Housing: Paint Aluminum
End Caps: Die-cast Aluminum
CCT: 5000K/4000K/3000K
Color: White / Black / Silver
CRI: 80
Cover: PC
Luminous Flux: 3600lm
Installation: Pendant
Protection Grade: IP52
Accessories: Drop Cords (1.5m)
Beam Angle: 120°
Lifetime: >50000h
