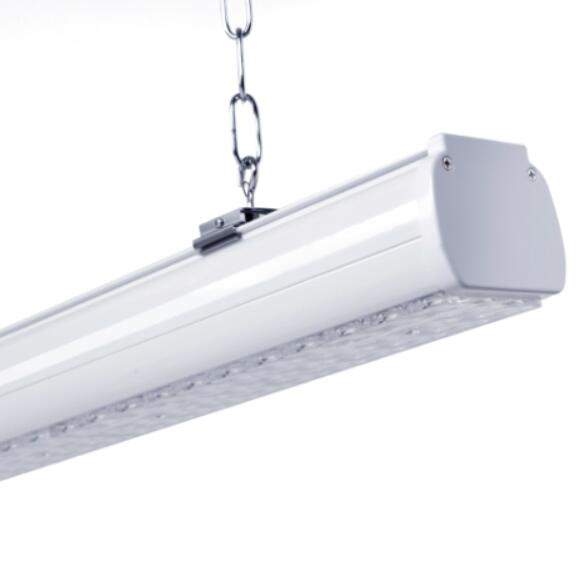

Modular Series LED Linear light

The Modular series LED linear, with over 9000LM light output, is designed to replace 2x58W or 2x36W T8 fluorescent fixtures. Various lights can be connected seamlessly to over 100m continuously. By adopting PMMA optical lens, various beam angles are available. It’s 100% anti-glare and there’s very even light output without dark area.Various Dimming available: 0-10V dimming, PWM dimming and DALI dimming.

Features:

Super bright
Over 9000LM light output, perfect for lighting in space with over 5M height.

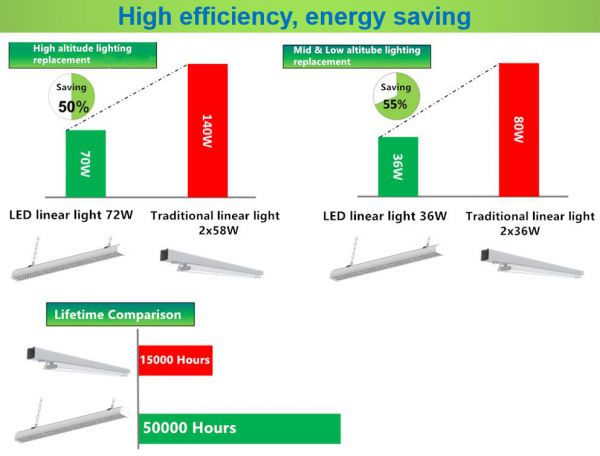

Equivalent to 2x58W or 2x36W T8 with cover

Linear design
Modular design, support continuous seamless connection or single unit use.

Multi Circuit design
Preloaded cable, multi-circuit design, each circuit can be switched on/off separately

Perfect Viewing effect
Linear design, good looking, over 100m continuous connection

Installation
Quick install, suspending or recessed mounting available.

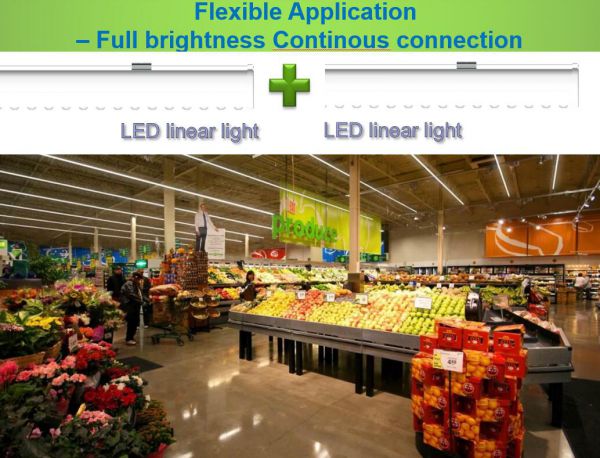

Continuous connection, Seamless connection
Support connection to 210m by 144units. Comfortable, Even light output without dark area.

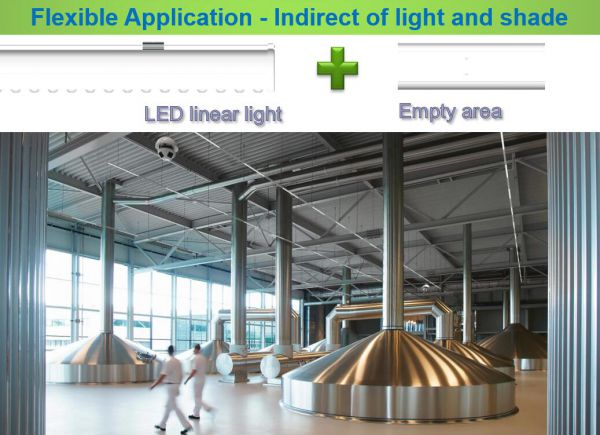

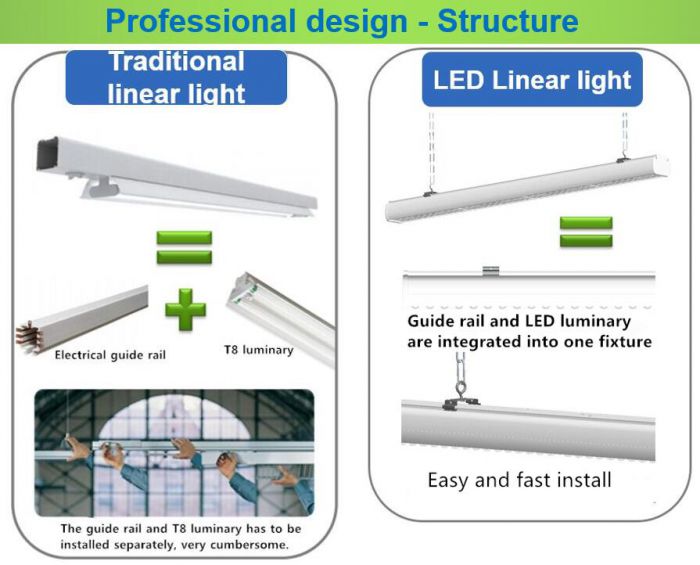

Professional design, Flexible application

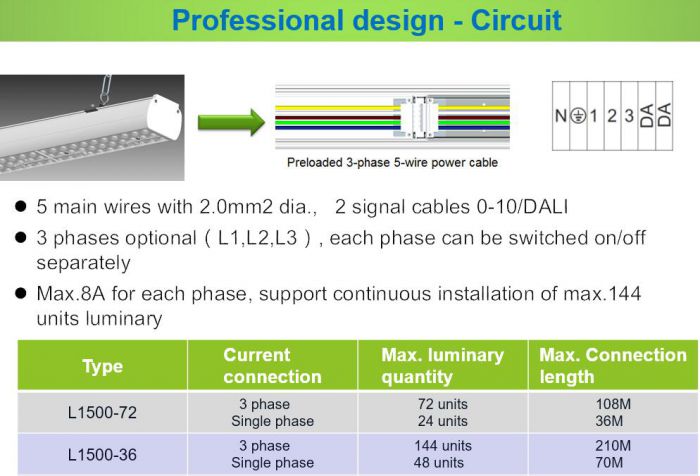

Preloaded 3-phase 5-wire power cable，each phase can be switched on/off separately

High quality material

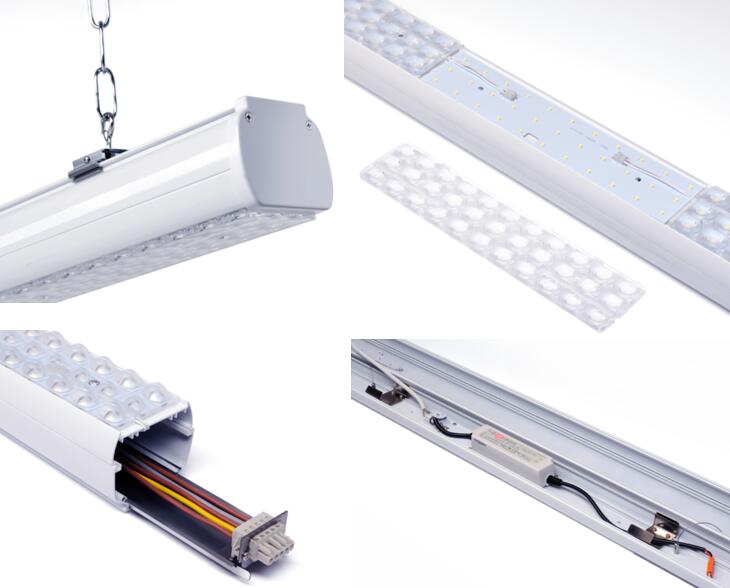

Using 6063 extruded aluminum alloy to make sure 100% straightness.

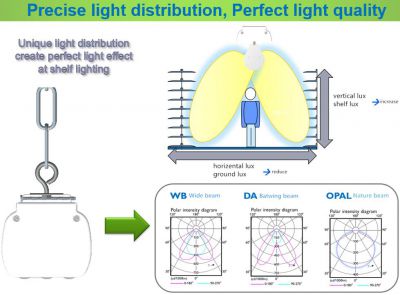

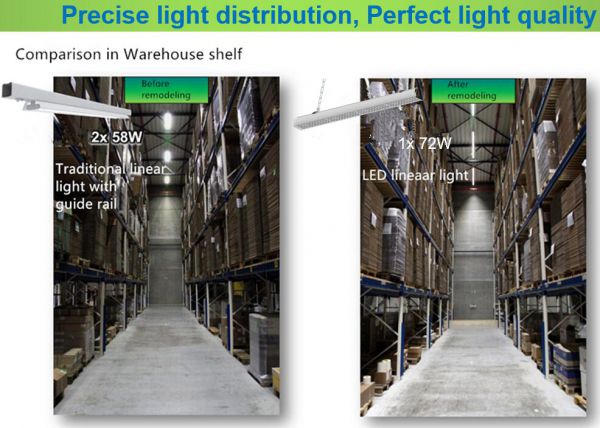

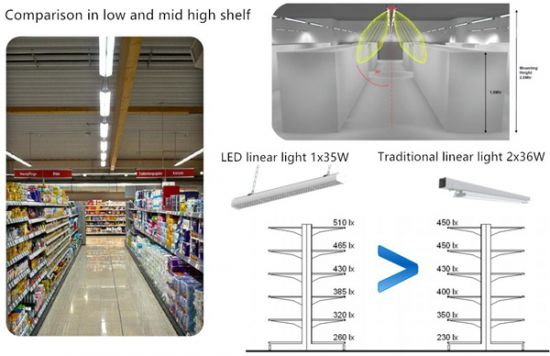

Precise light distribution, Perfect light quality

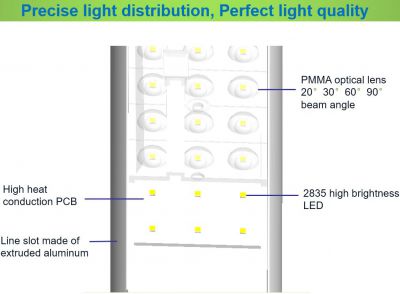

PMMA optical lens, various beam angles available. Consistent CCT, CRI>80, Anti-glare














Technical datas:
