LED Panel Lights 1200×300mm 36W Triac dimmable,DALI dimmable
Key Specifications / Features
36W LED Panel Lights 1200×300mm. Triac dimmable, DALI Dimming, 0-10V dimming. 3 Year warranty. 50% less power consumption than T8 fluorescent light.UGR<19 available
Request a quote
PDF
Detail Information
Features:
UGR<19 available
Various dimming available: Triac dimmable, DALI Dimming, 0-10V dimming
2835/3014 SMD LED, Super bright
Aluminum alloy shell
Acrylic light-guide board made by Mitsubishi in Japan
Much lower surface temperature than fluorescent T8 or T5
Even and Soft light beam, without the feeling of dazzling, greatly reduced the harm to eyes
Long life span: normally over 50,000 hours
Environmental friendly: it saves over 80% power consumption than incandescent light or 50% than T8 or T5 fluorescent light
Solid-state, high shock or vibration resistant
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3-year Warranty
Technical Descriptions:
Panel Size: 1195×295x10 mm
LED type: SMD LED
Emitting Colors available: White, Warm white, Nature white
Operating voltage: DC24V or Constant current
Light-emitting angle: 120 degree
Life: 50000 hours
Third Generation:
LED Lumen Attenuation:
Typical mounting means:
1. Embedded or recessed installation

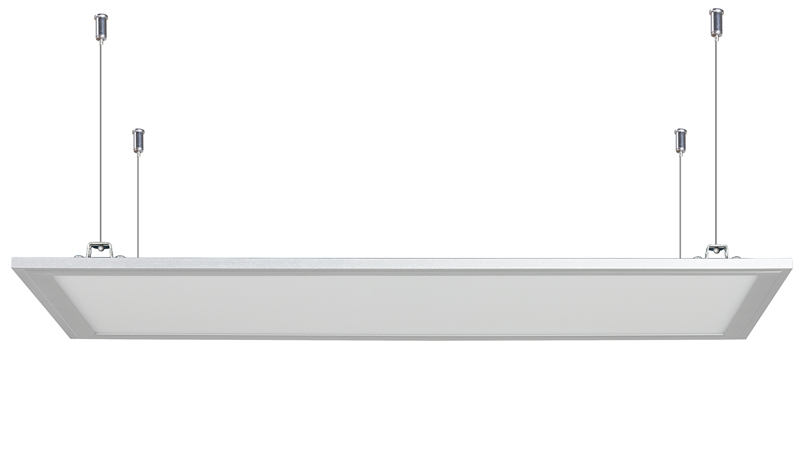

2. Suspension installation: hanging by steel rope
3. Surface mounting or Wall mounting
-Please check detail guide in the PDF file.
Packaging:
Outer carton: 132*32*39CM
Quantity: 5 units
Net weight: 4.6KG/unit
Gross weight: 24KG/carton
Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..
UGR<19 available
Various dimming available: Triac dimmable, DALI Dimming, 0-10V dimming
2835/3014 SMD LED, Super bright
Aluminum alloy shell
Acrylic light-guide board made by Mitsubishi in Japan
Much lower surface temperature than fluorescent T8 or T5
Even and Soft light beam, without the feeling of dazzling, greatly reduced the harm to eyes
Long life span: normally over 50,000 hours
Environmental friendly: it saves over 80% power consumption than incandescent light or 50% than T8 or T5 fluorescent light
Solid-state, high shock or vibration resistant
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3-year Warranty
Technical Descriptions:
Panel Size: 1195×295x10 mm
LED type: SMD LED
Emitting Colors available: White, Warm white, Nature white
Operating voltage: DC24V or Constant current
Light-emitting angle: 120 degree
Life: 50000 hours
Third Generation:
| Model | Color | Size (mm) |
Voltage | Power (W) |
Lumens (LM) |
|
| PNL2835-1200x300-36-W/WW/NW | 2700-6500K | 1195*295*10 | Constant Current | 36W | 4320LM |
LED Lumen Attenuation:
| Operating time(hours) | Lumen decrease (%) |
| 5,000 | 2.3 |
| 10,000 | 5.4 |
| 20,000 | 11.5 |
| 50,000 | 25.2 |
1. Embedded or recessed installation
2. Suspension installation: hanging by steel rope
3. Surface mounting or Wall mounting
-Please check detail guide in the PDF file.
Packaging:
Outer carton: 132*32*39CM
Quantity: 5 units
Net weight: 4.6KG/unit
Gross weight: 24KG/carton
Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..
