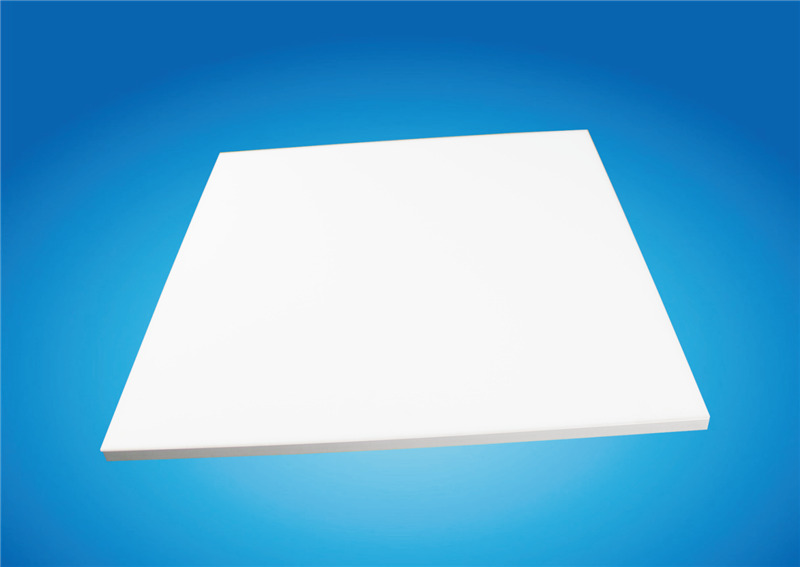

Frameless LED Panel Lights 36W DALI Dimmable,Triac dimmable,0-10V dimmable
Key Specifications / Features
Haichang Optotech supply Frameless LED panel light 12W 24W 36W, 100Lm/Watt,sizes 300x300,600x300,600x600,1200x300mm.Concise and delicate, even light output. UGR<19 available. DALI Dimmable, Triac dimmable, 0-10V dimmable.
Request a quote
PDF
Detail Information
GENIII (3rd Generation) : Over 100Lm/Watt
DALI Dimmable, Triac dimmable, 0-10V dimmable. UGR<19 available
Much higher efficiency: over 100Lm/Watt
Epistar 2835 SMD LED, Aluminum alloy shell
Frameless, Concise and delicate
Widen light distribution area, reduce the dark area blocked by frame
Enhanced light guide panel, much higher light transmission rate
even and soft light output
DALI, 0-10V, ,Push, PWM, Triac dimming available
Much lower surface temperature than fluorescent grille light
Even and Soft light beam, without the feeling of dazzling, Anti-glare
Over 50,000 hours lifetime, 50%-80% energy saving than fluorescent light
Solid-state, high shock or vibration resistant
Work without ballast, quick instant response
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3~5 years Warranty

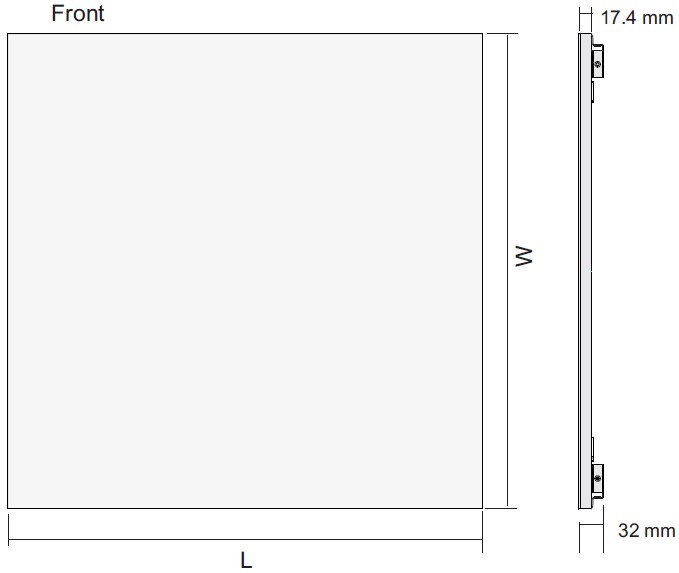

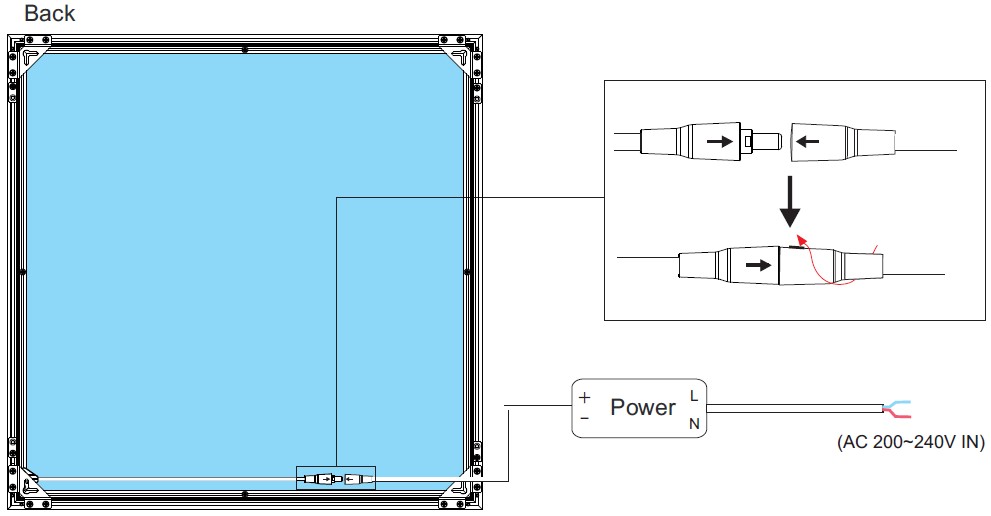

Panel size:
Technical Descriptions:
LED type: Epistar 2835 SMD LED
Emitting Colors available: White(4000-7000K), Warm white(2500-4000K)
Operating current: 300mA/600mA/900mA
Operating voltage: DC26~31V, DC33~38V
Power consumption: 12W, 24W, 36W, 40W optional
Light-emitting angle: 120 degree
Life: 50000 hours

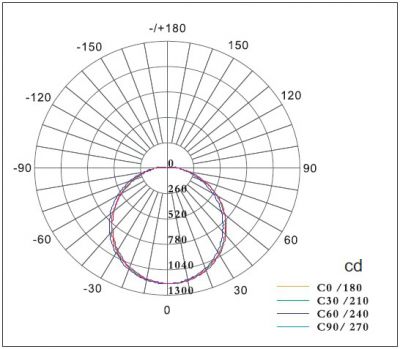

Light distribution graph of frameless LED panel light

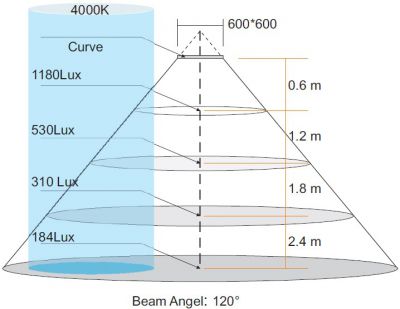

Illumination cone curve (lux parameter) of frameless LED panel light
DALI Dimming
PWM digital dimming, standard DALI logarithmic dimming curve.
High frequency PWM dimming, no flicker in video camera.
Dimming range from 0-100%, LED start at 0.1% possible.
Dimming driver Power factor > 0.99, Efficiency > 93%.
Short circuit / Over-temperature / Over load / Over voltage protection.
DALI bus standard: IEC62386-101, 102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
DALI, Push Dim.
TRIAC Dimming
Dimming interface: Tricac/ELV, Push DIM
Apply to leading edge and trailing edge TRIAC dimmers
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
0-10V Dimming
Dimming interface: 0-10V, 1-10V, 10V PWM or Push button
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Class 2 power supply. Full protective plastic housing.
Suitable for indoor environments.
Installation:

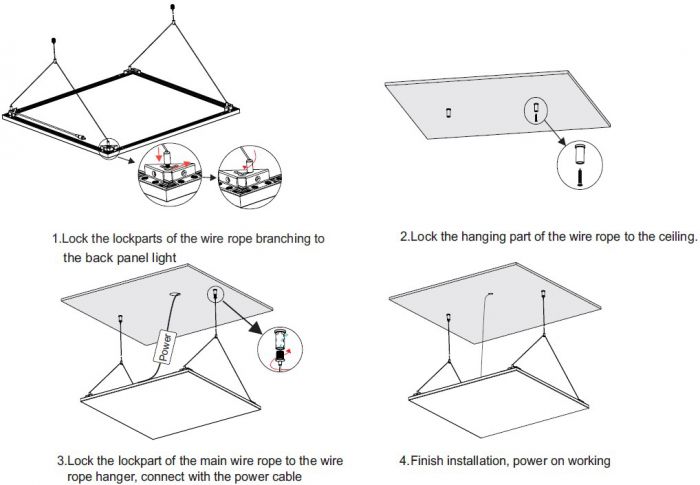

TYPE A: Hanging/Suspension installation
TYPE B: Embedded Installation by Spring clip

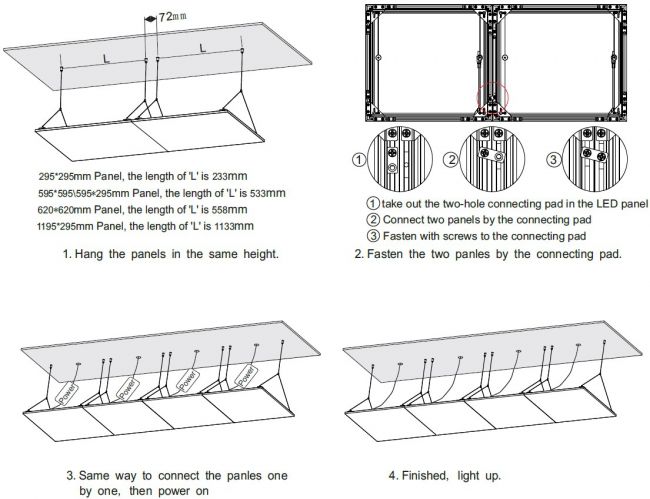

TYPE C: Hanging& split jointed installation
Packaging:
Packaging of 300x300mm Frameless LED panel light:
Outer carton: 405*350*380mm
Quantity: 5 units/carton
Net weight: 1KG/unit
Packaging of 600×300 Frameless LED panel light:
Outer carton: 690*350*370mm
Quantity: 5 units/carton
Net weight: 2.6KG/unit
Packaging of 600×600 Frameless LED panel light:
Outer carton: 575*670*350mm
Quantity: 5 units/carton
Net weight: 5KG/unit
Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..
DALI Dimmable, Triac dimmable, 0-10V dimmable. UGR<19 available
Much higher efficiency: over 100Lm/Watt
Epistar 2835 SMD LED, Aluminum alloy shell
Frameless, Concise and delicate
Widen light distribution area, reduce the dark area blocked by frame
Enhanced light guide panel, much higher light transmission rate
even and soft light output
DALI, 0-10V, ,Push, PWM, Triac dimming available
Much lower surface temperature than fluorescent grille light
Even and Soft light beam, without the feeling of dazzling, Anti-glare
Over 50,000 hours lifetime, 50%-80% energy saving than fluorescent light
Solid-state, high shock or vibration resistant
Work without ballast, quick instant response
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3~5 years Warranty
Panel size:
Technical Descriptions:
LED type: Epistar 2835 SMD LED
Emitting Colors available: White(4000-7000K), Warm white(2500-4000K)
Operating current: 300mA/600mA/900mA
Operating voltage: DC26~31V, DC33~38V
Power consumption: 12W, 24W, 36W, 40W optional
Light-emitting angle: 120 degree
Life: 50000 hours
| Model | Color | Size (mm) |
Current | Voltage | CRI | Power | Lumens |
| PNL-FLIII-2835-300x300-W | White | 295×295 | 300mA | DC26~31V | >80 | 12 watt | 1200 |
| PNL-FLIII-2835-300x300-WW | Warm White | 295×295 | 300mA | DC26~31V | >80 | 12 watt | 1100 |
| Model | Color | Size (mm) |
Current | Voltage | CRI | Power | Lumens |
| PNL-FLIII-2835-600x300-W | White | 595×295 | 600mA | DC26~31V | >80 | 24 watt | 2450 |
| PNL-FLIII-2835-600x300-WW | Warm White | 595×295 | 600mA | DC26~31V | >80 | 24 watt | 2300 |
| Model | Color | Size (mm) |
Current | Voltage | CRI | Power | Lumens |
| PNL-FLIII-2835-600x600-W | White | 595×595 | 900mA | DC33~38V | >80 | 36 watt | 3600 |
| PNL-FLIII-2835-600x600-WW | Warm White | 595×595 | 900mA | DC33~38V | >80 | 36 watt | 3450 |
| Model | Color | Size (mm) |
Current | Voltage | CRI | Power | Lumens |
| PNL-FLIII-2835-620x620-W | White | 620×620 | 900mA | DC33~38V | >80 | 36 watt | 3600 |
| PNL-FLIII-2835-620x620-WW | Warm White | 620×620 | 900mA | DC33~38V | >80 | 36 watt | 3450 |
| Model | Color | Size (mm) |
Current | Voltage | CRI | Power | Lumens |
| PNL-FLIII-2835-1200x300-W | White | 1195×295 | 900mA | DC33~38V | >80 | 36 watt | 3600 |
| PNL-FLIII-2835-1200x300-WW | Warm White | 1195×295 | 900mA | DC33~38V | >80 | 36 watt | 3450 |
Light distribution graph of frameless LED panel light
Illumination cone curve (lux parameter) of frameless LED panel light
DALI Dimming
PWM digital dimming, standard DALI logarithmic dimming curve.
High frequency PWM dimming, no flicker in video camera.
Dimming range from 0-100%, LED start at 0.1% possible.
Dimming driver Power factor > 0.99, Efficiency > 93%.
Short circuit / Over-temperature / Over load / Over voltage protection.
DALI bus standard: IEC62386-101, 102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
DALI, Push Dim.
TRIAC Dimming
Dimming interface: Tricac/ELV, Push DIM
Apply to leading edge and trailing edge TRIAC dimmers
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
0-10V Dimming
Dimming interface: 0-10V, 1-10V, 10V PWM or Push button
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Class 2 power supply. Full protective plastic housing.
Suitable for indoor environments.
Installation:
TYPE A: Hanging/Suspension installation
TYPE B: Embedded Installation by Spring clip
TYPE C: Hanging& split jointed installation
Packaging:
Packaging of 300x300mm Frameless LED panel light:
Outer carton: 405*350*380mm
Quantity: 5 units/carton
Net weight: 1KG/unit
Packaging of 600×300 Frameless LED panel light:
Outer carton: 690*350*370mm
Quantity: 5 units/carton
Net weight: 2.6KG/unit
Packaging of 600×600 Frameless LED panel light:
Outer carton: 575*670*350mm
Quantity: 5 units/carton
Net weight: 5KG/unit
Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..
