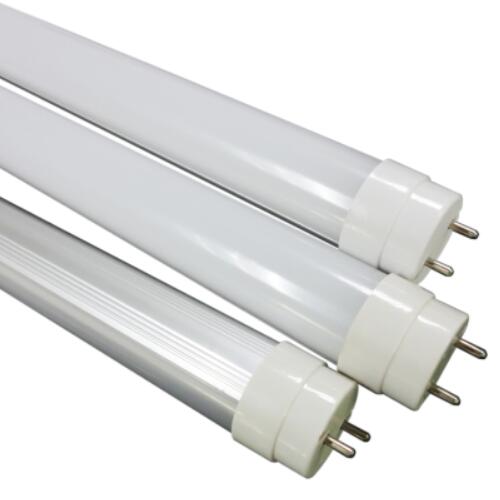

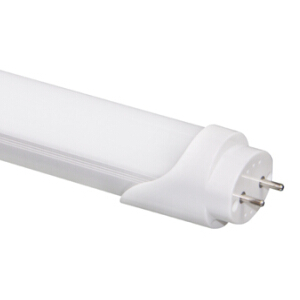

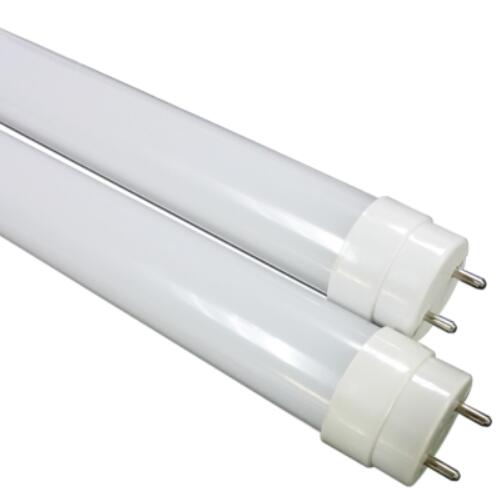

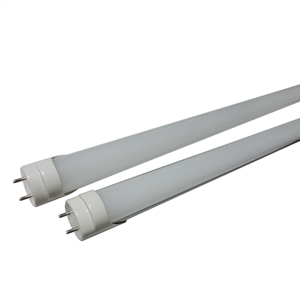

CE Approved T8 LED Tube

Name: CE Approved T8 LED Tube
SKU: T8-120W20CW-2835
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our CE Approved T8 LED Tube uses brand new SMD LED technology to save you 80% on your tube lighting costs while be much more environmental friendly. Our new safer design apply built-in isolated power driver to enable highest quality and safety.

Request a quote

Detail Information

Various types of Lamp holder available:

Features:

Epistar 2835 SMD LED
High luminous efficiency, Up to 125LM/W
Low thermal resistance,Super low degradation
No dark area
Color rendering Index (CRI)≥72
Emitting angle: 140º
Aluminum alloy body with transparent or frosted plastic cover
Easy mounting: working without electronic ballast or starter
Power Factor (PF)≥0.95
80% Energy-saving over fluorescent tubes
50,000+ hours lifetime
Instant start without Flickering
Wide voltages available: AC100V-240V
CE, RoHS compliant

Dimensions:

Technical datas:

600mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-060W10WW -2835	2 FT / 0.6M	26mm	54	10W	AC100-240V	Warm White (2800K-3200K)	850±5%
T8-060W10CW -2835	2 FT / 0.6M	26mm	54	10W	AC100-240V	Commercial White (4000-4500K)	930±5%
T8-060W10PW -2835	2 FT / 0.6M	26mm	54	10W	AC100-240V	Pure White (5500K-6500K)	1000±5%

1200mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-120W18WW-2835	4 FT / 1.2M	26mm	96	18W	AC100-240V	Warm White (2800K-3200K)	1620±5%
T8-120W18CW-2835	4 FT / 1.2M	26mm	96	18W	AC100-240V	Commercial White (4000-4500K)	1710±5%
T8-120W18PW-2835	4 FT / 1.2M	26mm	96	18W	AC100-240V	Pure White (5500K-6500K)	1800±5%

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-120W20WW-2835	4FT / 1.2M	26mm	110	20W	AC100-240V	Warm White (2800K-3200K)	1810±5%
T8-120W20CW-2835	4FT / 1.2M	26mm	110	20W	AC100-240V	Commercial White (4000-4500K)	1900±5%
T8-120W20PW-2835	4FT / 1.2M	26mm	110	20W	AC100-240V	Pure White (5500K-6500K)	2000±5%

1500mm LED tube

Model	Length (Feet/Meter)	Diameter (mm)	LED QTY	Watt (W)	Operating Voltage	Color and Kelvin Tc (K)	Lumens (Lm)
T8-150W25WW-2835	5 FT / 1.5M	26mm	144	25W	AC100-240V	Warm White (2800K-3200K)	2260±5%
T8-150W25CW-2835	5 FT / 1.5M	26mm	144	25W	AC100-240V	Commercial White (4000-4500K)	2380±5%
T8-150W25PW-2835	5 FT / 1.5M	26mm	144	25W	AC100-240V	Pure White (5500K-6500K)	2490±5%

Installation:

Installation of One Side Power in Tube:

Installtion of Both Sides Power in Tube:

Packaging:

0.6m LED tube:
Carton size: 67*23*23CM
Quantity: 25pcs per carton
G.W.: 6kg/carton

1.2m LED tube:
Carton size: 127*23*23CM
Quantity: 25pcs per carton
G.W.: 10kg/carton

1.5m LED tube:
Carton size: 157*23*23CM
Quantity: 25pcs per carton
G.W.: 14.8kg/carton

Applications:
Commercial lighting for offices,restaurants,hotels,warehouses,parking lots,shopping malls;
Display lighting for the articles in stores and shops.

Attentions:
Working environment: -20℃ to 45℃
Work without ballast
Indoor application only
