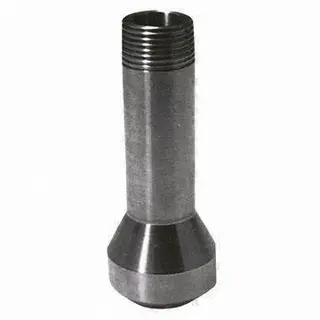

MSS SP-97 ASTM A105 Nipolet 2"x5.54mm-0.5" NPT-M CL 3000
Model Number: GWS- NIPPLE- 261
Key Specifications / Features
China MSS SP-97 Nipolet, ASTM A105Nipolet, Nipolet, 2"x5.54mm-0.5" Nipolet, NPT-M Nipolet , CL 3000 Nipolet
Detail Information
Product Type: Nipolet
Manufacture Method: forging
Size:2"x5.54mm-0.5"
Connecting type: NPT-M
Threads type: NPT,FNPT,MNPT, BSPT
Standard:MSS SP.97
Material: ASTM A105
Surface treatment: Oiled , Galvanized
Marking: As per standard & customer's requirements
Packing: Plywood box for small size, and plywood pallet for big size
Manufacture Method: forging
Size:2"x5.54mm-0.5"
Connecting type: NPT-M
Threads type: NPT,FNPT,MNPT, BSPT
Standard:MSS SP.97
Material: ASTM A105
Surface treatment: Oiled , Galvanized
Marking: As per standard & customer's requirements
Packing: Plywood box for small size, and plywood pallet for big size
| Chemical Composition and Mechanical Property For ASTM A105 | |||||||||||||||
| Steel Grade | Chemical Composition | Hardness | Mechanical performance | ||||||||||||
| C(Max) | Mn | P(Max) | S(Max) | Si | Cu(Max) | Ni(Max) | Cr(Max) | Mo(Max) | V(Max) | HB, max | Tensile strength | Yield Strength | |||
| (Min） | (Min) | ||||||||||||||
| psi | Mpa | psi | Mpa | ||||||||||||
| A105 | 0.35 | 0.6-1.05 | 0.035 | 0.04 | 0.1-0.35 | 0.4 | 0.4 | 0.3 | 0.12 | 0.12 | 187 | 70000 | 485 | 36000 | 250 |
