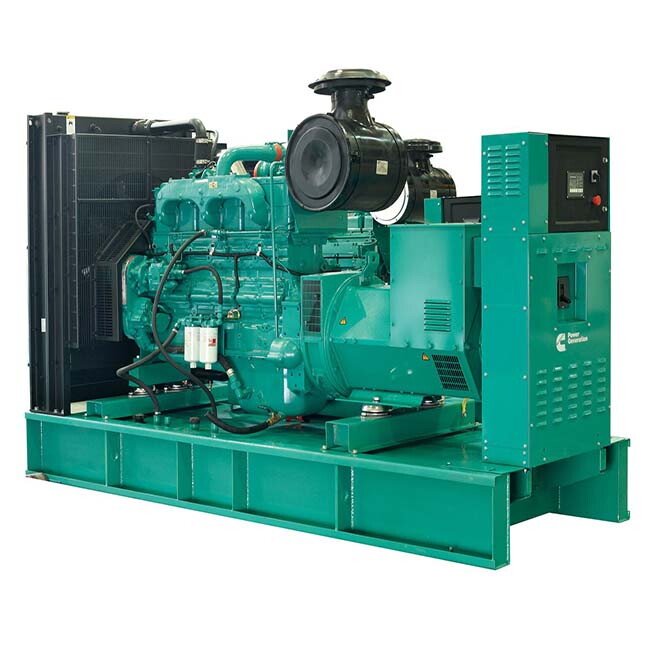

525kVA Diesel Generator, 50Hz, Cummins KTAA19-G5, 6 Cylinder

Name: 525kVA Diesel Generator, 50Hz, Cummins KTAA19-G5, 6 Cylinder
SKU: GGS-240328-DGS-16
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our robust diesel generator boasting a prime power output of 420kW and 525kVA, driven by the reliable Cummins KTAA19-G5 engine. Paired with a Stamford HCI544D brushless alternator, this generator operates at 50Hz and features a water-cooled system for enhanced performance and durability.

Request a quote

Detail Information

Product Name: 525kVA Diesel Generator
Model: GGS-525-C
Frequency: 50Hz
Prime Power: 420kW, 525kVA
Standby Power: 462kW, 578kVA
Rated Voltage: 230, 400V
Displacement: 19 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 13.9:1
Engine: Cummins KTAA19-G5, 4 Stroke, 6 Cylinder
Alternator: Stamford HCI544D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor

Technical Data

Generator Specification
Generator Model	GGS-525-C
Frequency	50Hz
Prime Power	420kW/525kVA
Standby Power	462kW/578kVA
Rated Voltage	230/400V
Dimension (L x W x H) (mm)	3470 x 1550 x 2200
Gross Weight (KG)	4350
Engine Specification
Engine Brand	Cummins
Engine Model	KTAA19-G5
Cooling System	Water Cooled
Aspiration	Turbocharged and Air-to-air Cooled
Number of Cylinders	6 Cylinder
Cycle	4 Stroke
Displacement	19 L
Bore x Stroke	159 x 159 mm
Compression Ratio	13.9:1
Rated Speed	1500 RPM
Governor type	Mechanical
Alternator Specification
Alternator Brand	Stamford
Alternator Model	HCI544D
Excitation system	Brushless, Self-excited
Number of phase	3 Phase
Power Factor	0.8
Protection Grade	IP23
Insulation Class	H
