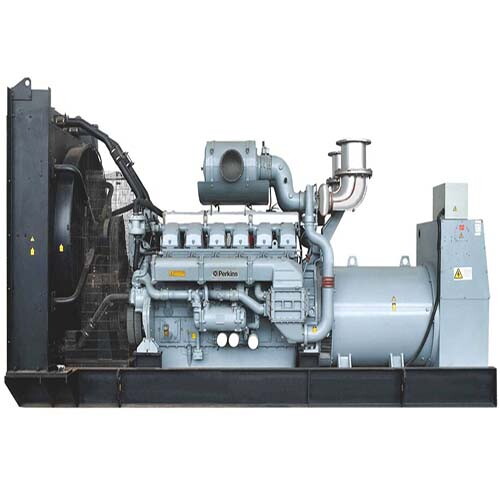

250kVA Diesel Generator, Perkins 1506A-E88TAG3, Six Cylinder

Name: 250kVA Diesel Generator, Perkins 1506A-E88TAG3, Six Cylinder
SKU: GGS-240403-DGS-08
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our six-cylinder diesel generator, engineered for reliable performance at 50Hz with a prime power output of 200kW and 250kVA. Powered by the Perkins 1506A-E88TAG3 engine and paired with a Stamford UCDI274K alternator, this generator is ideal for applications requiring continuous and stable power supply in three-phase configurations.

Request a quote

Detail Information

Product Name: 250kVA Diesel Generator
Model: GGS-250-P
Frequency: 50Hz
Prime Power: 200kW, 250kVA
Standby Power: 220kW, 275kVA
Rated Voltage: 230V, 400V
Displacement: 8.8 L
Bore x Stroke: 112 x 149 mm
Compression Ratio: 16.1:1
Engine: Perkins 1506A-E88TAG3, 4 Stroke, 6 Cylinder
Alternator: Stamford UCDI274K, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor

Technical Data

Generator Specification
Generator Model	GGS-250-P
Frequency	50Hz
Prime Power	200kW/250kVA
Standby Power	220kW/275kVA
Rated Voltage	230V, 400V
Dimension (L x W x H) (mm)	2610 x 900 x 1750
Gross Weight (KG)	2000
Engine Specification
Engine Brand	Perkins
Engine Model	1506A-E88TAG3
Cooling System	Water Cooled
Aspiration	Turbocharged
Number of Cylinders	6 Cylinder, Vertical in Line
Cycle	4 Stroke
Displacement	8.8 L
Bore x Stroke	112 x 149 mm
Compression Ratio	16.1:1
Rated Speed	1500 RPM
Governor type	Electronic
Alternator Specification
Alternator Brand	Stamford
Alternator Model	UCDI274K
Excitation system	Brushless, Self-excited
Number of phase	3 Phase
Power Factor	0.8
Protection Grade	IP23
Insulation Class	H
