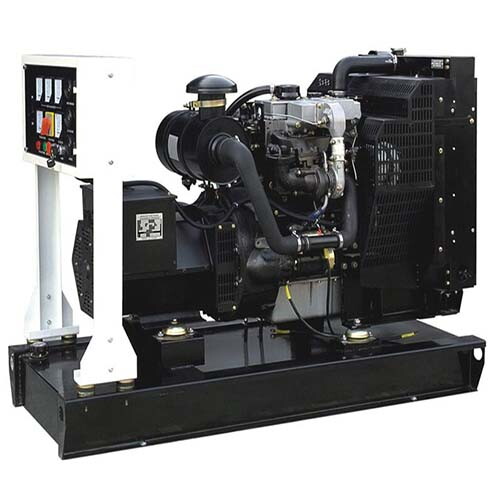

19kW 24kVA Diesel Generator, 60Hz, Perkins 404D-22G, 4 Stroke

Name: 19kW 24kVA Diesel Generator, 60Hz, Perkins 404D-22G, 4 Stroke
SKU: GGS-240328-DGS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Explore our range of 60Hz, 3-phase diesel generators boasting a robust 4-stroke design with a prime power output of 19kW (24kVA). With flexible rated voltage options including 127V and 220V, each generator features a dependable 4-cylinder Perkins 404D-22G engine to ensure reliable and efficient operation.

Request a quote

Detail Information

Product Name: 19kW 24kVA Diesel Generator
Model: GGS-24-P
Frequency: 60Hz
Prime Power: 19kW, 24kVA
Standby Power: 20.9kW, 26kVA
Rated Voltage: 127V, 220V
Displacement: 2.2 L
Bore x Stroke: 84 x 100 mm
Compression Ratio: 23.3:1
Engine: Perkins 404D-22G, 4 Stroke, 4 Cylinder in Line
Alternator: Stamford PI144D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor

Technical Data

Generator Specification
Generator Model	GGS-24-P
Frequency	60Hz
Prime Power	19kW/24kVA
Standby Power	20.9kW/26kVA
Rated Voltage	220V, 127V
Dimension (L x W x H) (mm)	1390 x 550 x 1200
Gross Weight (KG)	493
Engine Specification
Engine Brand	Perkins
Engine Model	404D-22G
Cooling System	Water Cooled
Aspiration	Naturally Aspirated
Number of Cylinders	4 Cylinder in Line
Cycle	4 Stroke
Displacement	2.2 L
Bore x Stroke	84 x 100 mm
Compression Ratio	23.3:1
Rated Speed	1800 RPM
Governor type	Mechanical
Alternator Specification
Alternator Brand	Stamford
Alternator Model	PI144D
Excitation system	Brushless, Self-excited
Number of phase	3 Phase
Power Factor	0.8
Protection Grade	IP23
Insulation Class	H

Key Components of Perkins 404D-22G Engine (19kW Diesel Generator)

The Perkins 404D-22G engine is designed for reliability and efficiency, featuring an array of standard equipment that enhances performance and ease of use.

Mounted Air Filter: Ensures clean air intake for optimal engine performance.

Control System

12 Volt Electronic Shut Off Solenoid (ESOS): Energized to run for enhanced safety and efficiency.
12 Volt Starter Motor: Provides reliable starting capabilities.
12 Volt, 14 Amp Alternator: Delivers DC output for battery charging.
Glow Plug Cold Start Aid: Facilitates easier cold starts.
Heater/Starter Switch: Simplifies operation with intuitive controls.
Oil Pressure and Coolant Temperature Switches: Monitor critical engine parameters for safe operation.

Cooling System

Thermostatically Controlled System: Maintains optimal operating temperatures.
Belt Driven Coolant Pump: Ensures efficient coolant circulation.
Pusher Fan: Enhances cooling performance.
Mounted Radiator, Piping, and Guards: Comprehensive cooling solution for reliable performance.

Flywheel and Flywheel Housing

1500/1800 RPM High Inertia Flywheel: SAE J620 size 7½ heavy flywheel housing (SAE 4 long).
3000 RPM High Inertia Flywheel: SAE J620 size 7½ light flywheel housing (SAE 4 short) for enhanced stability.

Fuel System

Mechanically Governed Cassette Type Fuel Injection Pump: Provides precise fuel delivery for efficient combustion.
Split Element Fuel Filter: Ensures clean fuel supply for optimal engine operation.

Oil System

Wet Steel Sump: Features a filler and dipstick for easy maintenance.
Spin-On Full Flow Lubricating Oil Filter: Simplifies oil changes and ensures clean lubrication.

The Perkins 404D-22G engine is engineered for robust performance, equipped with essential features that ensure reliability and efficiency across various applications.
