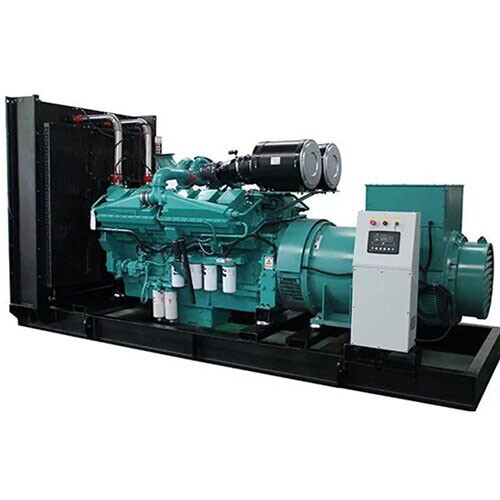

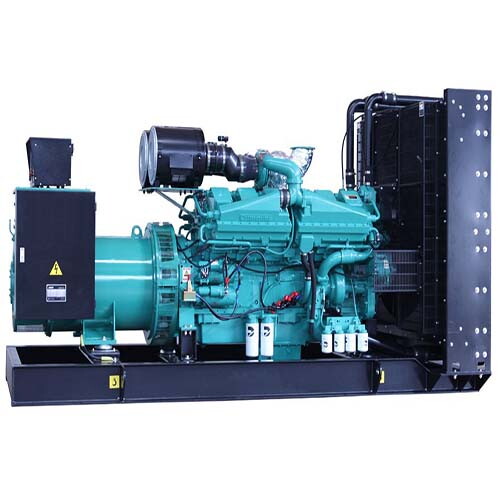

12 Cylinder LPG Generator, 660kW 825kVA, 50Hz, Cummins Engine

Name: 12 Cylinder LPG Generator, 660kW 825kVA, 50Hz, Cummins Engine
SKU: GGS-240322-GGS-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our 12 Cylinder LPG Generator, delivering a robust power output of 660 kW (825 kVA) at 50Hz. Powered by a reliable 4-stroke Cummins engine and equipped with a Stamford brushless, self-excited alternator, this generator ensures dependable performance. With a 3-phase, 4-wire configuration and water cooling system, it is suitable for a wide range of applications. Trust in our generator for efficient and reliable power supply.

Request a quote

Detail Information

Product Name: 12 Cylinder LPG Generator
Model: GGS-825-C
Fuel: LPG
Rated Power: 660kW, 825kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTAA50
Engine Type: 4 Stroke, 12 Cylinder
Alternator Model: Stamford LVI634D
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled

Technical Data

Generator Specification
Generator Model	GGS-825-C
Frequency	50Hz
Rated Power	660kW/825kVA
Rated Voltage	400V, 230V
Rated Currency	1188A
Dimension (L x W x H) (mm)	5500 × 2100 × 2300
Gross Weight (KG)	12000
Engine Specification
Engine Brand	Cummins
Engine Model	KTAA50
Cooling System	Water Cooled
Aspiration	Turbocharged & Intercooled
Number of Cylinders	12 Cylinder
Cycle	4 Stroke
Displacement	50.3 L
Bore x Stroke	159 x 159 mm
Rated Speed	1500 RPM
Max. Standby Power	726kW/907.5kVA
Alternator Specification
Alternator Brand	Stamford
Alternator Model	LVI634D
Excitation system	Brushless, Self-excited, AVR
Number of phase	3 Phase 4 Wire
Power Factor	0.8
Protection Grade	IP23
Insulation Class	H
