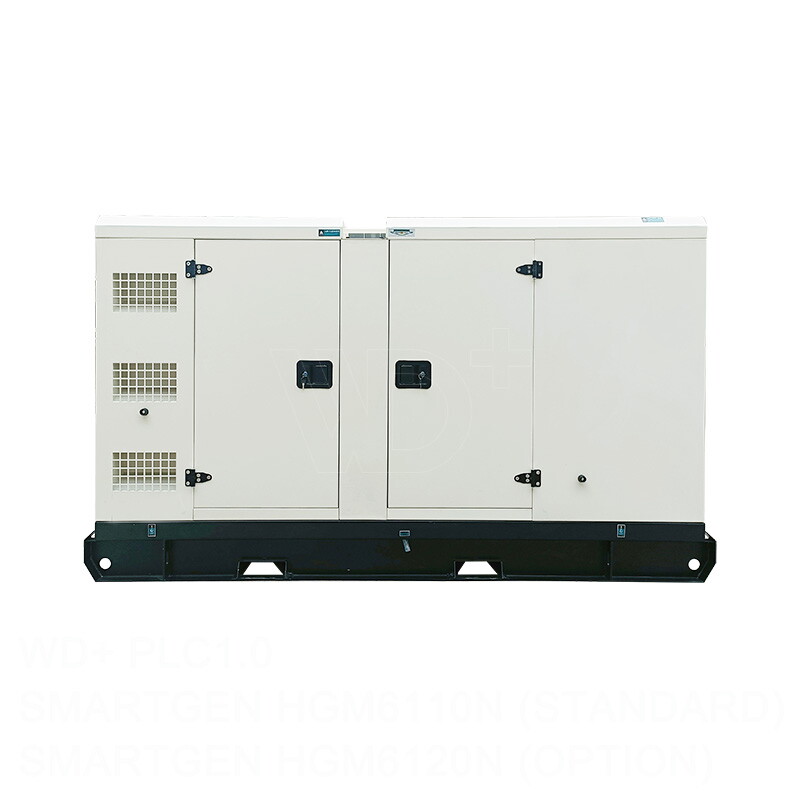

100kVA Diesel Generator, DCEC Engine, 4 Stroke, 6 Cylinder

Name: 100kVA Diesel Generator, DCEC Engine, 4 Stroke, 6 Cylinder
SKU: GGS-240320-DGS-06
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our DCEC Engine Powered Diesel Generator, delivering a prime power output of 80kW (100kVA). Equipped with a robust 4-stroke, 6-cylinder engine, this generator ensures reliable performance. Featuring a self-excited alternator, it guarantees efficient power generation for various applications. Trust in our generator for dependable electricity supply.

Request a quote

Detail Information

Product Name: 100kVA Diesel Generator
Model: GGS-100-DC
Frequency: 50Hz
Prime Power: 80kW, 100kVA
Rated Current: 158.8A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: DCEC 6BT5.9-G1
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase

Technical Data

Generator Specification
Generator Model	GGS-100-DC
Frequency	50Hz
Prime Power	80kW / 100kVA
Standby Power	88kW / 110kVA
Rated Current	158.8A
Rated Voltage	400/230V
Dimension (L x W x H) (mm)	2900 x 1100 x 1680
Net Weight (KG)	1550
Engine Specification
Engine Brand	DCEC
Engine Model	6BT5.9-G1
Prime Power	86kW/115hp
Standby Power	92kW/123hp
Type of Injection	Direct Injection
Cooling System	Water Cooled
Aspiration	Turbocharged
Number of Cylinders	6 Cylinder in Line
Cycle	4 Stroke
Displacement	5.9 L
Bore x Stroke	102 x 120 mm
Compression Ratio	17.3:1
Rated Speed	1500 RPM
Starter System	24V Electric System
Governor Type	Mechanical
Alternator Specification
Alternator Type	Brushless
Excitation system	Self-excited
Voltage regulator	AVR
Number of phase	3 Phase
Power Factor	0.8
Poles	4
Terminals	12
Protection Grade	IP23
Insulation Class	H
