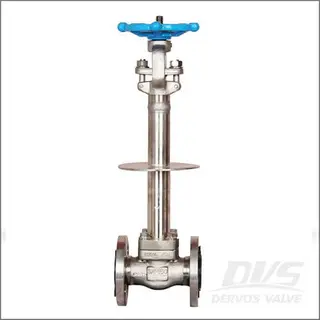

Integral Flanged Cryogenic Gate Valve, F304L, Class 150, 3/4 Inch
Key Specifications / Features
China Integral Flanged Gate Valve Fabricator Provides Integral Flanged Cryogenic Gate Valve, F304L, Forged Stainless Steel, Class 150, 3/4 Inch, BS 6364.
Forged Stainless Steel Valves
Cryogenic Gate Valve
3/4 Inch Gate Valve
ASTM A182 F304 Gate Valve
ASTM A182 F304L Gate Valve
ASTM A182 F316 Gate Valve
ASTM A182 F316L Gate Valve
Class 150 LB Gate Valve
Flange Gate Valve
Hand Wheel Gate Valve
API 602 Gate Valve
ASME B16.34 Gate Valve
BS 6364 Gate Valve
ASTM A276 304 Gate Valve
ASTM A276 304L Gate Valve
ASTM A276 316 Gate Valve
ASTM A276 316L Gate Valve
Detail Information
FORGED STAINLESS STEEL CRYOGENIC GATE VALVE - Outside Screw & Yoke (OS&Y), Integral Flange
STANDARD MATERIALS
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.5.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Flanged Type
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
STANDARD MATERIALS
| PART NAMES | MATERIALS |
| BODY | F304; F304L; F316; F316L |
| BONNET | F304; F304L; F316; F316L |
| SEAT | ASTM A276 304(L) / 316(L) + HF |
| WEDGE | ASTM A276 304(L) / 316(L) |
| STEM | ASTM A276 304(L) / 316(L) |
| GASKET | 304 + GRAPHITE |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 304(L) / 316(L) |
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.5.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Flanged Type
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
