Cone Roof Storage Tank, ASTM A36, A53B, API 650, 1000 m3

Name: Cone Roof Storage Tank, ASTM A36, A53B, API 650, 1000 m3
SKU: FAB-240131-LST-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our state-of-the-art cone roof storage tank facility specializes in manufacturing above-ground welded tanks built to API 650 standards. Constructed from high-quality carbon steel ASTM A36 and ASTM A53B materials, our tanks ensure durability and reliability for long-term storage needs. With an internal diameter of 13000 mm and a height of 8000 mm, our tanks offer a maximum volume exceeding 1,000 m³, making them suitable for various industrial applications requiring large-scale storage solutions.

Request a quote

Detail Information

Product Name: Cone Roof Storage Tank
Covering Standard: API 650
Material (Reinforcing Pad): (Low Carbon Steel) ASTM A36
Material (Submerged Piping): (Carbon Steel) ASTM A53B

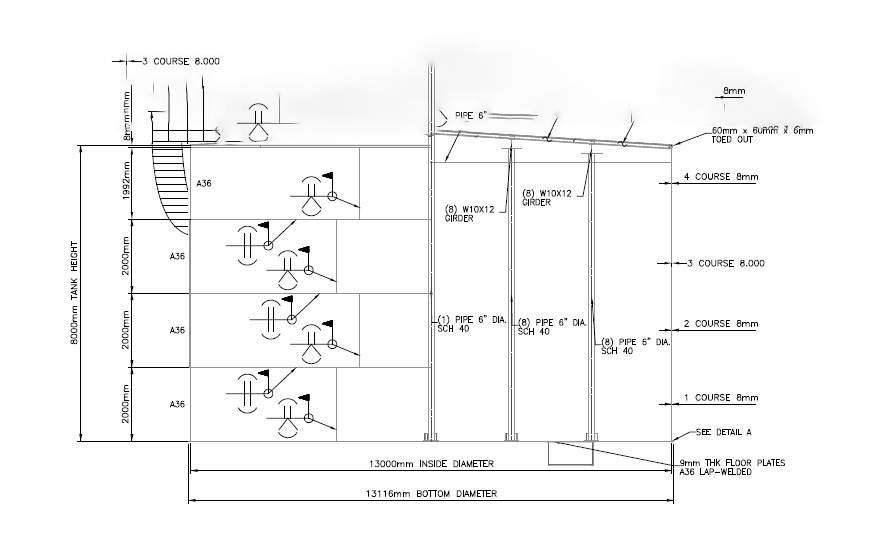

Specification: ID 13000 MM x H 8000 MM
Capacity to Top of Shell: 1,061 m³
Working Capacity: 1,000 m³, 1,000,000 Litre, Approx. 264,172 Gallon
Design Liquid Level: 7.53 Meter
Tank Weight(Empty): 571,955 N
Tank Weight(Full of Water): 9,835,394 N
Max Operating Temperature: Ambient
Allowable Stress: 160 Mpa
Mini Design Metal Temperature: -1℃
Shell Joint Efficiency: 0.85
Bottom Seams: LWTSO
Fixed Roof Seams: LWTSO
Shell Seams: DBW
Description: Mining Project in Saudi Arabian
