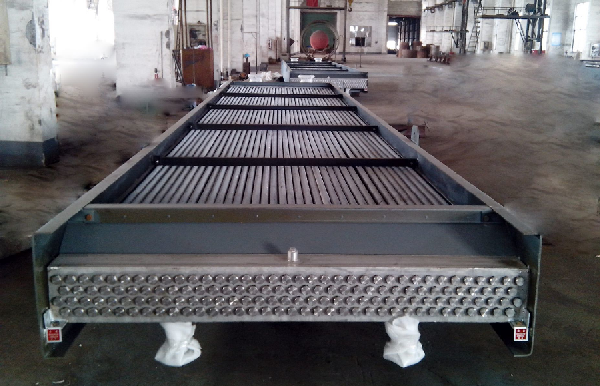

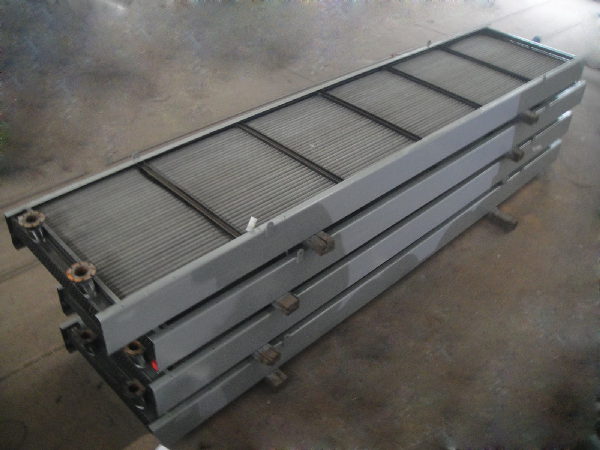

Air Cooler Tube Bundles, ASME VIII Div.1, ASME SB111M C44300
Model Number: FAB-240131-ACHE-03
Key Specifications / Features
Welcome to our Air Cooler Tube Bundle Plant located in China. Our tube bundles are meticulously manufactured to meet ASME VIII Division 1 standards, ensuring exceptional quality and reliability. Crafted from ASME SB111M C44300, our tubes boast a diameter of 25 MM and a wall thickness of 2.77 MM, optimized for efficient heat transfer. With a parallel connection design and capable of withstanding pressures up to 0.196 Mpa, our tube bundles are ideal for various cooling applications.
Detail Information
Product Name: Air Cooler Tube Bundles
Standard: ASME VIII Division 1

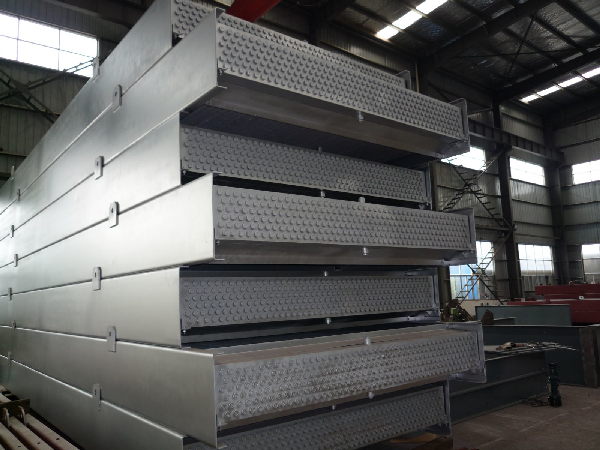

Material: ASME SB111, ASME SB111M C44300

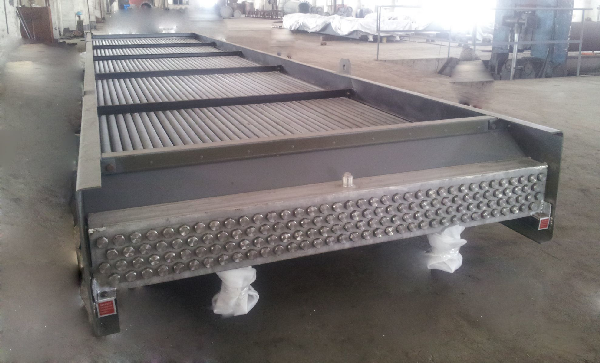

Length of Finned Pipe: 9840 MM
Base Tube (OD): 25 MM
Thickness: 2.77 MM

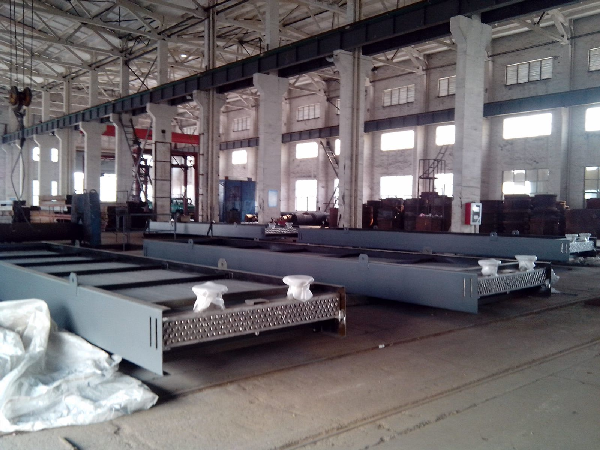

Tube Bundle: Parallel Connection
Design pressure Mpa (G): 0.196 Mpa
Design temperature ℃: 122℃
Description: Air Cooler Tube Bundle for Costa Rica Project; Sudan Project
