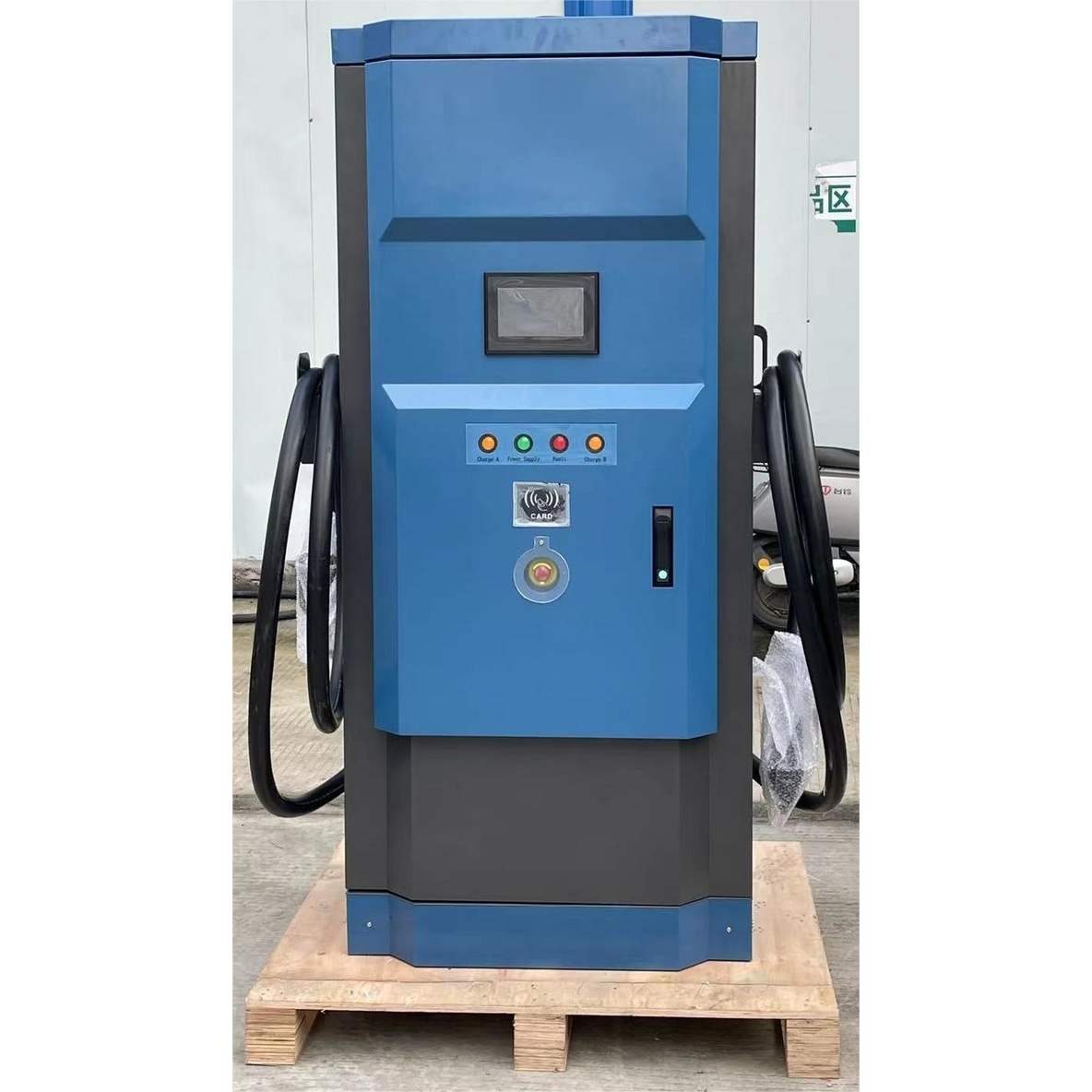

3 Phase DC EV Charger Station, CCS1, CCS2, IP54, OCPP1.6J
Model Number: EVCC-DCEVC-20240812-01
Key Specifications / Features
As a leading manufacturer of 3-phase DC EV charger stations in China, we specialize in producing high-performance charging solutions designed to meet diverse needs. Our chargers are available in multiple power configurations, including 60kW, 120kW, and 180kW, ensuring fast and efficient charging for a variety of electric vehicles. Compatible with both Type 1 and Type 2 connectors, our chargers support CCS1 and CCS2 standards for wide-ranging applicability. Equipped with OCPP1.6J protocol, our stations offer seamless integration with various charging networks. Operating on a 380V AC input, our chargers are built to withstand harsh conditions with IP54-rated protection, ensuring durability and reliability. Trust us to provide cutting-edge EV charging solutions that meet international standards.
Detail Information
60kW-180kW DC EV Charger Station, 380V AC Input, CCS1, CCS2, IP54, 5m Cable.
Product Description
Product Name: 3 Phase EV Charging Station
Output Power: 60kW, 120kW, 180kW
Nominal Input Voltage: 380V AC ± 15%
Acceptable Input Voltage Range: 3-phase, 3P+N+PE
Working Voltage Range: 50 - 60 Hz
Input Current: 95A, 190A, 285A
Connection Standard: CCS2 (IEC61851-23) and CHAdeMO 1.0
Connection Communication Mode: DIN 70121, ISO 15118
IP Protection: IP54
Cable Length: 5M
Frequency: ≦ 5%
Input Power Factor: > 0.99
Module Output Current Unbalancce: < 5%
Module Output Current Precision: < 1%
Output Current Range (based on 2-output): 2-200A, 2-250A
Output Voltage Range: 200-750V DC (600-750V DC in constant power mode)
Efficiency: > 94%
Communication Protocol: OCPP1.6
Operating Temperature: -25°C to 50°C
Altitude: < 2000m
Noise Level: <65dB
Size(D*W*H): 750*530*1685mm
Interface Safety Portection: Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection.
Product Description
Product Name: 3 Phase EV Charging Station
Output Power: 60kW, 120kW, 180kW
Nominal Input Voltage: 380V AC ± 15%
Acceptable Input Voltage Range: 3-phase, 3P+N+PE
Working Voltage Range: 50 - 60 Hz
Input Current: 95A, 190A, 285A
Connection Standard: CCS2 (IEC61851-23) and CHAdeMO 1.0
Connection Communication Mode: DIN 70121, ISO 15118
IP Protection: IP54
Cable Length: 5M
Frequency: ≦ 5%
Input Power Factor: > 0.99
Module Output Current Unbalancce: < 5%
Module Output Current Precision: < 1%
Output Current Range (based on 2-output): 2-200A, 2-250A
Output Voltage Range: 200-750V DC (600-750V DC in constant power mode)
Efficiency: > 94%
Communication Protocol: OCPP1.6
Operating Temperature: -25°C to 50°C
Altitude: < 2000m
Noise Level: <65dB
Size(D*W*H): 750*530*1685mm
Interface Safety Portection: Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection.
