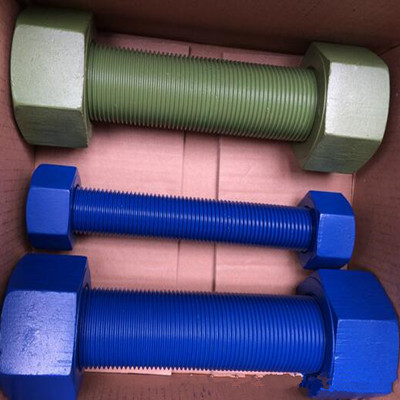

Stub Bolt A193 B7
Key Specifications / Features
China Stub Bolt A193 B7 manufacturer can provide Stub Bolt A193 B7 UNC standard.high strength alloy steel material,M16-M56, Delivery in 10-15days
Request a quote
Detail Information
Stub Bolt A193 B7
Standard: customized sizes as per your need.
Size: M16-M56 (1/4-1 3/4) or as per customers technical drawings showed.
Material: ASTM A193 B7, A194 B8
Delivery time: 10-15 days are available.
Salt spray time: 2 hours, 24 hours, 48 hours, 96 hours, 1000 hours we can do as per need. And can offer with salt spray checking report.
Surface Finish: plain finish, zinc plating, chromate, nickel plating, copper finish, dacromet, waxing finish, anti-rust treatment.
Appearance: clear shiny surface, with complete neat body, without burrs and sharps. Inspection equipment: Hardness test, torque test, salt . endurance test, mechanical sizes test, as per your need.
Stub Bolt A193 B7 Chemical Compostion and Mechanical Properties:
Standard: customized sizes as per your need.
Size: M16-M56 (1/4-1 3/4) or as per customers technical drawings showed.
Material: ASTM A193 B7, A194 B8
Delivery time: 10-15 days are available.
Salt spray time: 2 hours, 24 hours, 48 hours, 96 hours, 1000 hours we can do as per need. And can offer with salt spray checking report.
Surface Finish: plain finish, zinc plating, chromate, nickel plating, copper finish, dacromet, waxing finish, anti-rust treatment.
Appearance: clear shiny surface, with complete neat body, without burrs and sharps. Inspection equipment: Hardness test, torque test, salt . endurance test, mechanical sizes test, as per your need.
Stub Bolt A193 B7 Chemical Compostion and Mechanical Properties:
| Specification | Material | Nominal Size (In.) | Mechanical Properties | ||||||
| Minimum Tempering Temperature °F |
Elongation in 4D, min, % |
Yield Strength, min, 0.2 % offset, ksi |
Tensile Strength, min, ksi |
Reduction of Area, min, % |
Hardness, max |
Finish Treatment |
|||
| ASTM A193 Grade B7 |
AISI 4140, 4142, 4105 | 1/2 to 2-1/2 | 1100 | 16 | 105 | 125 | 50 | 321HB or 35HRC |
Black Oxide Zinc Plated Nickel Plated Phosphated HDG Dacromet Cadmium Plated PTFE(Teflon) |
| 2-1/2 to 4 | 95 | 115 | |||||||
| ASTM A193 Grade B7M |
AISI 4140, 4142, 4105 | 1/2 to 4 | 1150 | 18 | 80 | 100 | 235HB or 99HRB | ||
| ASTM A193 Grade B16 |
CrMoVa Alloy Steel | 1/2 to 2-1/2 | 1200 | 18 | 105 | 125 | 50 | 321HB or 35HRC | |
| 2-1/2 to 4 | 17 | 95 | 110 | 45 | |||||
| Specification | Material | Nominal Size (In.) | Minimum Tempering Temperature °F |
Proof Load Stress (ksi) | Hardness Rockwell | Nut Type | |||
| Min | Max | ||||||||
| ASTM A194 Grade 2H | Medium Carbon Steel, Quenched and Tempered | 1/2 to 4 | 850 | 175 | C24 | C35 | Heavy hex nut Hex thin nut Hex nut |
||
| ASTM A194 Grade 2HM | Medium Carbon Steel, Quenched and Tempered | 1/2 to 4 | 1150 | 150 | 159 | 235 | |||
| ASTM A194 Grade 4 | Medium Carbon Alloy Steel, Quenched and Tempered | 1/2 to 4 | 1100 | 175 | C24 | C35 | |||
| ASTM A194 Grade 7 | Medium Carbon Alloy Steel, Quenched and Tempered | 1/2 to 4 | 1100 | 175 | C24 | C35 | |||
| ASTM A194 Grade 7M | Medium Carbon Alloy Steel, Quenched and Tempered | 1/2 to 4 | 1150 | 150 | 159 | 235 | |||
