Spacer Ring Flange A516 GR 60

Name: Spacer Ring Flange A516 GR 60
SKU: DW SPF-3
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Ring Spacer Flange Manufacturer Duwa supplies ASTM A516 GR60 Flat Face Ring Spacer Flange, ASME B16.48, 1/2-24 Inch

Request a quote

Detail Information

Name: Spacer Ring Flange.
Type: Spectacle Flange.
Material: ASTM A516 GR60
Face: FF.
Standard: ASME B16.48
Pressure: 150LB.
Size: 1/2-24 Inch (DN15-DN600).

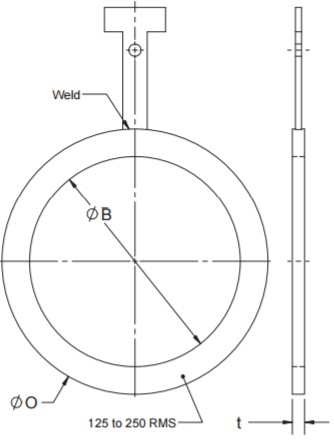

ASME B16.48 150LB Spacer Ring Flange Dimensions

NPS	Inside Diameter B		Outside Diameter O		Thk t		Bld Wgt	Spr Wgt
NPS	In.	mm.	In.	mm.	In.	mm.	Bld Wgt	Spr Wgt
1/2	0.62	16	1.75	44	0.12	3	0.2	0.1
3/4	0.82	21	2.12	54	0.12	3	0.2	0.1
1	1.05	27	2.50	64	0.12	3	0.2	0.1
1 1/4	1.66	42	2.88	73	0.25	6	0.5	0.2
1 1/2	1.90	48	3.25	83	0.25	6	0.6	0.3
2	2.38	60	4.00	102	0.25	6	0.6	0.3
2 1/2	2.88	73	4.75	121	0.25	6	1.2	0.6
3	3.50	89	5.25	133	0.25	6	1.8	0.9
3 1/2	4.00	102	6.25	159	0.38	10	2.2	1.1
4	4.50	114	6.75	171	0.38	10	2.6	1.3
5	5.56	141	7.62	194	0.38	10	4.4	2.2
6	6.62	168	8.62	219	0.50	13	6.2	3.1
8	8.62	219	10.88	276	0.50	13	12.7	6.4
10	10.75	273	13.25	337	0.62	16	21.1	10.6
12	12.75	324	16.00	406	0.75	19	37.3	18.6
14	14.00	356	17.62	448	0.75	19	52.6	26.3
16	16.00	406	20.12	511	0.88	22	76.6	38.3
18	18.00	457	21.50	546
