ASTM A105 SLIP ON FLANGE, 300 LB, 20 INCH
Model Number: DW SOF-5
Key Specifications / Features
China ASTM A105 Slip On Flange Manufacturer Duwa Piping Offers ASTM A105 Slip On Flanges, Class 300 (PN20), Size 20 Inch, bolts connection, Raised Face, ANSI B16.5
Detail Information
Name: ASTM A105 Slip On Flange.
Type: Slip On Flange.
Materials: ASTM A105.
Face: RF.
Standards: ANSI B16.5.
Pressure: 300 LB (PN20).
ASME/ANSI B16.5 300lb Slip on Flange Standard Dimensions & Weight
Type: Slip On Flange.
Materials: ASTM A105.
Face: RF.
Standards: ANSI B16.5.
Pressure: 300 LB (PN20).
Size: 20 Inch

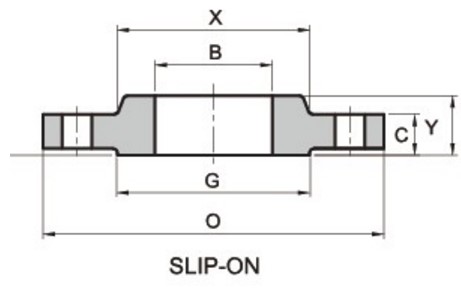

ASME/ANSI B16.5 300lb Slip on Flange Standard Dimensions & Weight
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Bore | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
Approx. Weight | ||
| inch | dn | O | C | X | G | Y | B | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2" | 15 | 95.5 | 14.2 | 38.1 | 35.1 | 22.4 | 22.4 | 66.5 | 15.7 | 4 | 1/2" | 0.7 | 1.5 |
| 3/4" | 20 | 117. 5 | 15.7 | 47.8 | 42.9 | 25.4 | 27.7 | 82.6 | 19.1 | 4 | 5/8" | 1.2 | 2.6 |
| 1" | 25 | 124. 0 | 17.5 | 53.8 | 50.8 | 26.9 | 34.5 | 88.9 | 19.1 | 4 | 5/8" | 1.4 | 3.1 |
| 1-1/4" | 32 | 133. 5 | 19.1 | 63.5 | 63.5 | 26.9 | 43.2 | 98.6 | 19.1 | 4 | 5/8" | 1.8 | 4 |
| 1-1/2" | 40 | 155. 5 | 20.6 | 69.9 | 73.2 | 30.2 | 49.5 | 114.3 | 22.4 | 4 | 5/8" | 2.7 | 6 |
| 2" | 50 | 165. 0 | 22.4 | 84.1 | 91.9 | 33.3 | 62 | 127 | 19.1 | 8 | 5/8" | 3.2 | 7 |
| 2-1/2" | 65 | 190. 5 | 25.4 | 100.1 | 104.6 | 38.1 | 74.7 | 149.4 | 22.4 | 8 | 3/4" | 4.5 | 9.9 |
| 3" | 80 | 209. 5 | 28.4 | 117.3 | 127 | 42.9 | 90.7 | 168.1 | 22.4 | 8 | 3/4" | 5.9 | 13 |
| 3-1/2" | 90 | 228. 5 | 30.2 | 133.4 | 139.7 | 44.5 | 103. 4 | 184.2 | 22.4 | 8 | 3/4" | 7.5 | 16.5 |
| 4" | 100 | 254. 0 | 31.8 | 146.1 | 157.2 | 47.8 | 116. 1 | 200.2 | 22.4 | 8 | 3/4" | 10 | 22 |
| 5" | 125 | 279. 5 | 35.1 | 177.8 | 185.7 | 50.8 | 143. 8 | 235 | 22.4 | 8 | 3/4" | 12.5 | 27.5 |
| 6" | 150 | 317. 5 | 36.6 | 206.2 | 215.9 | 52.3 | 170. 7 | 269.7 | 22.4 | 12 | 3/4" | 16.5 | 36.4 |
| 8" | 200 | 381. 0 | 41.1 | 260.4 | 269.7 | 62 | 221. 5 | 330.2 | 25.4 | 12 | 7/8" | 25.5 | 56 |
| 10" | 250 | 444. 5 | 47.8 | 320.5 | 323.9 | 66.5 | 276. 4 | 387.4 | 28.4 | 16 | 1" | 35 | 77 |
| 12" | 300 | 520. 5 | 50.8 | 374.7 | 381 | 73.2 | 327. 2 | 450.9 | 31.8 | 16 | 1 1/8" | 52 | 115 |
| 14" | 350 | 584. 0 | 53.8 | 425.5 | 412.8 | 76.2 | 359. 2 | 514..4 | 31.8 | 20 | 1 1/8" | 73 | 161 |
| 16" | 400 | 647. 5 | 57.2 | 482.6 | 469.9 | 82.6 | 410. 5 | 571.5 | 35.1 | 20 | 1 1/4" | 88 | 194 |
| 18" | 450 | 711. 0 | 60.5 | 533.4 | 533.4 | 88.9 | 461. 8 | 628.7 | 35.1 | 24 | 1 1/4" | 115 | 253 |
| 20" | 500 | 774. 5 | 63.5 | 587.2 | 584.2 | 95.3 | 513. 1 | 685.8 | 35.1 | 24 | 1 1/4" | 139 | 306 |
| 24" | 600 | 914. 5 | 69.9 | 701.5 | 692.2 | 106. 4 | 616. 0 | 812.8 | 41.1 | 24 | 1 1/2" | 212 | 46 |
