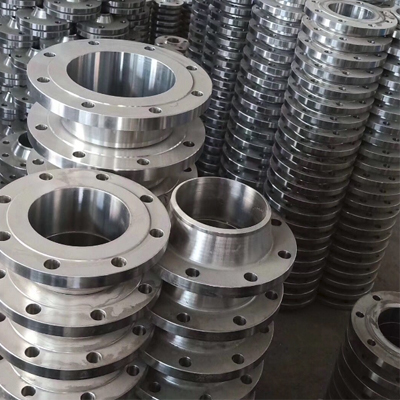

A350 LF2 Long Weld Neck Flange 600LBS
Key Specifications / Features
China A350 LF2 Long Weld Neck Flange 600LBS manufacturer Duwa Piping supplies Long Welding Neck Flange (LWN) for carbon steel with 150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb etc
Request a quote
Detail Information
Our company offers a wide range of flanges like A350 LF2 Long Weld Neck Flange 600LBS,LWN Flange, SO, WN, BL, SW,LJ etc., include 150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb with raised face, flat face, tongue, groove face etc., which is precisely engineered in accordance with international quality standards totally. We offer these flanges in various dimensions as per the specifications provided by our clients.
Ex-works time can be shorten to 3 days
EN10204 3.1 certificate can be supplied.
Ex-works time can be shorten to 3 days
EN10204 3.1 certificate can be supplied.

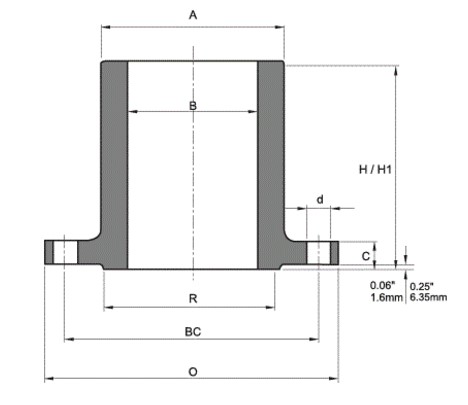

Dimension of Long Weld Neck Flange 600LBS
| Nominal Pipe Size |
Outside Diameter |
Thickness of Flange Min. |
O.D. of Raised Face |
Hub Diameter at Bevel |
Diameter of Bore |
Length Through Hub | Diameter of Bolt Circle |
Number of Holes |
Diameter of Holes |
|
| O | C | R | A | B | H | H1 | BC | d | ||
| 1" | 124. 0 | 17.5 | 50.8 | 54 | 25.4 | 228. 6 | 304. 8 | 88.9 | 4 | 19 |
| 1-1/4" | 133. 5 | 20.6 | 63.5 | 63.5 | 31.8 | 228. 6 | 304. 8 | 98.4 | 4 | 19 |
| 1-1/2" | 155. 5 | 22.2 | 73 | 69.8 | 38.1 | 228. 6 | 304. 8 | 114. 3 | 4 | 22.5 |
| 2" | 165. 0 | 25.4 | 92.1 | 82.5 | 50.8 | 228. 6 | 304. 8 | 127. 0 | 8 | 19 |
| 2-1/2" | 190. 5 | 28.6 | 104. 8 | 100. 0 | 63.5 | 228. 6 | 304. 8 | 149. 2 | 8 | 22.5 |
| 3" | 209. 5 | 31.8 | 127. 0 | 117. 5 | 76.2 | 228. 6 | 304. 8 | 168. 1 | 8 | 22.5 |
| 3-1/2" | 228. 5 | 34.9 | 139. 7 | 133. 4 | 88.9 | 228. 6 | 304. 8 | 184. 2 | 8 | 25.5 |
| 4" | 273. 0 | 38.1 | 157. 2 | 152. 4 | 101. 6 | 228. 6 | 304. 8 | 215. 9 | 8 | 25.5 |
| 5" | 330. 0 | 44.5 | 185. 7 | 190. 5 | 127. 0 | 228. 6 | 304. 8 | 266. 7 | 8 | 28.5 |
| 6" | 355. 5 | 47.6 | 215. 9 | 222. 2 | 152. 4 | 228. 6 | 304. 8 | 292. 1 | 12 | 28.5 |
| 8" | 419. 0 | 55.6 | 269. 9 | 273. 0 | 203. 2 | 228. 6 | 304. 8 | 349. 3 | 12 | 31.8 |
| 10" | 508. 0 | 63.5 | 323. 9 | 342. 9 | 254. 0 | 228. 6 | 304. 8 | 431. 8 | 16 | 35.1 |
| 12" | 559. 0 | 66.7 | 381. 0 | 400. 0 | 304. 8 | 228. 6 | 304. 8 | 489. 0 | 20 | 35.1 |
| 14" | 603. 5 | 69.9 | 412. 8 | 431. 8 | 355. 6 | 228. 6 | 304. 8 | 527. 1 | 20 | 38.1 |
| 16" | 686. 0 | 76.2 | 469. 9 | 495. 3 | 406. 4 | 228. 6 | 304. 8 | 603. 3 | 20 | 41.2 |
| 18" | 743. 0 | 82.6 | 533. 4 | 546. 1 | 457. 2 | 228. 6 | 304. 8 | 654. 1 | 20 | 44.5 |
| 20" | 813. 0 | 88.9 | 584. 2 | 609. 6 | 508. 0 | 228. 6 | 304. 8 | 723. 9 | 24 | 44.5 |
| 24" | 940. 0 | 101. 6 | 692. 2 | 717. 5 | 609. 6 | 228. 6 | 304. 8 | 838. 2 | 24 | 50.8 |
