600LB Threaded Flange ANSI B16.5 Carbon Steel
Model Number: DW TF-6
Key Specifications / Features
China 600LB Threaded Flange ANSI B16.5 Carbon Steel Manufacturer Duwa provides ASTM A105 Threaded Flange, Carbon Steel, DN15, PN20, Flanged RF Ends, Golden Surface, SCRD.
Contact Supplier
Detail Information
Name: 600LB Threaded Flange ANSI B16.5 Carbon Steel.
Type: Carbon Steel Threaded Flange.
Material: ASTM A105.
Size: 1/2 Inch (DN15).
Pressure: 150 LB (PN20).
Ends: RF.
Surface Treatment: Golden.
600lb Threaded Flange ASME/ANSI B16.5 Standard Dimensions & Weight
Type: Carbon Steel Threaded Flange.
Material: ASTM A105.
Size: 1/2 Inch (DN15).
Pressure: 150 LB (PN20).
Ends: RF.
Surface Treatment: Golden.

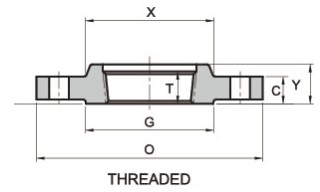

600lb Threaded Flange ASME/ANSI B16.5 Standard Dimensions & Weight
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
Approx. Weight | ||
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2" | 15 | 95.5 | 14.2 | 38.1 | 35.1 | 22.4 | 22.4 | 66.5 | 15.7 | 4 | 1/2" | 0.9 | 2 |
| 3/4" | 20 | 117. 5 | 15.7 | 47.8 | 42.9 | 25.4 | 27.7 | 82.6 | 19.1 | 4 | 5/8" | 1.4 | 3.1 |
| 1" | 25 | 124. 0 | 17.5 | 53.8 | 50.8 | 26.9 | 34.5 | 88.9 | 19.1 | 4 | 5/8" | 1.8 | 4 |
| 1-1/4" | 32 | 133. 5 | 20.6 | 63.5 | 63.5 | 28.4 | 43.2 | 98.6 | 19.1 | 4 | 5/8" | 2.3 | 5 |
| 1-1/2" | 40 | 155. 5 | 22.4 | 69.9 | 73.2 | 31.8 | 49.5 | 114.3 | 22.4 | 4 | 3/4" | 3.3 | 7.3 |
| 2" | 50 | 165. 0 | 25.4 | 84.1 | 91.9 | 36.6 | 62 | 127 | 19.1 | 8 | 5/8" | 4 | 8.8 |
| 2-1/2" | 65 | 190. 5 | 28.4 | 100.1 | 104.6 | 41.1 | 74.7 | 149.4 | 22.4 | 8 | 3/4" | 5.5 | 12.1 |
| 3" | 80 | 209. 5 | 31.8 | 117.3 | 127 | 46 | 90.7 | 168.1 | 22.4 | 8 | 3/4" | 7.4 | 16.3 |
| 3-1/2" | 90 | 228. 5 | 35.1 | 133.4 | 139.7 | 49.3 | 103.4 | 184.2 | 25.4 | 8 | 7/8" | 9.2 | 20.2 |
| 4" | 100 | 273. 0 | 38.1 | 152.4 | 157.2 | 53.8 | 116.1 | 215.9 | 25.4 | 8 | 7/8" | 16.8 | 37 |
| 5" | 125 | 330. 0 | 44.5 | 189 | 185.7 | 60.5 | 143.8 | 266.7 | 28.4 | 8 | 1" | 28.5 | 62.8 |
| 6" | 150 | 355. 5 | 47.8 | 222.3 | 215.9 | 66.5 | 170.7 | 292.1 | 28.4 | 12 | 1" | 36.2 | 79.8 |
| 8" | 200 | 419. 0 | 55.6 | 273.1 | 269.7 | 76.2 | 221.5 | 349.3 | 31.8 | 12 | 1 1/8" | 21.5 | 114 |
| 10" | 250 | 508. 0 | 63.5 | 342.9 | 323.9 | 85.9 | 276.4 | 431.8 | 35.1 | 16 | 1 1/4" | 76.2 | 168 |
| 12" | 300 | 559. 0 | 66.5 | 400.1 | 381 | 91.9 | 327.2 | 489 | 35.1 | 20 | 1 1/4" | 89.5 | 197 |
| 14" | 350 | 603. 5 | 69.9 | 431.8 | 412.8 | 93.7 | 359.2 | 527.1 | 38.1 | 20 | 1 3/8" | 102 | 225 |
| 16" | 400 | 686. 0 | 76.2 | 495.3 | 469.9 | 106. 4 | 410.5 | 603.3 | 41.1 | 20 | 1 1/2" | 150 | 330 |
| 18" | 450 | 743. 0 | 82.6 | 546.1 | 533.4 | 117. 3 | 461.8 | 654.1 | 44.5 | 20 | 1 5/8" | 180 | 397 |
