EN 1984 Gate Valve, DN50, PN40, 1.0619, STL, EN 1092-1 B1

EN 1984 Gate Valve, DN50, PN40, 1.0619, STL, EN 1092-1 B1

Key Specifications / Features

DN50 PN40 gate valve is made according to EN1984 standard. The valve body is made of 1.0619+STL. It has the structural characteristics of bolt cover, exposed rod and bracket. Its connection mode is EN1092-1 B1. And it has handwheel operation mode.

Categories: Gate Valve

Tags: , ,

Request a quote

Quick Detail

Product Description
Type Gate Valve
Size DN50
Pressure PN40
Connection EN1092-1 B1
Operation Handwheel
Body Material 1.0619+STL
Design Norm EN 1984
Face to Face Dimension EN 558-26
Flange Dimension EN 1092-1/B1
Test & Inspection Code EN 12266-1/2
Temperature -29 - 425°C
Applicable Medium Water, Oil and Gas

Detail Infomation

DN50 PN40 Cast Steel Gate Valve EN 1984 Handwheel EN 1092-1 B1


1. Multiple optional materials with strong selectivity;
2. Compact structure, flexible switching, and good sealing performance.

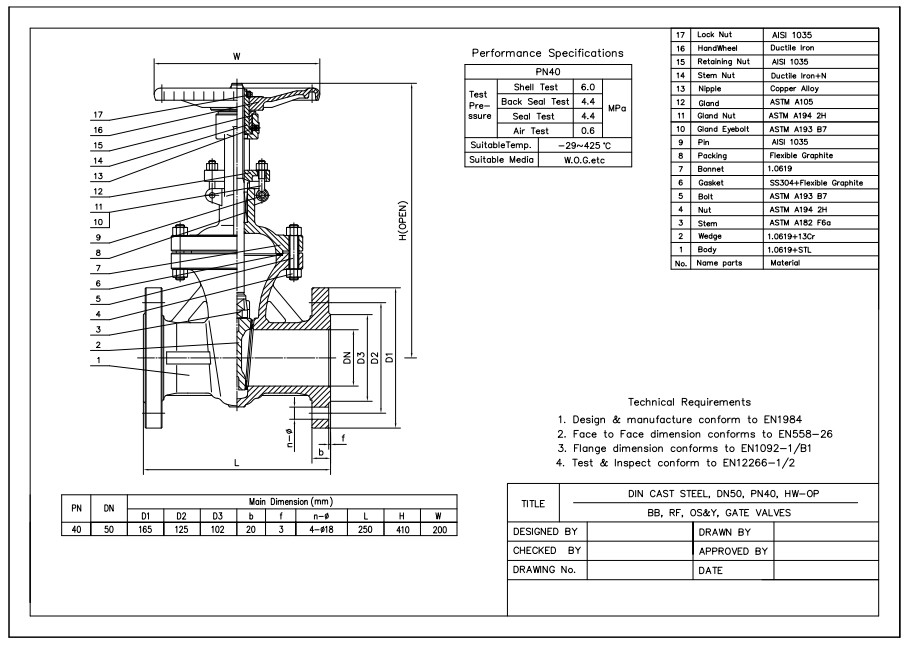

Technical Drawing

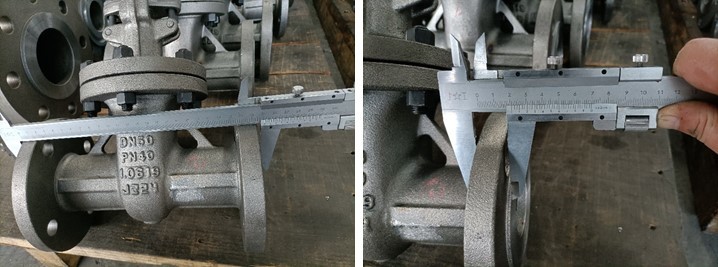

Dimension Checking

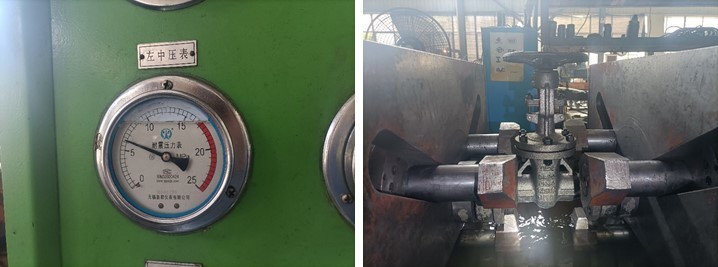

Pressure Testing

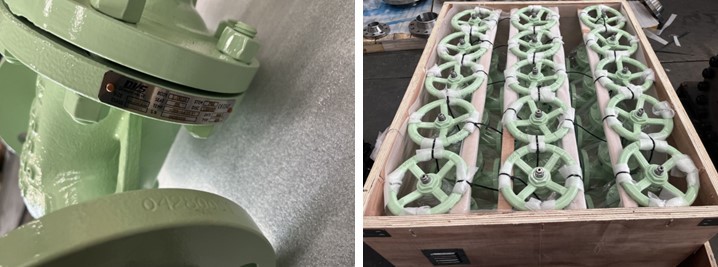

Nameplate & Packing

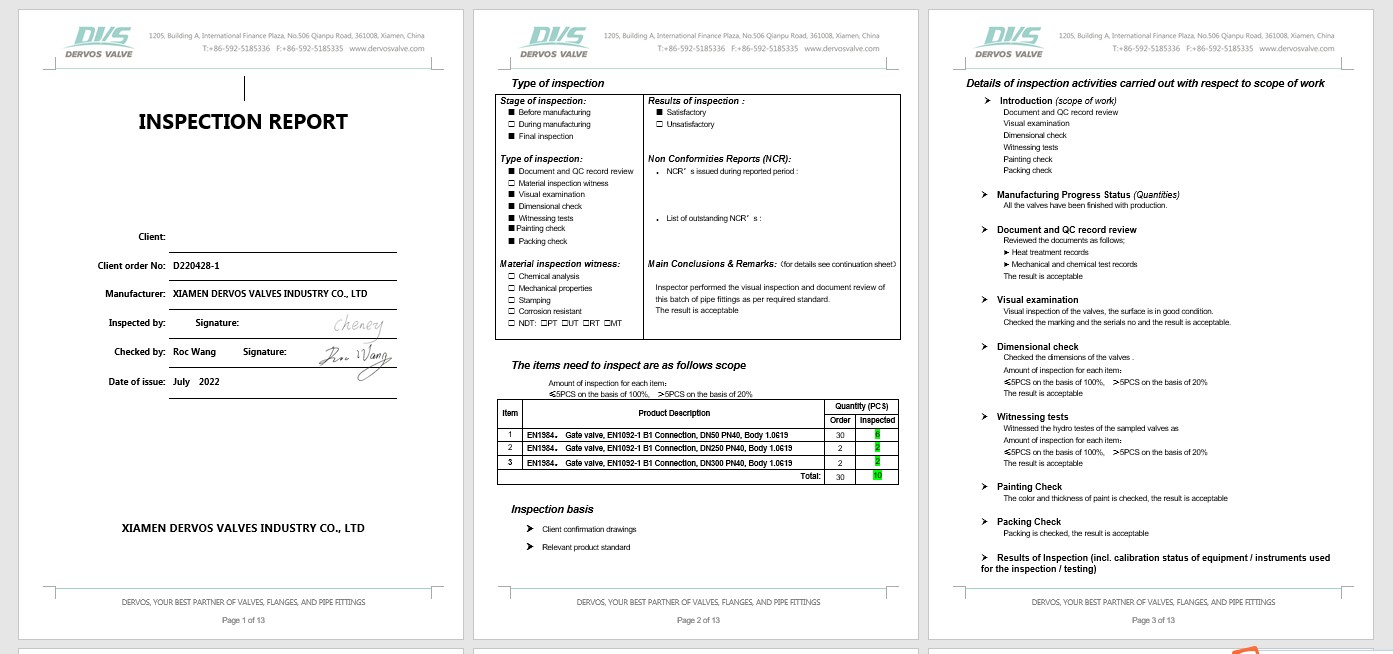

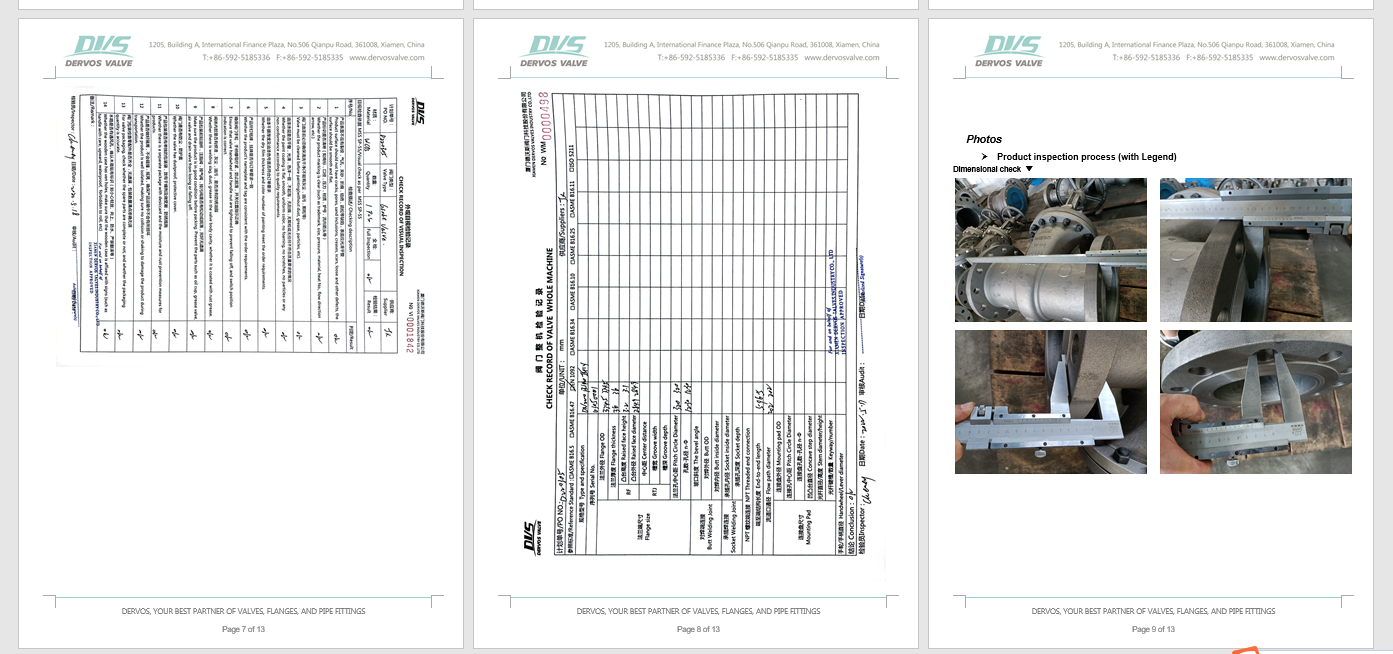

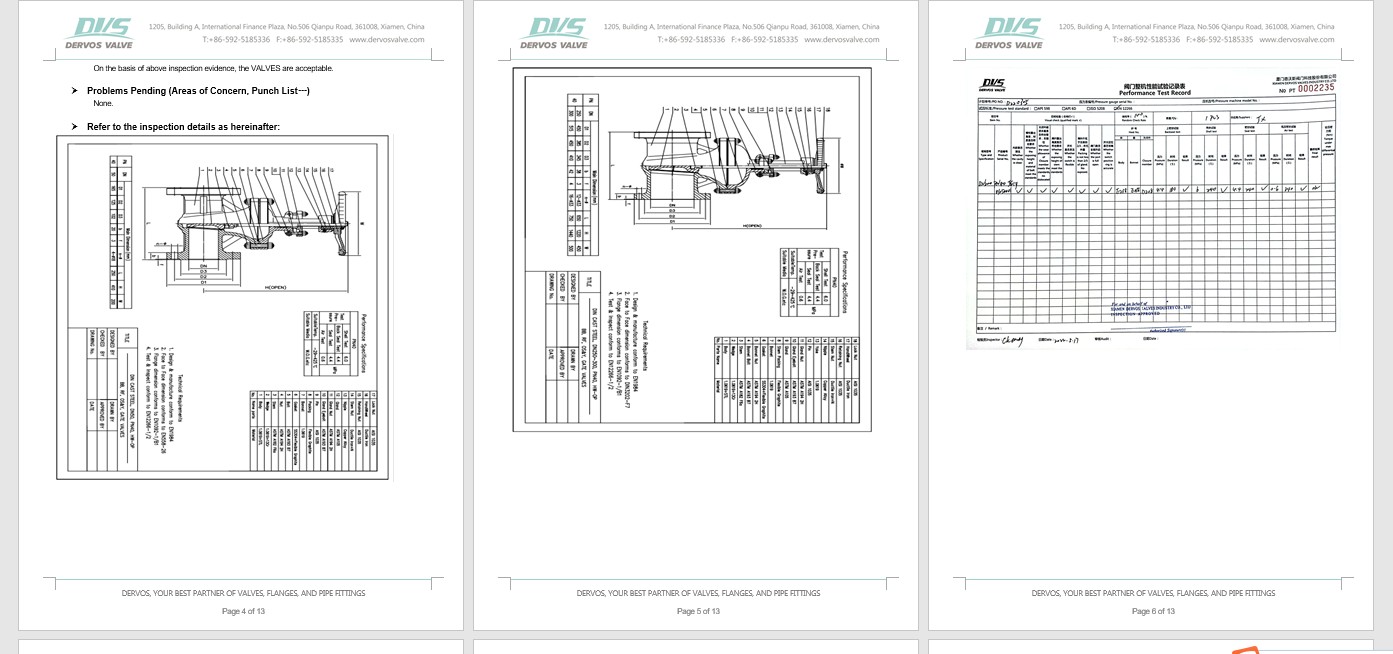

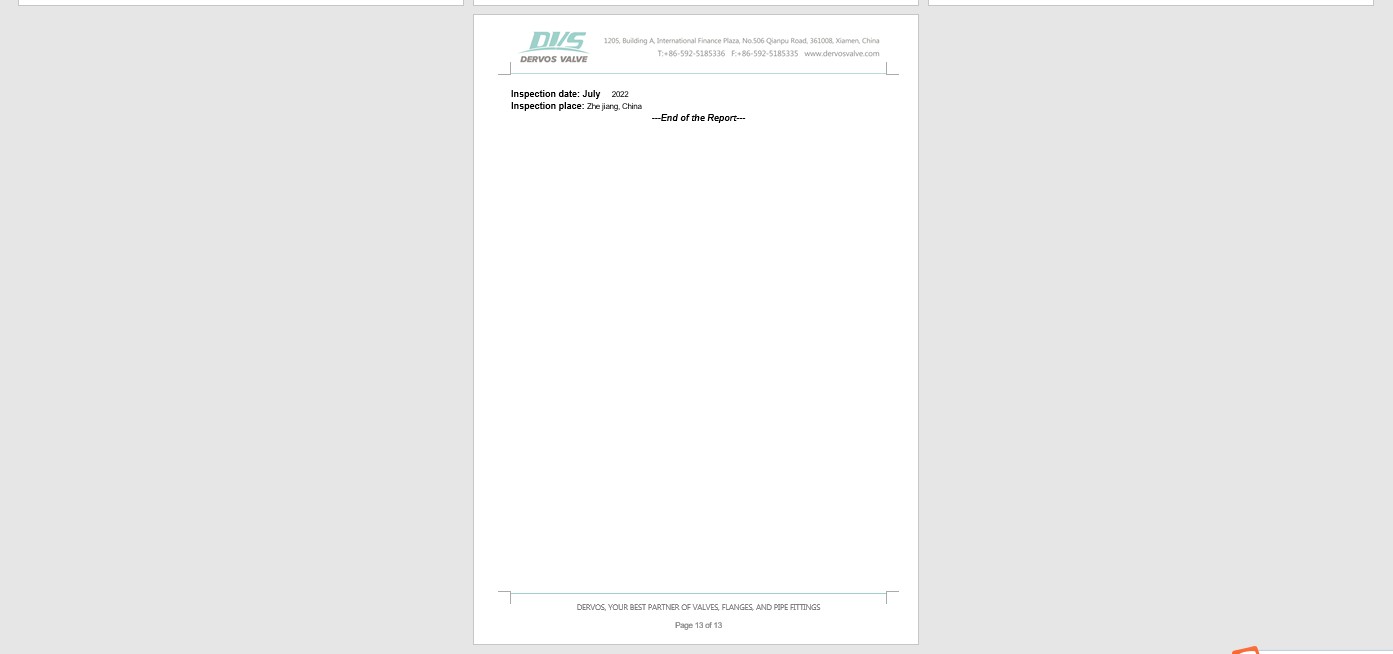

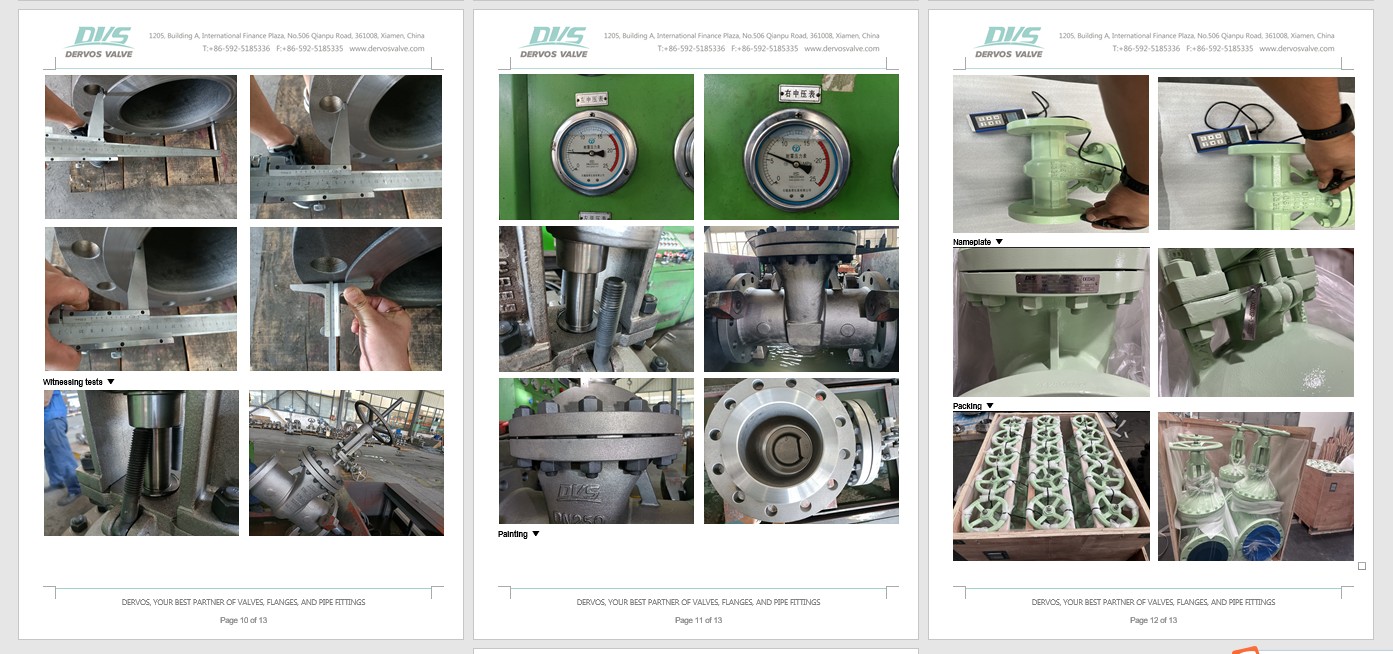

Inspection report
