Key Specifications / Features

DN100 PN40 check valve is made according to API 594 standard. The valve body is made of A105. It has the structural characteristics of dual plate and wafer type. Its connection mode is wafer.

Categories: Wafer Check Valve

Tags: , ,

Request a quote

Quick Detail

Product Description
Type Check Valve
Size DN100
Pressure PN40
Connection Wafer
Body Material A105
Design Norm API 594
Pressure-temperature ANSI B16.34
Flange Ends EN 1092-1
Face to Face Dimension Customer Request
Test & Inspection Code API 598
Temperature ≤425°C
Applicable Medium Water, Oil and Gas


Detail Infomation

API 594 DN100 PN40 Dual Plate Wafer Check Valve A105


1. Safe and reliable structural performance, strong anti-interference, and fast closing speed;
2. Due to its shorter structural length than regular check valves, it is suitable for occasions with limited installation space.

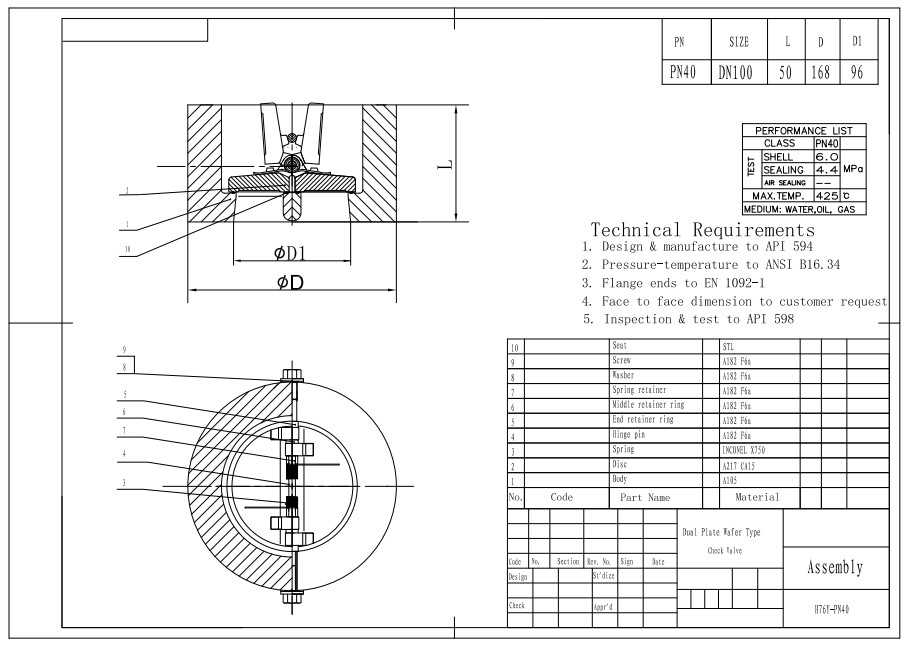

Technical Drawing

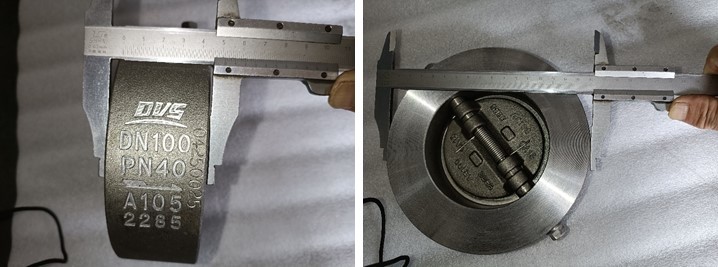

Dimension Checking

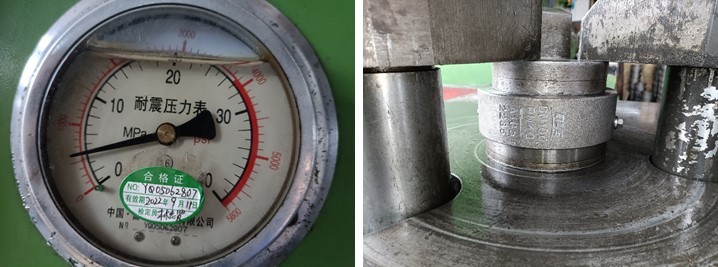

Pressure Testing

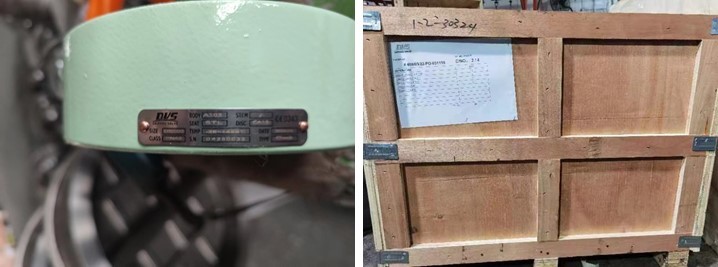

Nameplate & Packing

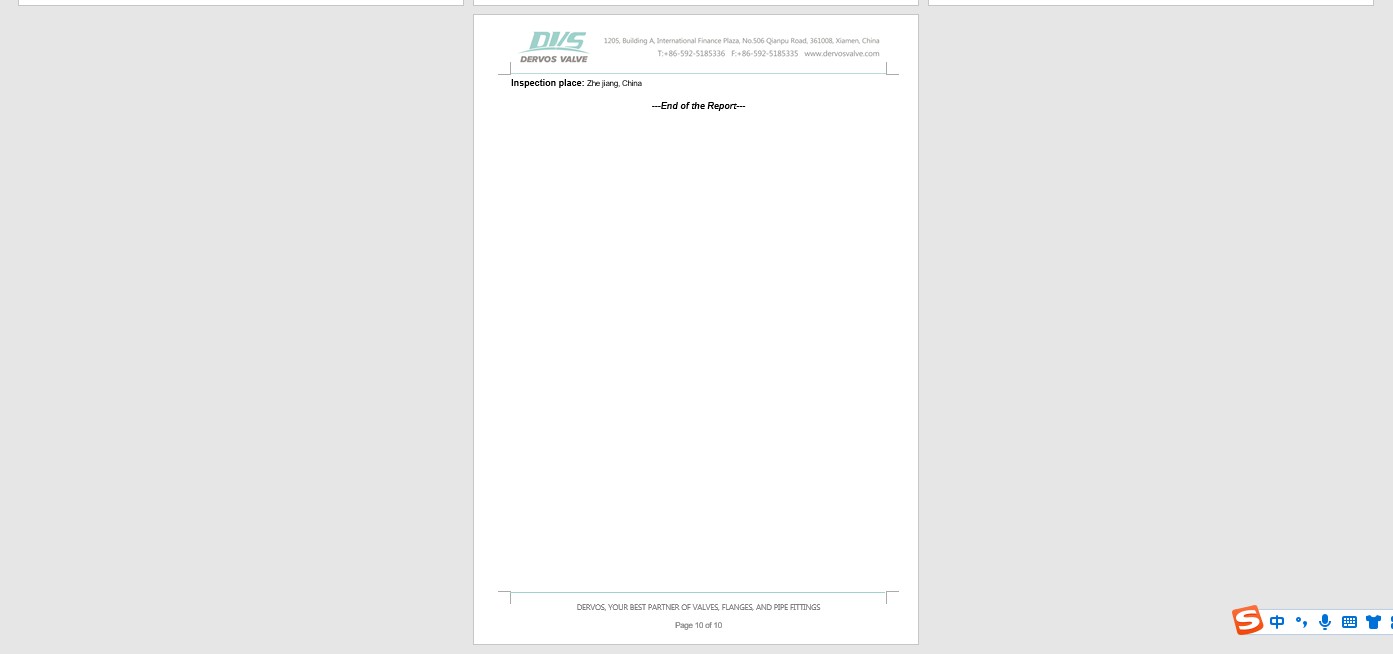

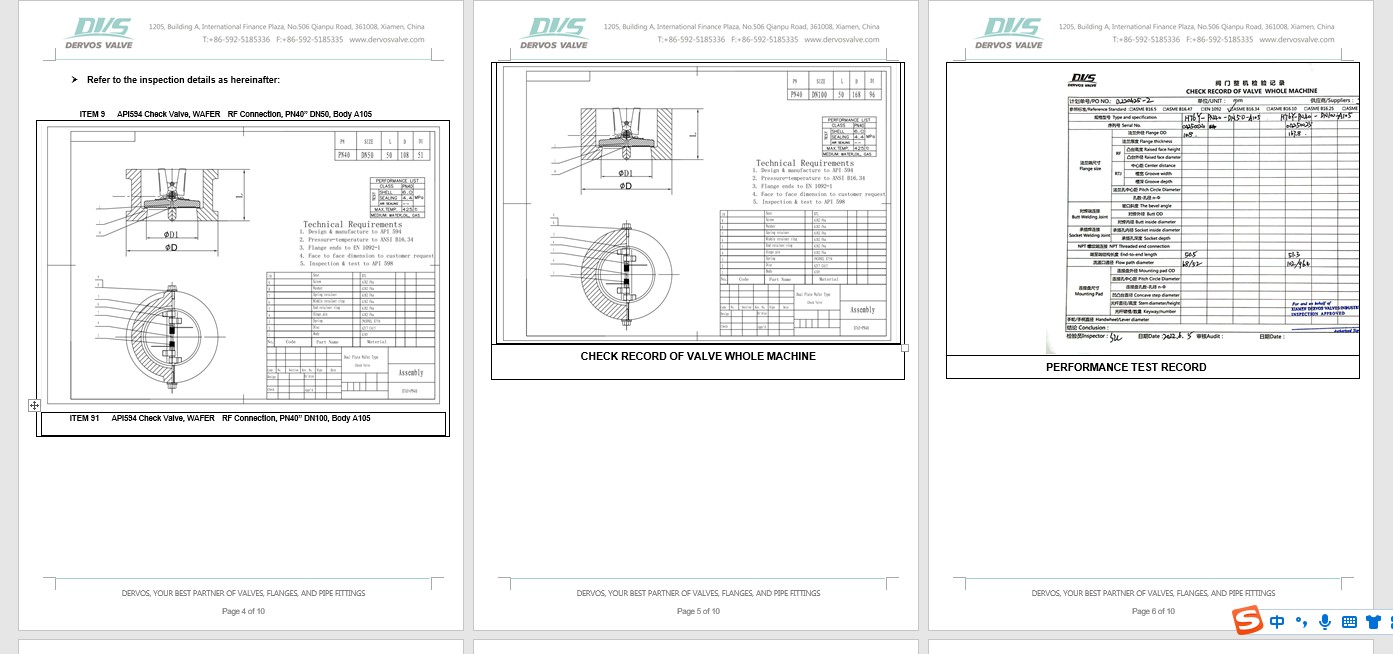

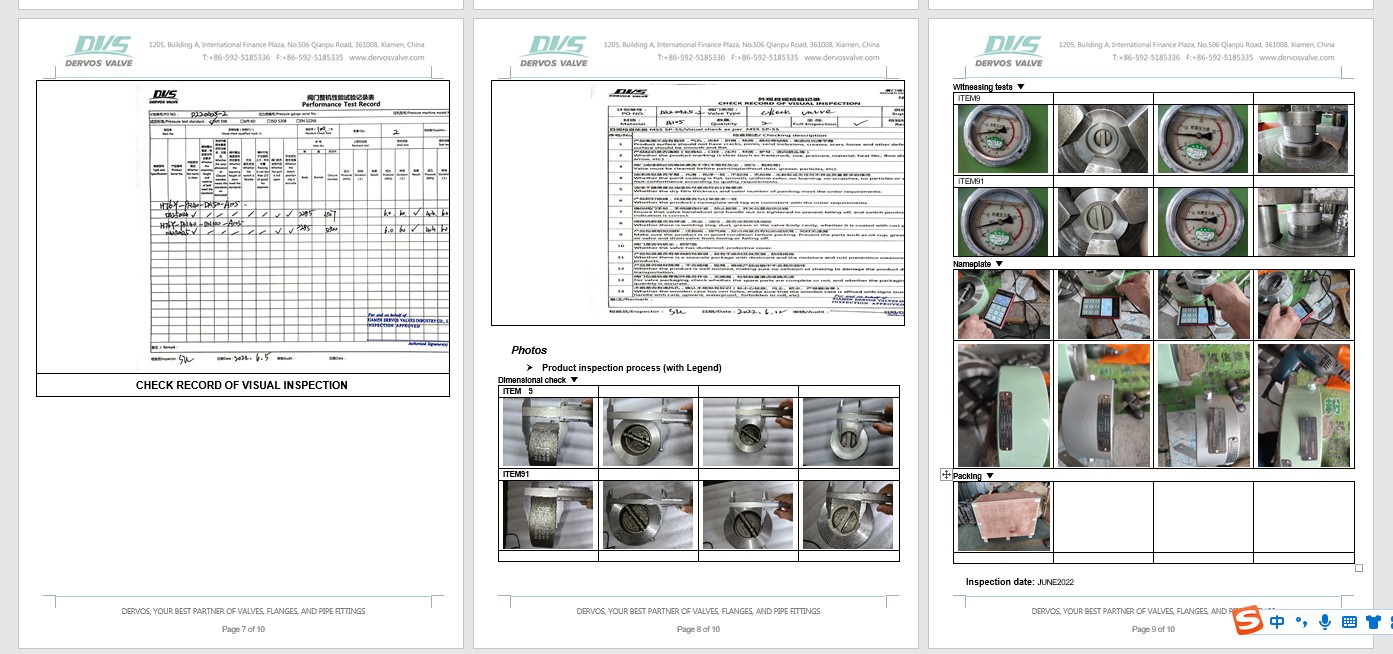

Inspection report
