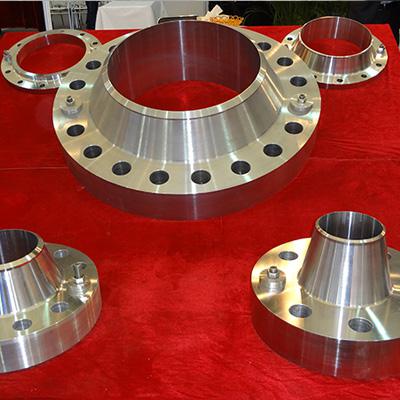

WN Flange 3 Inch A182 Gr F11 CL2 RF 600# ASME B16.5

Name: WN Flange 3 Inch A182 Gr F11 CL2 RF 600# ASME B16.5
SKU: DB-Flange-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

A182 Gr F11 CL2 RF WN Flange Manufacturer in China Derbo Supplies A182 Gr F11 CL2 RF WN Flange, 3 Inch,600# ,ASME B16.5

Request a quote

Detail Information

Type:Alloy WN Flange
Manufacture Method:Forged
Standard and material: A182 Gr F11 CL2
Size: 3 Inch 600 #
Surface Treatment:Oiled/Painting
Independence Inspection:Chemical Test,Mechanical Test
Third Party Inspection:SGS,BV,INTERNET ECT
Application:Pipe Connection
Payment Terms：TT/LC,West Union,Paypal,O/A
Delivery Time:7-25 days after received the deposit

Chemical Composition and Mechanical Property For ASTM A182
Steel Grade	Chemcial Composition							Mechanical performance
	C	Si	Mn	P(Max)	S(Max)	Cr	Mo	Tensile Strength	Yield Strength (Min)
	C	Si	Mn	P(Max)	S(Max)	Cr	Mo	Mpa	Mpa
F11 CL1	0.05-0.15	0.5-1.0	0.3-0.6	0.03	0.03	1.0-1.5	0.44-0.65	415	205
F11 CL2	0.10-0.20	0.5-1.0	0.3-0.8	0.04	0.04	1.0-1.5	0.44-0.65	485	275
F11 CL3	0.10-0.20	0.5-1.0	0.3-0.8	0.04	0.04	1.0-1.5	0.44-0.65	515	310
F12 CL1	0.05-0.15	≤0.5	0.3-0.6	0.045	0.045	0.8-1.25	0.44-0.65	415	220
F12 CL2	0.10-0.20	0.10-0.60	0.3-0.8	0.04	0.04	0.8-1.25	0.44-0.65	485	275
F21	0.05-0.15	≤0.5	0.3-0.6	0.04	0.04	2.7-3.3	0.8-1.06	515	310
