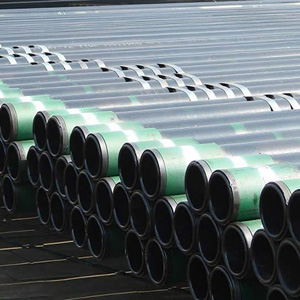

T90-1 OCTG Casing, API Spec 5CT, 32.3 lb/ft, Range 3, BTC
Key Specifications / Features
China T90-1 OCTG Casing Manufacturer Derbo offers T90-1 OCTG Casing, API Spec 5CT, W.T 32.3 lb/ft, size 9 5/8 Inch, Length Range 3, BTC Ends.
Request a quote
Detail Information
Type: OCTG Casing.
Material: T90-1.
Size: 9 5/8 Inch.
W.T: 32.3 lb/ft.
Length: RANGE 3.
Standard: API Spec 5CT.
Ends: BTC.
Material: T90-1.
Size: 9 5/8 Inch.
W.T: 32.3 lb/ft.
Length: RANGE 3.
Standard: API Spec 5CT.
Ends: BTC.
| Item | Tolerance | |
| OD | D<114.3mm | ±0.79mm |
| D≥114.3mm | +1%D | |
| -0.5%D | ||
| WT | -12.50% | |
| Weight | Single Lengths | +6.5%,-3.5% |
| Carload 18 144 kg (40 000 lb) or more | -1.75% | |
| Carload less than 18 144 kg (40 000 lb) | – 3,5 % | |
| Chemical Composition and Mechanical Property | |||||||||||||||||||
| Steel Grade | Type | Chemical components | Mechanical performance | Hardness Max. |
|||||||||||||||
| C | Mn | Mo | Cr | Ni(Max) | Cu(Max) | P(Max) | S(Max) | Si(Max) | Yield strength (MPa) |
Tensile strength (MPa） |
|||||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | HRC | HBW | |||||||
| T95 | 1 | - | 0.35 | - | 1.2 | 0.25d | 0.85 | 0.4 | 1.5 | 0.99 | - | 0.02 | 0.01 | - | 655 | 758 | 724 | 25.4 | 255 |
