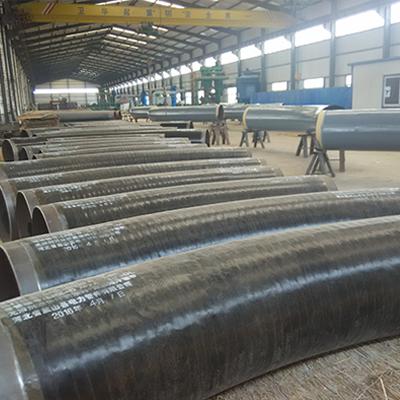

ASTM A234 WPB Bend, 6 Inch, 5D, SCH 40, ANSI B16.49
Model Number: DB-Bend-118
Key Specifications / Features
China ASTM A234 WPB Bend Manufacturer Derbo offers ASTM A234 WPB Bend, 60 Degree, Radius 5D, 6 Inch, SCH 40, ANSI B16.49, Beveled Ends.
Detail Information
Type: Factory Bend.
Material: ASTM A234 WPB.
Degree: 60Deg.
Radius: 5D.
Size: 6 Inch.
W.T: SCH 40.
Standard: ANSI B16.49.
Ends: Beveled Ends.
Material: ASTM A234 WPB.
Degree: 60Deg.
Radius: 5D.
Size: 6 Inch.
W.T: SCH 40.
Standard: ANSI B16.49.
Ends: Beveled Ends.
| Chemical Composition and Mechanical Property For ASTM A234 | |||||||||||||
| Steel Grade | Chemical Composition | Mechanical performance | |||||||||||
| C(Max) | Mn | P(Max) | S(Max) | Si(Min) | Cr(Max) | Mo(Max) | Ni(Max) | Cu(Max) | Tensile Strength (Min） |
Yield Strength (Min) |
|||
| Mpa | ksi | Mpa | ksi | ||||||||||
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1 | 0.4 | 0.15 | 0.4 | 0.4 | 415-585 | 60-85 | 240 | 35 |
