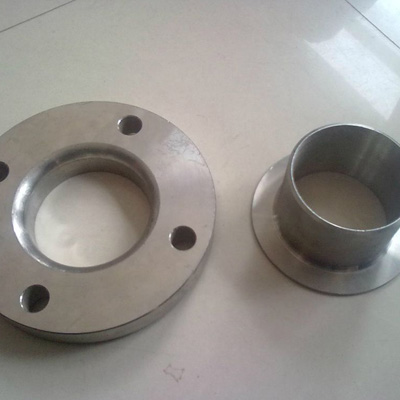

ASTM A182 F316L Lap Joint Flange, 150 LB, DN 40, RF
Model Number: DB-BL-SS-6
Key Specifications / Features
China ASTM A182 Lap Joint Flange Manufacturer Derbo offers ASTM A182 F316L Lap Joint Flange, 150 LB, 1 1/2 inch (DN 40), ANSI B16.5, and RF Face.
Contact Supplier
Detail Information
Type: Lap Joint Flange.
Material: ASTM A182 F316L.
Size: 1 1/2 inch (DN 40).
Pressure Class: 150 Lbs.
Standard: ANSI B16.5.
Type of Face: RF.
Surface Treatment: Without coating.
Material: ASTM A182 F316L.
Size: 1 1/2 inch (DN 40).
Pressure Class: 150 Lbs.
Standard: ANSI B16.5.
Type of Face: RF.
Surface Treatment: Without coating.
| Chemical Composition and Mechanical Property For ASTM A182 | ||||||||||||
| Steel Grade | Chemical Composition | Mechanical performance | ||||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | Mo | Tensile Strength (Min） |
Yield Strength (Min) |
|||
| psi | Mpa | psi | Mpa | |||||||||
| F316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0–15.0 | 16.0–18.0 | 2.00–3.00 | 495 | 70 | 175 | 25 |
