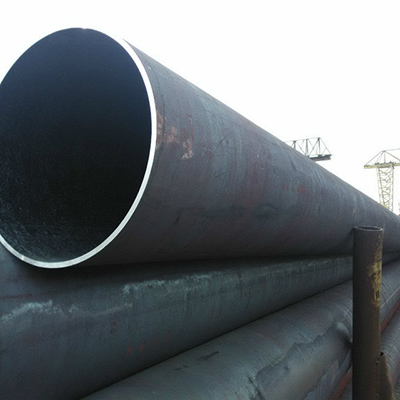

API 5L X60 PSL2 ERW Pipe, 6 Inch, 12M, Beveled Ends
Model Number: DB-CS-ERW-6
Key Specifications / Features
China API 5L X60 ERW Pipe Manufacturer Derbo offers API 5L X60 ERW Pipe, 6 inch, 12 meters, SCH.STD, varnished surface, BE Ends，API 5L PSL2, ASME B36.10.
Contact Supplier
Detail Information
Type: ERW Pipe.
Material: API 5L X60.
Size: 6 Inch.
W.T: SCH.STD.
Length: 12M.
Standard: API 5L PSL2, ASME B36.10.
Ends: Beveled Ends.
Surface Treatment: Varnish.
Material: API 5L X60.
Size: 6 Inch.
W.T: SCH.STD.
Length: 12M.
Standard: API 5L PSL2, ASME B36.10.
Ends: Beveled Ends.
Surface Treatment: Varnish.
| Tolerance for wall thickness: | |
| Wall thickness t mm(in) |
Tolerances mm(in) |
| Welded Pipe | |
| ≤5.0(0.197) | ±0.5(0.020) |
| ＞5.0(0.197) to＜15.0(0.591) | ±0.1 t |
| ≥15.0(0.591) | ±1.5(0.060) |
| Chemical Composition and Mechanical Property For PSL .2 | ||||||||||||
| Steel Grade | Chemcial Composition | Mechanical performance | ||||||||||
| C(Max) | Mn(Max) | P(Max) | S(Max) | Tensile Strength (Min） |
Tensile Strength (Max） |
Yield Strength (Min) |
Yield Strength (Max) |
|||||
| psi | Mpa | psi | Mpa | psi | Mpa | psi | Mpa | |||||
| X60N | 0.24 | 1.40 | 0.025 | 0.015 | 75400 | 520 | 110200 | 760 | 60200 | 415 | 81900 | 565 |
| X60Q | 0.18 | 1.70 | 0.025 | 0.015 | 75400 | 520 | 110200 | 760 | 60200 | 415 | 81900 | 565 |
| X60M | 0.12 | 1.60 | 0.025 | 0.015 | 75400 | 520 | 110200 | 760 | 60200 | 415 | 81900 | 565 |
