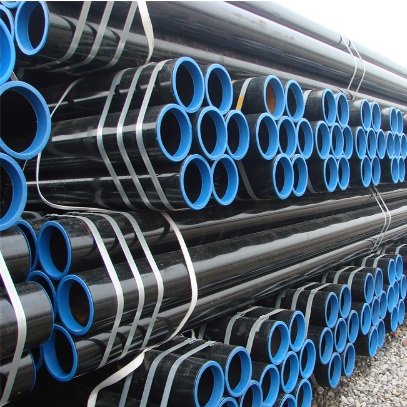

API 5L Gr.B ERW Pipe, 18 Inch, 12 Meters, SCH STD
Model Number: DB-CS-ERW-1
Key Specifications / Features
China API 5L ERW Pipe Manufacturer Derbo offers API 5L Gr.B ERW Pipe, 18 Inch, length 12M, SCH STD, black coating, API 5L PSL1 & ASME B36.10 Standard.
Detail Information
Type: ERW Pipe.
Material: API 5L Gr.B.
Size: 18 Inch.
Wall Thickness: SCH.STD.
Length: 12M.
Standard: API 5L PSL1, ASME B36.10.
Ends: Beveled Ends.
Surface Treatment: Black Coating.
Material: API 5L Gr.B.
Size: 18 Inch.
Wall Thickness: SCH.STD.
Length: 12M.
Standard: API 5L PSL1, ASME B36.10.
Ends: Beveled Ends.
Surface Treatment: Black Coating.
| Tolerance for wall thickness: | |
| Wall thickness t mm(in) |
Tolerances mm(in) |
| Welded Pipe | |
| ≤5.0(0.197) | ±0.5(0.020) |
| ＞5.0(0.197) to＜15.0(0.591) | ±0.1 t |
| ≥15.0(0.591) | ±1.5(0.060) |
| Chemical Composition and Mechanical Property For PSL .1 | |||||||||
| Steel Grade | Chemical components | Mechanical performance | |||||||
| C(Max) | Mn(Max) | P | S(Max) | Tensile Strength(Min） | Yield Strength (Min) |
||||
| Min. | Max. | psi | Mpa | psi | Mpa | ||||
| Welded Pipe | |||||||||
| B | 0.26 | 1.20 | / | 0.030 | 0.030 | 60200 | 415 | 35500 | 245 |
