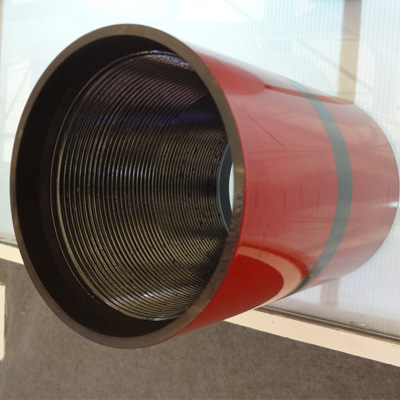

API 5CT P110 Oil Tubing EUE OD 324mm R2 Hot Rolled Painting
Model Number: DB-Oil Tubing-628
Key Specifications / Features
China API 5CT P110 Oil Tubing Company Derbo Provides API 5CT P110 Oil Tubing, EUE, OD 324mm, R2, Hot Rolled, Painting/Oiled, for Oil Transportation
Detail Information
Type: Oil Tubing.
Standard and Material: API 5CT P110.
Size: OD 324mm, R2.
Manufacture Method: Hot Rolled.
Surface Treatment: Painting/Oiled.
Third Party Inspection: SGS, BV, INTERNET, etc.
Application: Oil Transportation.
Packing: Pallet/Wooden Case/in Bundles or as Your Requirement.
Payment Terms: TT/LC, West Union, Paypal, O/A.
Delivery Time: 7-25 Days after Receiving the Deposit.
Standard and Material: API 5CT P110.
Size: OD 324mm, R2.
Manufacture Method: Hot Rolled.
Surface Treatment: Painting/Oiled.
Third Party Inspection: SGS, BV, INTERNET, etc.
Application: Oil Transportation.
Packing: Pallet/Wooden Case/in Bundles or as Your Requirement.
Payment Terms: TT/LC, West Union, Paypal, O/A.
Delivery Time: 7-25 Days after Receiving the Deposit.
| Chemical Composition | |||||||||||||
| Grade | Chemical Composition | ||||||||||||
| C | Mn | Mo | Cr | Ni | Cu | P | S | Si | |||||
| Min | Max | Min | Max | Min | Max | Min | Max | Max | Max | Max | Max | Max | |
| P110 | - | - | - | - | - | - | - | - | - | - | 0.03 | 0.02 | - |
| Mechanical Properties | |||||||||
| Grade | Yield Strength | Tensile Strength | Hardness | Allowable Hardness Variation | |||||
| Min | Max | Min | Max | ||||||
| Psi | Mpa | Psi | Mpa | Psi | Mpa | HRC | BHN | hrc | |
| P110 | 110000 | 758 | 140000 | 965 | 125000 | 862 | - | - | - |
| Lengths | |||
| Description | Range 1 | Range 2 | Range 3 |
| Tubing | 6.10-7.32 M | 8.53-9.75 M | 11.58-12.80 M |
