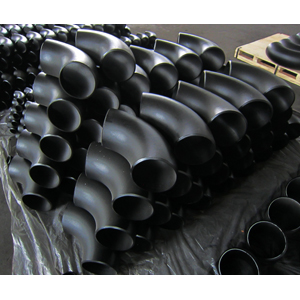

90D Long Radius Elbow, ASTM A234 WPB, 6 Inch, SCH STD
Model Number: DB-Elbow-41
Key Specifications / Features
China Long Radius Elbow Manufacturer Derbo offers 90D Long Radius Elbow, ASTM A234 Elbow, 6 Inch, SCH STD, ANSI B16.9 and Beveled Ends.
Detail Information
Type: 90D Elbow.
Material: ASTM A234 WPB.
Size: 6 Inch.
W.T: SCH STD.
Standard: ANSI B16.9.
Ends: Beveled Ends.
Material: ASTM A234 WPB.
Size: 6 Inch.
W.T: SCH STD.
Standard: ANSI B16.9.
Ends: Beveled Ends.
| Chemical Composition and Mechanical Property For ASTM A234 | |||||||||||||
| Steel Grade | Chemical Composition | Mechanical performance | |||||||||||
| C(Max) | Mn | P(Max) | S(Max) | Si(Min) | Cr(Max) | Mo(Max) | Ni(Max) | Cu(Max) | Tensile strength (Min） |
Yield Strength (Min) |
|||
| Mpa | ksi | Mpa | ksi | ||||||||||
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1 | 0.4 | 0.15 | 0.4 | 0.4 | 415-585 | 60-85 | 240 | 35 |
