Main & Auxiliary Saddle Seat Stamping Parts, Semi Trailer Fifth Wheel Base Plate
Key Specifications / Features

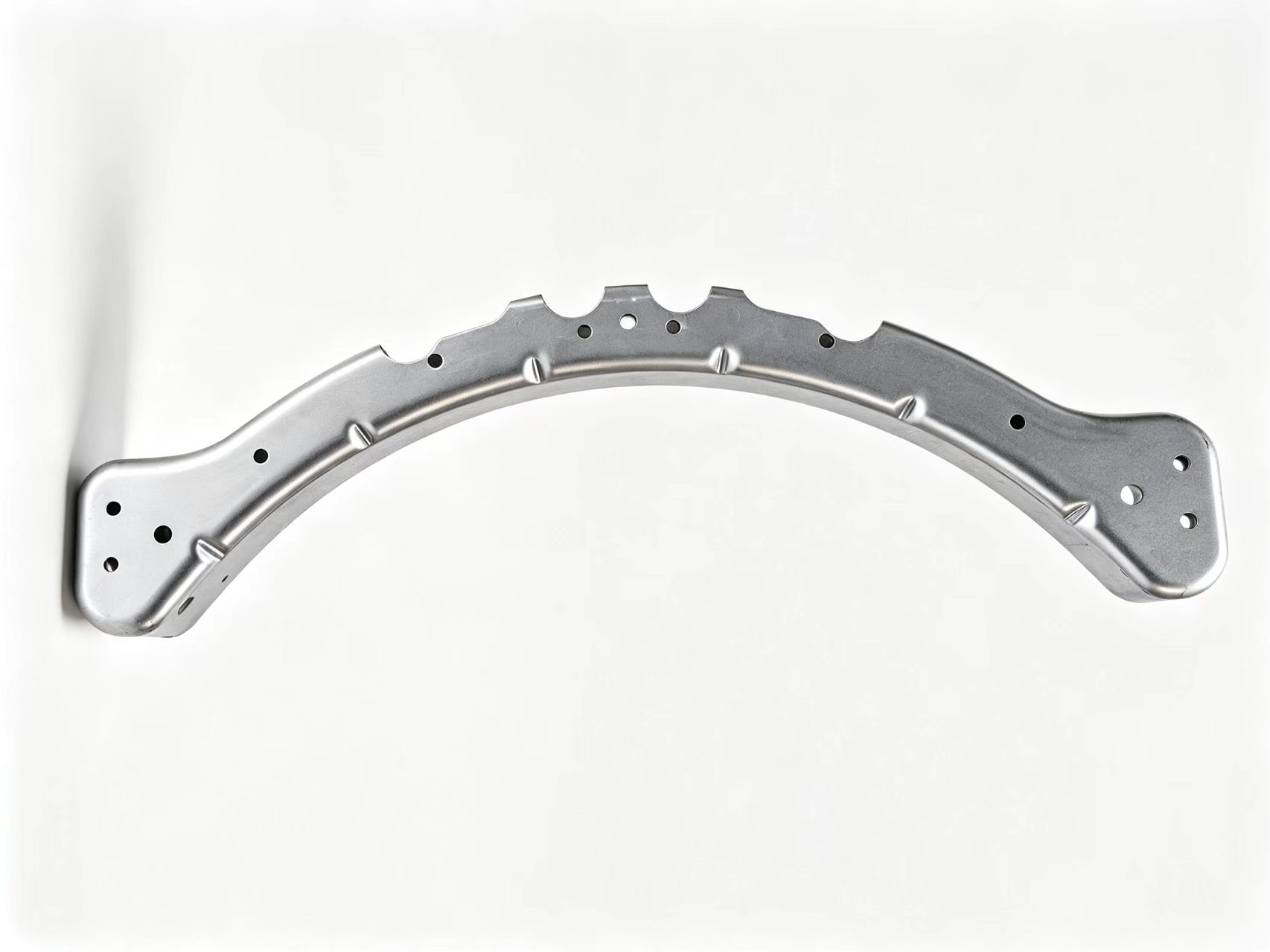

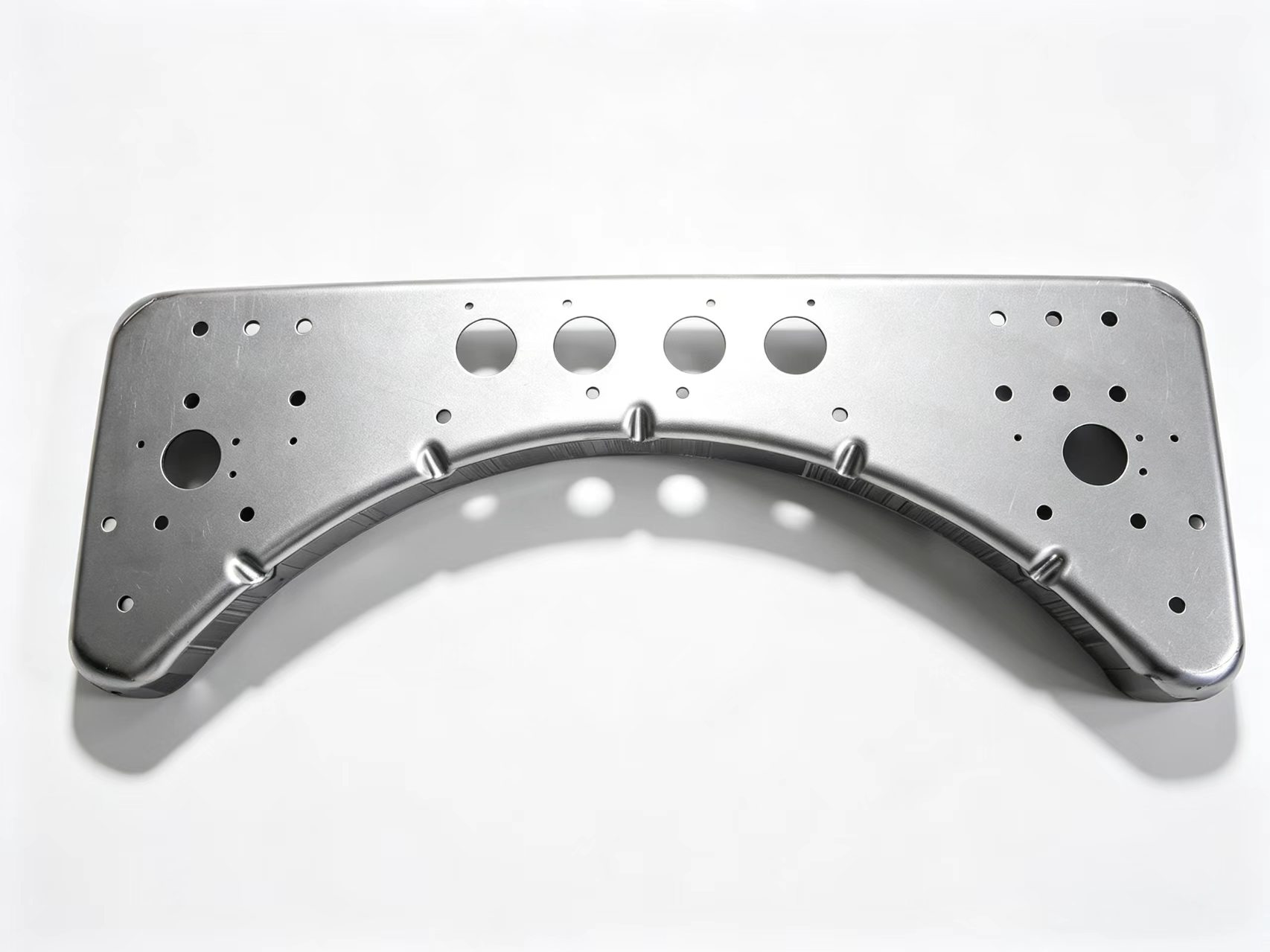

This stamped main and auxiliary saddle base plate belongs to the fifth wheel assembly for semi-trailers. It is manufactured by heavy-duty stamping forming. The plate features a curved profile and distributed multi-hole layout, which provides stable mounting and load-bearing support between the tractor and trailer.
Detail Information
The main and auxiliary saddle seat stamping part is a critical load-bearing component of the semi-trailer fifth wheel. During highway transportation, it bears alternating impact loads from the vehicle.
The workpiece is processed through heavy stamping. A thick steel plate is placed on the stamping die. Under large tonnage pressure, the plate completes bending, contour forming and hole punching in the stamping process. The curved shape is formed in one stamping operation. This forming method reduces the use of extra welding joints, improving the overall structural strength.
Multiple mounting holes are pre-punched on the plate. These holes are precisely positioned to assemble with other parts of the fifth wheel. The uniform hole layout helps spread heavy loads evenly across the base plate, lowering local stress concentration.
Different dimensions and hole patterns can be produced to match various types of semi-trailer fifth wheel assemblies.
The workpiece is processed through heavy stamping. A thick steel plate is placed on the stamping die. Under large tonnage pressure, the plate completes bending, contour forming and hole punching in the stamping process. The curved shape is formed in one stamping operation. This forming method reduces the use of extra welding joints, improving the overall structural strength.
Multiple mounting holes are pre-punched on the plate. These holes are precisely positioned to assemble with other parts of the fifth wheel. The uniform hole layout helps spread heavy loads evenly across the base plate, lowering local stress concentration.
Different dimensions and hole patterns can be produced to match various types of semi-trailer fifth wheel assemblies.
