Single Seat Globe Control Valve, ASTM A351 CF8M, 2 IN, 150 LB

Name: Single Seat Globe Control Valve, ASTM A351 CF8M, 2 IN, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our cutting-edge single-seat globe control valve, meticulously crafted in China, is engineered to excel in today's demanding industrial environments. Boasting a pneumatic actuator, it ensures seamless automation for precise fluid regulation with minimal effort. Constructed from high-grade ASTM A351 CF8M stainless steel, this valve offers exceptional durability and corrosion resistance, ensuring reliable performance even in harsh conditions.

Request a quote

Detail Information

Product Name: Single Seat Globe Control Valve
Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM A216 WCB, ASTM A216 WCC, ASTM A350 LCB, ASTM A350 LCC, ASTM A217 WC6, ASTM A217 WC9, etc.
Size: 2 Inch Inch, DN50
Pressure: Class 150 LB, PN16
Characteristics: Equal percentage, linear, quickly open
Rangeability: 30:1, 50:1, 100:1
Seat Leakage Class: ANSI B16.104: IV、V、VI
Seal Material: PTFE + graphite v-shaped packing, flexible graphite ring packing, graphite + PTFE braided packing etc.
Working Temperature: -196°C - 593°C
Nominal Size: 1/2-12 Inch, DN15-DN300
Pressure Range: Class 150-600 LB, PN16-PN100

Advantages of Single Seat Globe Pressure Control Valve:

Enhanced Durability: The hydraulic pressure control valve boasts a prolonged lifespan.

Customizable Valve Trims: Tailor the valve trims with different materials and surface hardening treatments to enhance corrosion, cavitation, and erosion resistance, thereby extending service life.

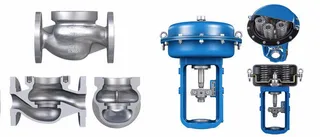

Innovative Body Design: The LN8 Single Seat Globe Valve body features dual passages, forming an "S" shape, with an elliptical section to minimize flow resistance and turbulent flow, ensuring smooth flow. Additionally, a flap in the upper passage reduces eddy flow and enhances flow capacity.
