Explosion-proof Ball Control Valve, SS 304, 2 Inch, 150 LB

Name: Explosion-proof Ball Control Valve, SS 304, 2 Inch, 150 LB
Brand: www.controlvalve.net
Price: 0.01 USD
Availability: InStock
Rating: 4 (1 reviews)

Key Specifications / Features

Our Explosion-proof Ball Control Valve Factory specializes in manufacturing high-quality Stainless Steel Ball Valves. Available in SS 304 and SS 316 materials, these 2-inch, 150 LB valves feature electric operation and flanged ends for secure connections. Equipped with EPDM or PTFE seats for reliable sealing, they are designed to meet DN50 and PN20 standards, ensuring durability and precise control in demanding industrial applications.

Stainless Steel Ball Control Valve 2 Inch Ball Control Valve Class 150 LB Ball Control Valve Explosion Proof Ball Control Valve SS 304 Ball Control Valve

Contact Supplier

Detail Information

Product Name: Explosion-proof Ball Control Valve
Material: Stainless Steel, SS 304, SS 316
Seat Material: EPDM/PTFE
Nominal Size: 2 Inch, DN50
Pressure Rating: Class 150 LB, PN20
Connection Type: Flanged
Working Temperature: EPDM: -45℃ - 80℃ / PTFE: -30℃ - 180℃
Structure Type: Floating ball core, 3way-T type, 3way-L type
Applications: Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

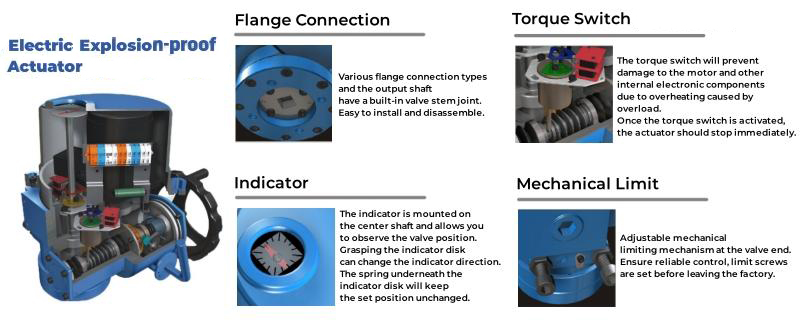

Explosion-Proof Actuator Features:

Housing: Constructed from durable aluminum alloy, undergoes anodic oxidation and polyester powder coating for superior corrosion resistance. Offers IP67, NEMA4 and 6 protection, with optional IP68 and explosion-proof types.

Motor: Fully enclosed squirrel-cage motor, compact yet powerful with low inertia force. Insulation class F, equipped with built-in thermal protection to prevent overheating.

Indicator: Mounted on central shaft for easy valve position observation. Convex lens design prevents water accumulation, ensuring clear visibility.

Limit Switch: Mechanical + electronic limit. Adjustable mechanical limit screw ensures safety and reliability. Electronic limit switch operated by cam mechanism allows precise positioning adjustment without battery support (all micro-switch contacts are silver).

Stainless Steel Ball Valve Features:

Easy Installation: Designed for self-disassembly and installation.

Anti-Corrosion: Ideal for use in corrosive environments and extreme temperatures.

Full Port: Minimizes risk of blockages or clogging.

Low Fluid Resistance: Offers minimal resistance comparable to a same-length pipe segment.

Standard: Complies with GB/ANSI/JIS/DIN standards.

Special Requirements: Customizable for high pressure, high temperature, and strong corrosion environments.
