Stainless Steel Ball Valve, 1/2-8 Inch, R-PTFE Seat
Model Number: CV 17 BV 38
Key Specifications / Features
China Stainless Steel Ball Valve Supplier Offers Stainless Steel Ball Valve: 1/2-8Inch, R-PTFE Seat, Flanged Connection, Viton O-Ring, FF DIN 3202 F4.
Detail Information
Product Name: Stainless Steel Ball Valve.
Size: 1/2 Inch to 8 Inch.
Connection: Flanged.
Face to Face: DIN 3202 F4, EN 558-1-27 Standards.
Operation: Lever, Pneumatic, etc.
Body Material: Stainless Steel (CF8M).
Ball & Stem: Stainless Steel (316).
Seats: R-PTFE (15%).
Lever: Stainless Steel (304).
Body Gasket & Stem Packing: PTFE.
O-Ring: Viton.
Fluids: Air, Oil, Steam, Water, etc.
Size: 1/2 Inch to 8 Inch.
Connection: Flanged.
Face to Face: DIN 3202 F4, EN 558-1-27 Standards.
Operation: Lever, Pneumatic, etc.
Body Material: Stainless Steel (CF8M).
Ball & Stem: Stainless Steel (316).
Seats: R-PTFE (15%).
Lever: Stainless Steel (304).
Body Gasket & Stem Packing: PTFE.
O-Ring: Viton.
Fluids: Air, Oil, Steam, Water, etc.

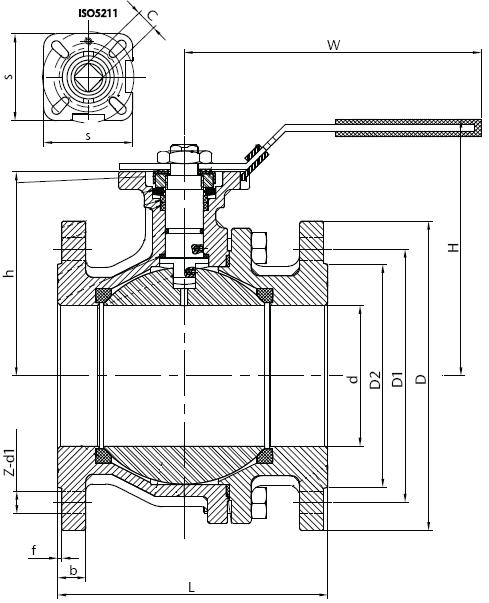

| SIZE | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | |
| d | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
| L | 115 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 | 325 | 350 | 400 | |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | |
| D2 | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 158 | 188 | 212 | 268 | |
| b | 16 | 18 | 18 | 18 | 18 | 20 | 18 | 20 | 20 | 22 | 22 | 24 | |
| f | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| H | 82 | 87 | 90 | 100 | 105 | 125 | 142 | 155 | 168 | 228 | 246 | 310 | |
| W | 120 | 120 | 160 | 160 | 200 | 200 | 255 | 255 | 300 | 600 | 600 | 800 | |
| C | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 17 | 22 | 22 | 27 | |
| ISO5211 | F03/F04 | F03/F04 | F04/F05 | F04/F05 | F05/F07 | F05/F07 | F07/F10 | F07/F10 | F07/F10 | F10/F12 | F10/F12 | F12/F14 | |
| Z-d1 | 4 x Ø14 | 4 x Ø14 | 4 x Ø14 | 4 x Ø18 | 4 x Ø18 | 4 x Ø18 | 4 x Ø18 | 8 x Ø18 | 8 x Ø18 | 8 x Ø18 | 12 x Ø22 | 12 x Ø22 | |
| h | 48 | 53 | 58.5 | 71 | 76.5 | 85 | 100 | 112.5 | 125.5 | 155 | 172.5 | 217 | |
| s | 42.6 | 42.6 | 50 | 50 | 64.5 | 64.5 | 93.6 | 93.6 | 93.6 | 114 | 114 | 131 | |
| Torque | 5 | 8 | 10 | 14 | 20 | 30 | 48 | 75 | 110 | 200 | 300 | 400 | |
| Weight Kgs | 2.91 | 3.38 | 3.73 | 4.95 | 6.1 | 8.9 | 12.8 | 18.9 | 26.6 | 48.43 | 68 | 118.17 | |
