Cast Iron A126 Class B Swing Check Valve, Flanged End
Key Specifications / Features
China Cast Iron A126 Class B Swing Check Valve Manufacturer Supplies Cast Iron A126 Class B Swing Check Valve: Flanged End, DN65-DN300, Bronze Disc.
Request a quote
Detail Information
Name: ASTM A126 Class B Swing Check Valve.
Sizes: 2.5IN-12IN(DN65-DN300).
Disc & Seat Rings: A2120-BB Bronze.
Disc Facing: Rubber.
Seat Ring: Bronze.
Valve Body: Cast Iron, ASTM A126 Class B.
Coating: Two-part Liquid Epoxy Coating.
End Connection: Flanged.
Sizes: 2.5IN-12IN(DN65-DN300).
Disc & Seat Rings: A2120-BB Bronze.
Disc Facing: Rubber.
Seat Ring: Bronze.
Valve Body: Cast Iron, ASTM A126 Class B.
Coating: Two-part Liquid Epoxy Coating.
End Connection: Flanged.

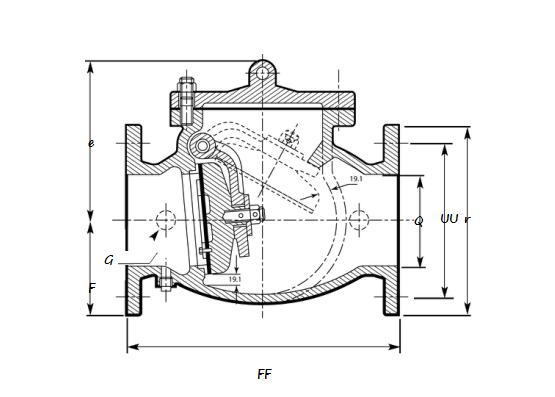

Dimensions – inches (mm)
| Valve Size | e | F | FF | G | r | UU | Q | |
| 2.5” (DN65) | 6.57 (167) | 3.50 (89) | 8.50 (216) | 1.50 (38) | 7.01 (178) | 5.51 (140) | 2.50 | (65) |
| 3” (DN80) | 7.48 (190) | 3.78 (96) | 9.50 (241) | 1.50 (38) | 7.52 (191) | 5.98 (152) | 3.00 | (80) |
| 4” (DN100) | 8.31 (211) | 4.53 (115) | 11.50 (292) | 1.50 (38) | 9.02 (229) | 7.52 (191) | 4.00 (100) | |
| 6” (DN150) | 10.59 (269) | 5.51 (140) | 14.00 (356) | 1.75 (44) | 10.98 (279) | 9.49 (241) | 6.00 (150) | |
| 8” (DN200) | 12.20 (310) | 6.77 (172) | 19.50 (495) | 1.75 (44) | 13.50 (343) | 11.77 (299) | 8.00 (200) | |
| 10” (DN250) | 13.86 (352) | 7.99 (203) | 24.50 (622) | 2.00 (53) | 15.98 (406) | 14.25 (362) | 10.00 | (250) |
| 12” (DN300) | 16.26 (413) | 9.53 (242) | 27.50 (698) | 2.00 (53) | 19.02 (483) | 17.01 (432) | 12.00 | (300) |
