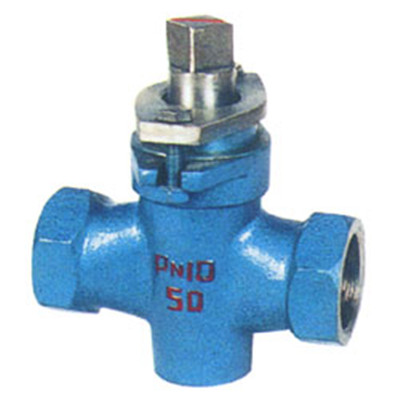

Two-way Copper Core Internal Thread Plug Valve
Key Specifications / Features
Detail Information
Two-way copper core internal thread plug valve is widely utilized in petroleum, gas, electricity, chemical industry, etc. Plug is used as close member of valve. Rotate plug to open or close valve so that can connect or cut off medium in pipelines.
Advantages:
1. Having low fluid resistance.
2. Compact structure, low volume, light weight.
3. Good sealing
4. Without limitation of flow direction.
5. Without vibration.
Performance
Nominal Pressure
Testing Pressure PS(MPa)
Applicable Medium
Working Temperature
Shell
Sealing
10
1.5
1.1
Water, steam, oil
≤100
Dimensions
Nominal Diameter DN (mm)
Pipe Thread G
Dimensions(mm)
L
□S
□S1
h2
H
15
1/2
85
30
12
26
99
20
3/4
90
36
16
34
124
25
1
110
46
18
38
133
32
11/4
130
55
18
45
152
40
11/2
150
60
26
55
212
50
2
170
75
28
74
260
65
21/2
220
90
32
82
295
80
3
250
105
36
125
327
100
4
300
140
46
135
425
Materials
Body
Plug
Packing Gland
Packing
Cast steel
Cast copper
Cast iron
Flexible graphite
PN(MPa)
(℃)
