Stainless Steel Double-lever Safety Valve, SW, Flanged

Name: Stainless Steel Double-lever Safety Valve, SW, Flanged
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Request a quote

Detail Information

Stainless steel double-lever safety valve whose temperature is less than 450℃ is widely used for boiler in power station and pressure container. The valve is utilized to stop pressure from exceeding the permitted value. It is made of stainless steel. The medium is steam, air. Stainless steel double-lever safety valve is utilized in urban construction, chemical industry, metallurgy, petroleum, pharmacy, food, etc.

Materials

Part Name	Materials
Body	Stainless steel
Guide sleeve	Stainless steel
Disc	2Cr13
Stem	2Cr13
Lever	Carbon steel
Hammer	Cast iron

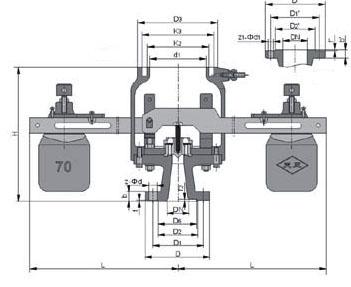

Dimensions

Nominal Diameter DN(mm)	Dimension(mm)
	Sock Welded				Flanged End
	d1	K2	K3	D3	DN	D2’	D1’	D’	b’	f’	z1-d1
80	120	145	162	190	80	210	240	280	24	3	8-23
125	120	145	162	190	125	210	240	280	24	3	8-23
150	120	145	162	190	150	210	240	280	24	3	8-23
200	200	218	253	285	200	255	280	315	22	3	8-18
