Self-operated Micro-pressure Control Valve, 150Lb
Key Specifications / Features
Detail Information
Self-operated micro-pressure control valve consists of actuator and control valve. The vale uses the pressure of medium as its power source to realize automatic control without the help of foreign energy. Accuracy of self-operated micro-pressure control valve is higher than general self-operated control valve by one time. It is suitable for the situations which need higher accuracy. It is widely utilized in chemical industry, metallurgy, petroleum, pharmacy, etc.
Nominal diameter: DN20-100mm
Nominal pressure: ANSI150Lb
Materials
|
Body |
ZG230-450, ZG1Cr18Ni9Ti , ZG1Cr18Ni12Mo2Ti |
|
Core |
1Cr18Ni12Mo2Ti, 1Cr18Ni9Ti, |
|
Seat |
1Cr18Ni12Mo2Ti, 1Cr18Ni9Ti |
|
Stem |
1Cr18Ni12Mo2Ti, 1Cr18Ni9Ti |
|
Membrane cover |
A3, 1Cr18Ni9Ti |
|
Diaphragm |
Rubber |

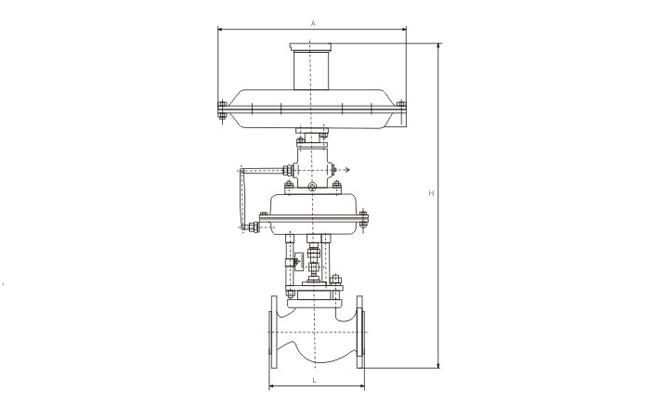

Dimensions
|
Nominal Diameter DN(mm) |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
A |
395 |
|||||||
|
H |
680 |
690 |
710 |
720 |
735 |
797 |
837 |
1050 |
|
L |
185 |
200 |
205 |
222 |
254 |
276 |
298 |
340 |
