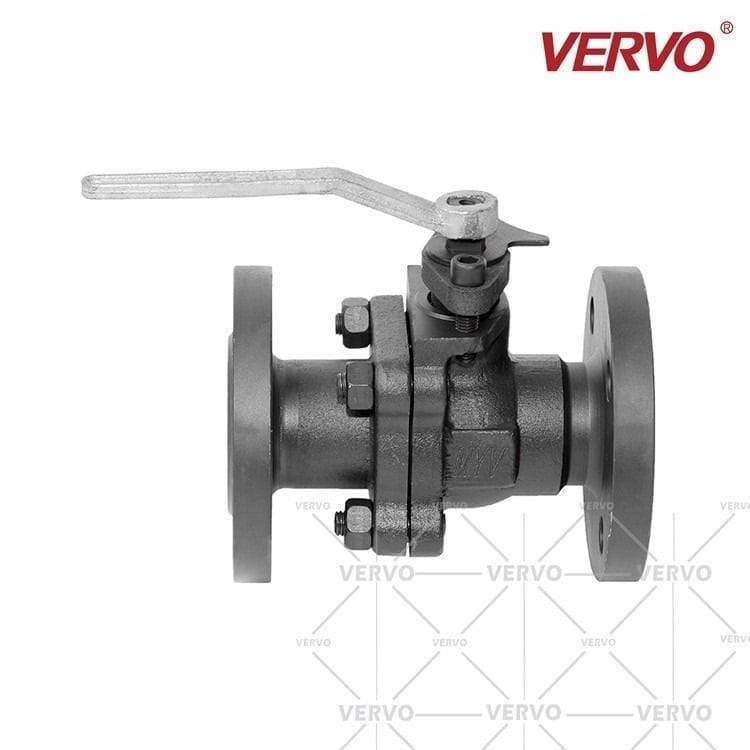

Hard Seal Floating Ball Valve, A105, JIS B2212-2214

Name: Hard Seal Floating Ball Valve, A105, JIS B2212-2214
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Request a quote

Detail Information

Hard seal floating ball valve is used for pipeline to cut off or connect medium in petroleum, metallurgy, gas, electricity, etc. Compared soft seal ball valve, hard seal floating ball valve has a wider applicable temperature range. It has long service life with less pressure losses.

Standards

Design: API 6D; JPI 7S-48

Flanged end: ANSI B16.5; JIS B2212-2214

Length: ANSI B16.10; JIS B2002

Testing & inspection: API 598

Materials

Parts

Body

A105

LF2

F304

F304L

F316

F316L

F51

Ball/stem

420

LF2

F304

F304L

F316

F316L

F51

Seal ring

Specific hardened materials

Packing/gasket

Flexible graphite

Working conditions

Applicable medium

High temperature medium or medium containing pellets

Applicable temperature

-28-400℃

Dimensions

PN2.5MPa

DN	L	D	K	d	d-L	f	C
40	165	150	110	84	4-18	2	18
50	203	165	125	99	4-18	2	20
65	222	185	145	118	4-18	2	22
80	241	200	160	132	8-18	2	24
100	305	235	190	156	8-22	2	24
125	356	270	220	184	8-26	2	26
150	394	300	250	211	8-26	2	28
200	457	360	310	274	12-26	2	30

PN4.0MPa

DN	L	D	K	d	d-L	Y	f1	f2	C
40	200	150	110	84	4-18	86	4	3	18
50	230	165	125	99	4-18	88	4	3	20
65	290	185	145	118	8-18	110	4	3	22
80	310	200	160	132	8-18	121	4	3	24
100	350	235	190	156	8-22	15	4.5	3.5	24
125	381	270	220	184	8-26	176	4.5	3.5	26
150	403	300	250	211	8-26	204	4.5	3.5	20
200	502	375	320	284	12-30	260	4.5	3.5	34

PN6.3MPa

DN	L	D	K	d	d-L	Y	f1	f2	C
40	241	170	125	84	4-22	76	4	3	26
50	292	180	135	99	4-22	88	4	3	26
65	330	205	160	118	8-22	110	4	3	26
80	356	215	170	123	8-22	121	4	3	28
100	432	250	200	156	8-26	150	4.5	3.5	30
125	508	295	240	184	8-30	176	4.5	3.5	34
150	559	345	280	211	8-33	204	4.5	3.5	36
200	660	415	345	284	12-36	260	4.5	3.5	43
