Electric Track Control Valve, WCB, Bonnet Welded

Name: Electric Track Control Valve, WCB, Bonnet Welded
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Request a quote

Detail Information

Electric track control valve is a type control valve whose rotating angle is 90 degree, consisting of electric actuator and track ball valve, having excellent sealing. The valve is suitable for position requiring strict sealing and large flowing. Electric track control valve is widely used in chemical industry, petroleum, paper making, oil refining, etc. Besides gas, liquid, stem, the valve also can control sewage and medium having fiber.

Nominal diameter: DN50-200mm

Nominal pressure: PN10-64MPa

Materials

Part Name	Materials
Body/bonnet	WCB, ZG230-450, ZG1Cr18Ni9Ti, ZG1Cr17Ni12Mo2
Ball	1Cr18Ni9Ti, OCr18Ni12Mo2Ti
Seat	1Cr18Ni9Ti, OCr18Ni12Mo2Ti
Stem	1Cr18Ni9Ti, OCr18Ni12Mo2Ti
Packing	PTFE, flexible graphite

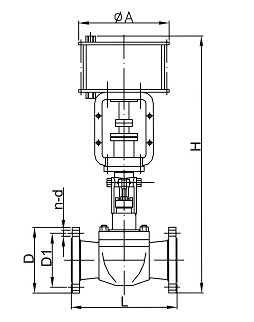

Dimensions

Flanged End					Bonnet Welded
Nominal Diameter DN(mm)	Nominal Pressure PN(MPa)	D	D1	H		Nominal Pressure PN(MPa)	D	D1	H
50	32	229	640	580		10	292	640	610
	32	241	820	610		17	292	640	610
	10	292	640	610		25	292	640	610
65	17	292	640	610		10	330	640	670
	25	292	640	610		17	330	640	670
	32	292	820	660		25	330	640	670
80	10	330	640	670		10	356	640	730
	17	330	640	670		17	356	820	730
	25	330	640	670		25	356	450	690
100	10	356	640	730		10	350	640	750
	17	356	640	730		17	350	640	770
	25	356	820	750		25	350	640	770
	25	350	450	750		25	350	640	770
	25	350	640	770		25	432	640	790
	32	350	640	770		32	432	820	810
	64	350	640	770		64	432	820	750
150	10	432	640	790		10	480	640	860
	17	432	820	810		17	480	640	860
	25	432	820	820		25	480	640	860
	32	480	640	860		32	480	640	860
	64	480	640	860		64	559	820	900
200	10	480	640	860		10	600	640	920
	17	480	640	860		17	600	640	920
	25	600	640	920		25	600	640	920
	32	600	640	920		32	600	640	920
