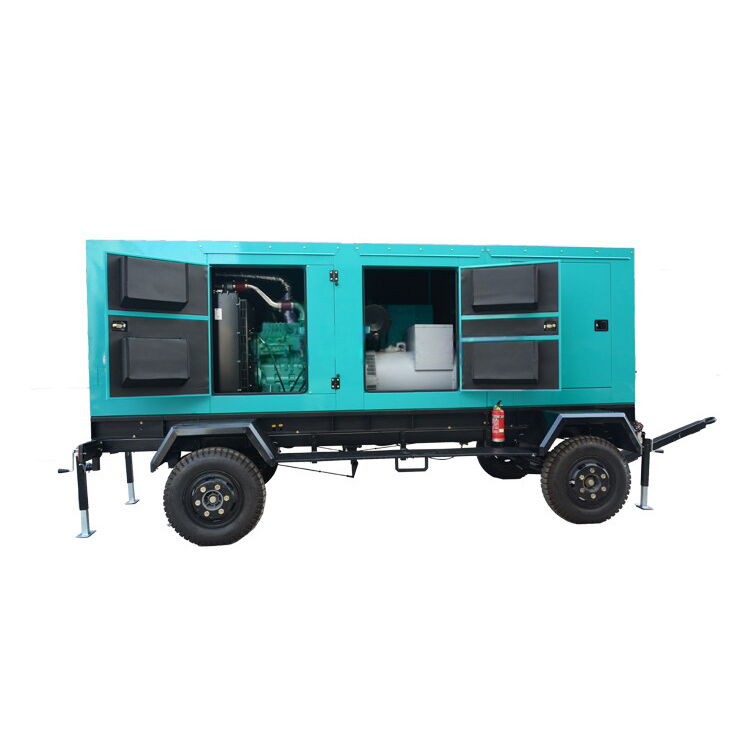

50kW Diesel Generator Set, Cummins 4BTA3.9G2, 60 Hz, Trailer
Key Specifications / Features
Detail Information
Product Name: Cummins 50kW Diesel Generator Set, Trailer Mounted
Fuel Type: Diesel
Engine: Cummins 4BTA3.9G2
Alternator: Stamford UCI224D
Frequency: 60 Hz
Rated Power: 50kW, 63kVA
Maximum Power: 55kW, 69kVA
Rated Voltage: 220/127 V
Rated Current: 164.0 A
Dimension (Trailer Type): 2420 x 1050 x 2300 mm
Weight: 1900 kg
Cummins Diesel Engine Specifications
|
Brand |
Cummins |
|
Model |
4BTA3.9G2 |
|
Cylinders |
4 Cylinders, Inline |
|
Aspiration |
Turbocharged & Aftercooled |
|
Governor Type |
Electric |
|
Max. Output Power |
66 kW |
|
Displacement |
3.9 L |
|
Starting Voltage |
24 V |
|
Bore x Stroke |
102 mm x 120 mm |
|
Lubrication Oil Capacity |
11 L |
Stamford Alternator Specifications
|
Brand |
Stamford |
|
Model |
UCI224D |
|
Rated Output |
65kVA |
|
Frequency |
60 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
Class H |
|
Voltage Regulation |
AVR Model SX460 |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte, Brushless |
Key Features of Trailer Generator
- Double Axle Trailer for smooth and safe transportation.
- Weatherproof or Soundproof Canopy for outdoor and low-noise operation.
- Built-in Fuel Tank for over 10 hours of continuous operation.
- Wide Capacity Range: 8 kVA to 688 kVA with engines from Cummins, Perkins, Deutz (Germany), and Volvo (Sweden).
- Cooling Options: Water-cooled or air-cooled (Deutz engine models 23kVA to 55kVA only).
Advanced Control Panel Features
- Automatic Start Control Panel for auto start/stop, data measurement, and alarms.
- Battery Charger (208-240V input range).
- On/Off Switch for simple operation.
- Emergency Stop Button for safety.
Applications
- Construction Sites
- Outdoor Events and Venues
- Disaster Relief and Emergency Backup
- Industrial Maintenance and Field Operations
